16
C
A
B
D
E

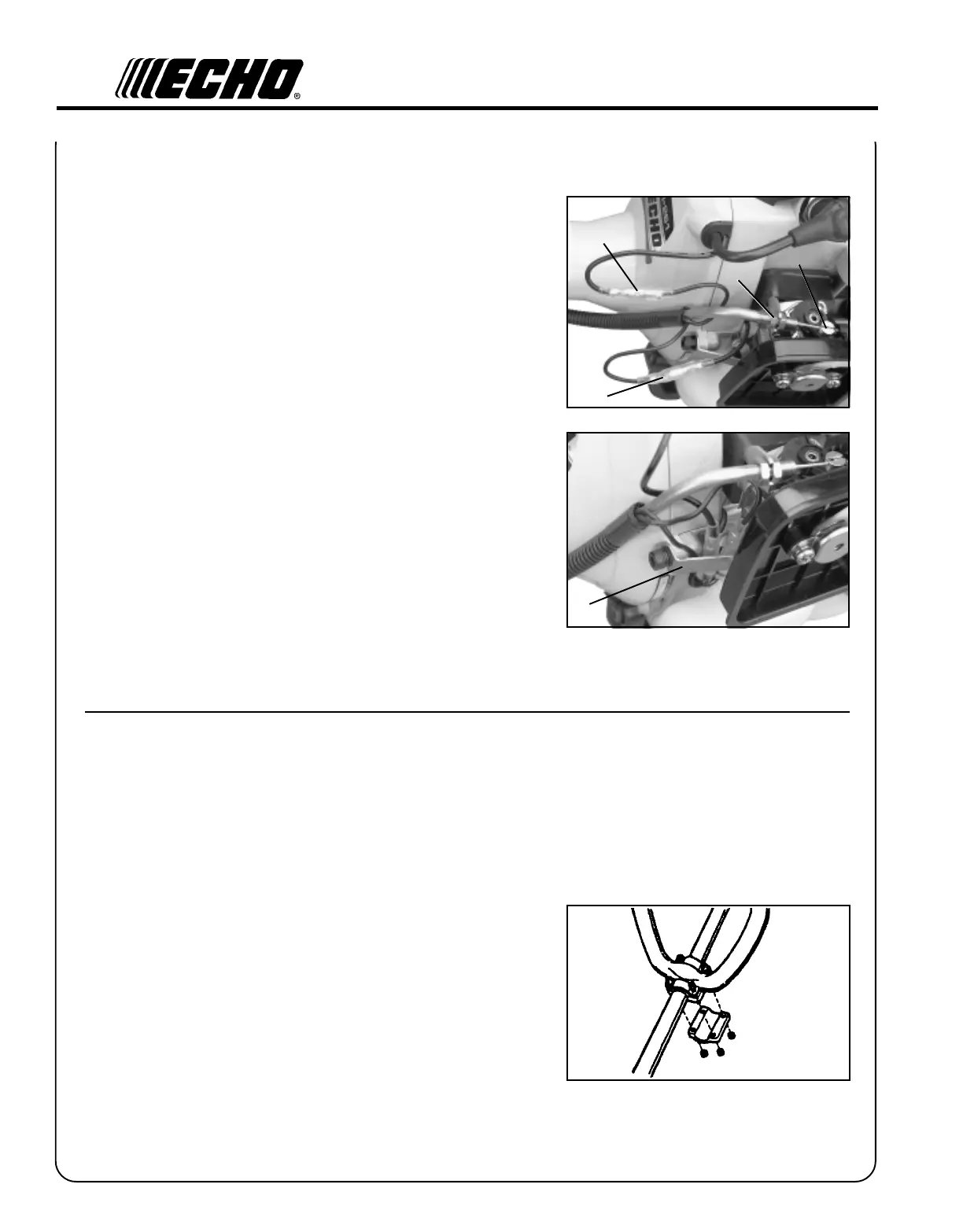

THROTTLE LINKAGE AND IGNITION LEADS
PE-260
1. Close choke and remove air filter cover.
2. Loosen nut (A) and place threaded end of throttle linkage in
bracket slot. Finger tighten nut (A).
3. Place inner cable in slot of carburetor swivel (B) and tighten nut
(A).
4. Check throttle for freedom of movement and that wide open
throttle / low idle extremes are adjusted properly. If adjustment
cannot be achieved with adjusting nuts, consult with your Echo
Dealer for correct adjustment procedure.
5. Connect ignition stop leads (C) and (D).
6. Bundle and secure ignition leads against engine housing with clip
(E).
7. Install air filter and cover.
FRONT HANDLE
Tools Required: Cross-Head Screwdriver
1. Assemble front handle and bracket loosely to drive shaft.
2. Position front handle in comfortable operating position and tighten
screws.
