Guide Bar Cover Cleaning

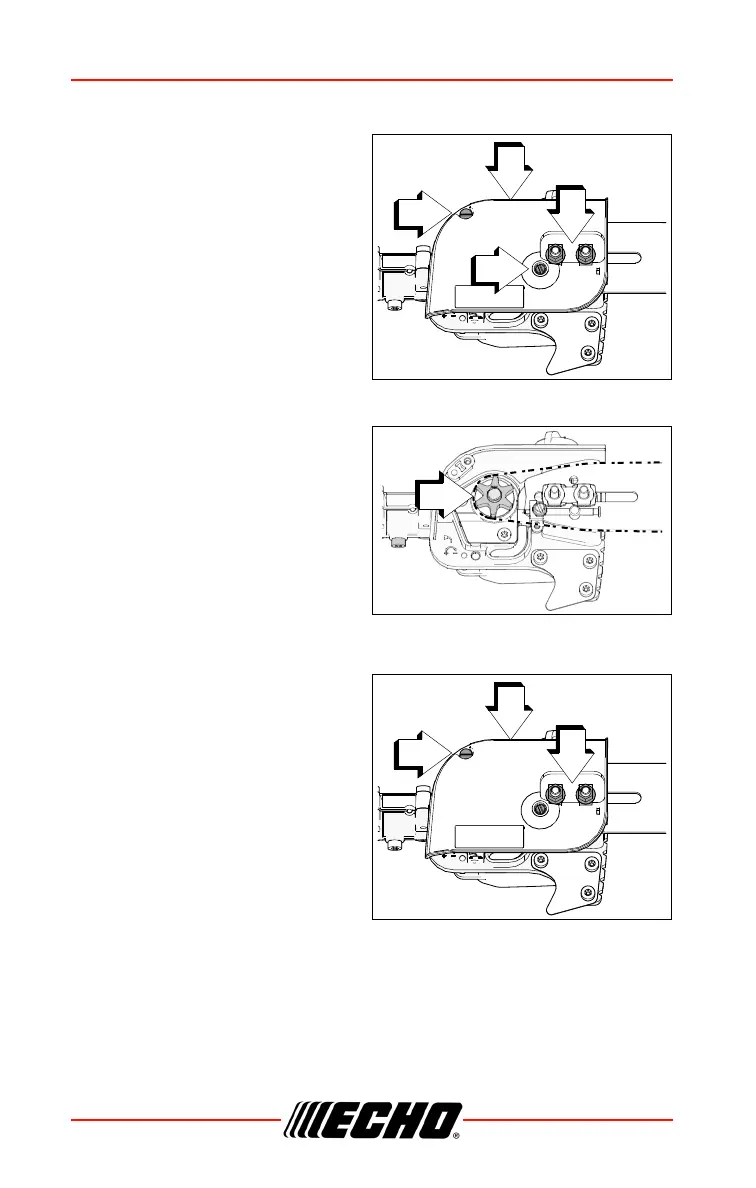

1. Remove two guide bar nuts (A)
and guide bar cover screw (B).
2. Remove guide bar cover (D).
3. Gently brush debris from inside
guide bar cover and from
around sprocket.
4. Hold the bar nose up. Install
guide bar cover (D). Install the
guide bar nuts (A). Tighten the
rear nut first, then tighten the
front nut. Install and tighten the
guide bar cover screw (B)
AB
C
D
AB
D
