7. Properly filed cutter is as
shown.
8. Apply clean oil and rotate
saw chain slowly to wash
away filings.
9. If saw chain is coated or
clogged with resin, clean in
kerosene, then soak in oil.

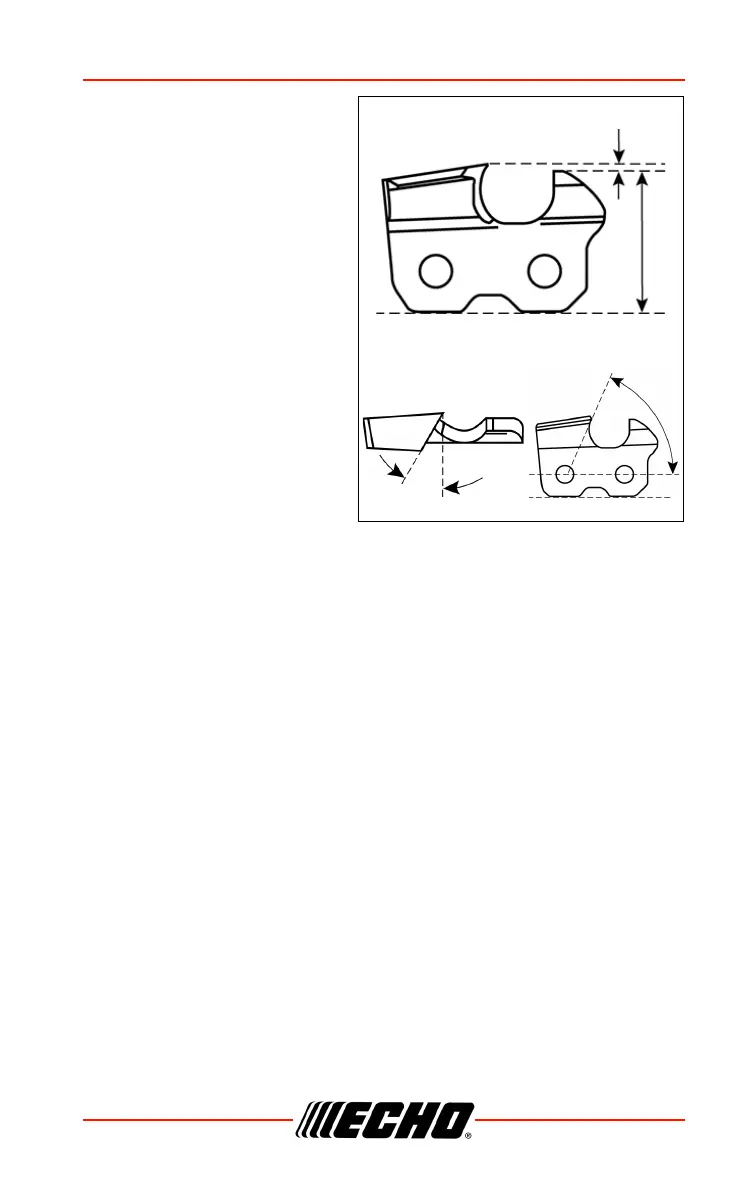

55°
Side plate angle
30°
Top plate filing angle
0.64 mm (0.025 in.)
Parallel
Depth gauge
