14 X7722274905
© 11/2015 ECHO Inc.
ASSEMBLY PAS-225
ASSEMBLY

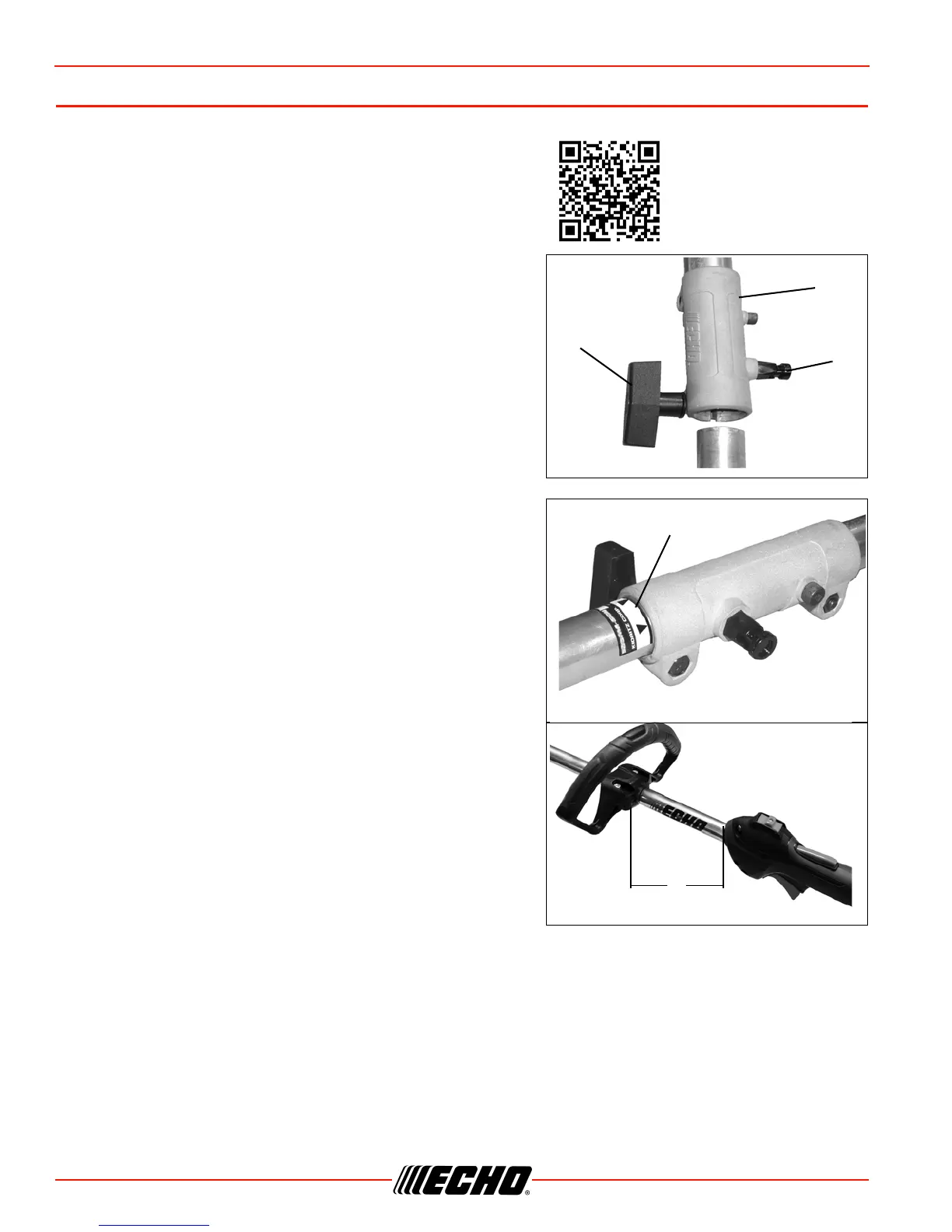

Power Head Shaft/Lower Shaft Assembly
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locator pin (A) out, and turn counterclockwise 1/4 turn to
lock-out position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
5. Carefully fit attachment drive shaft assembly into coupler (B)
to decal assembly line (C), making sure that the inner lower
drive shaft engages the square upper drive shaft socket.
Note: Lower bearing housing and head assembly must be in
line with the engine.
6. Rotate locator pin (A) 1/4 turn clockwise to engage lower
shaft hole. Insure locator pin is fully engaged by twisting
lower drive shaft. Locator pin should snap flush in coupler.
Full engagement will prevent further shaft rotation.
7. Secure lower shaft assembly to coupler by tightening
clamping knob (D).
Support Handle Installation
Note: Label shows minimum spacing for support handle
location.
1. If necessary, position support handle for comfortable
operation and securely tighten screws.
Parts Required: PAS Attachment
For more information
scan this QR code.
