Echo Pro Attachment Series PAS-225 - Drive Shaft Lubrication

PAS-225 MAINTENANCE
© 11/2015 ECHO Inc.
X7722274905 25

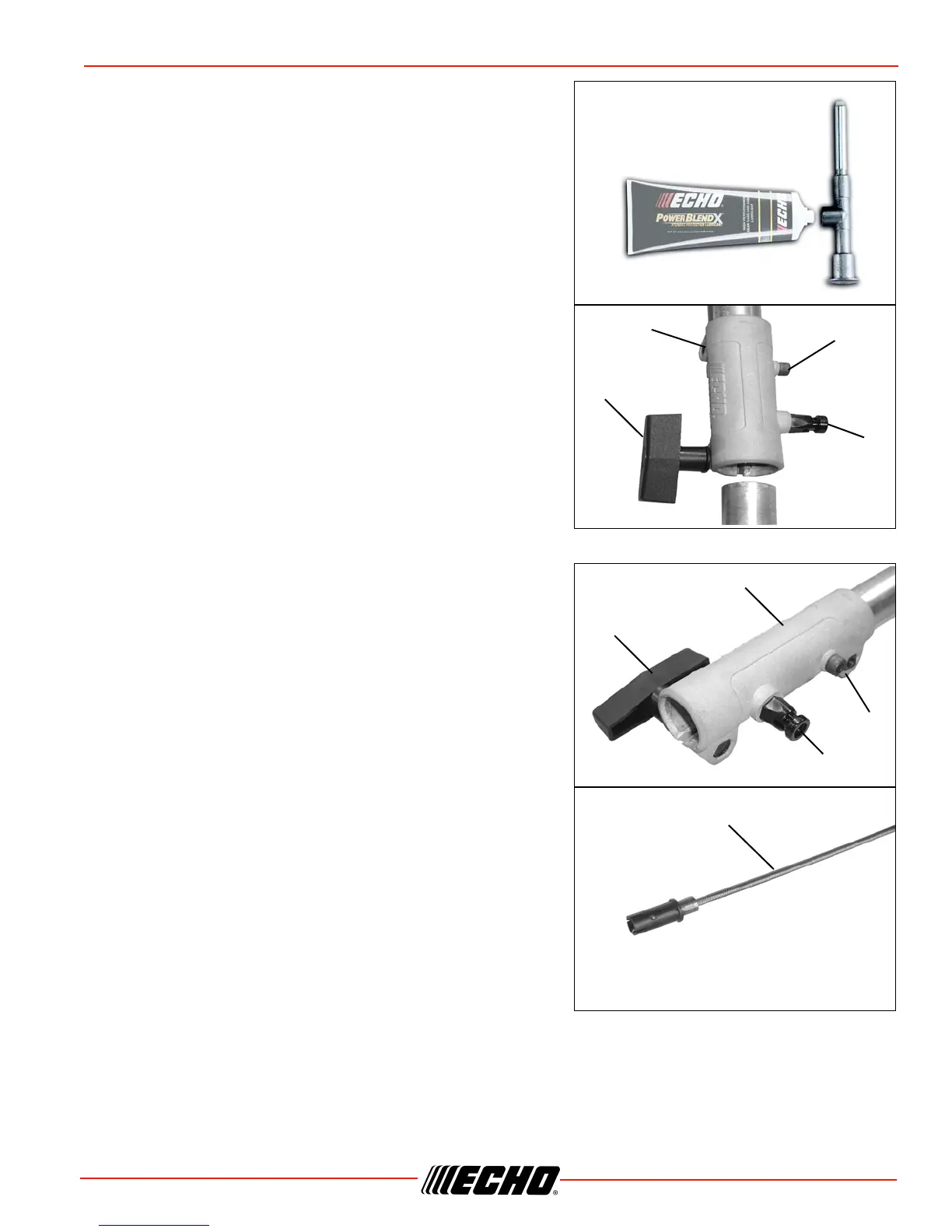

Lubrication
Level 1.
Drive Shaft Upper
1. Loosen clamping knob (A).
2. Pull locator pin (B) and rotate 1/4 turn counterclockwise to
lockout position.
3. Remove attachment.
4. Remove coupler (E) from upper drive shaft assembly by
loosening clamping screw (C) and removing set screw (D).
5. Remove upper flex cable (F), wipe clean, and apply a thin
coating of 15ml (1/2 oz.) of grease.
6. Install cable. Make sure that the flex cable fully engages into
the clutch square drive socket.
7. Slide coupler on upper drive shaft until fully seated, and
align set screw hole in coupling with hole in upper drive
shaft.
8. Install and tighten set screw (D), and tighten clamping screw
(C).
Parts Required: Lithium Based Grease.
A
C
D
B
A
E
D
B
F
