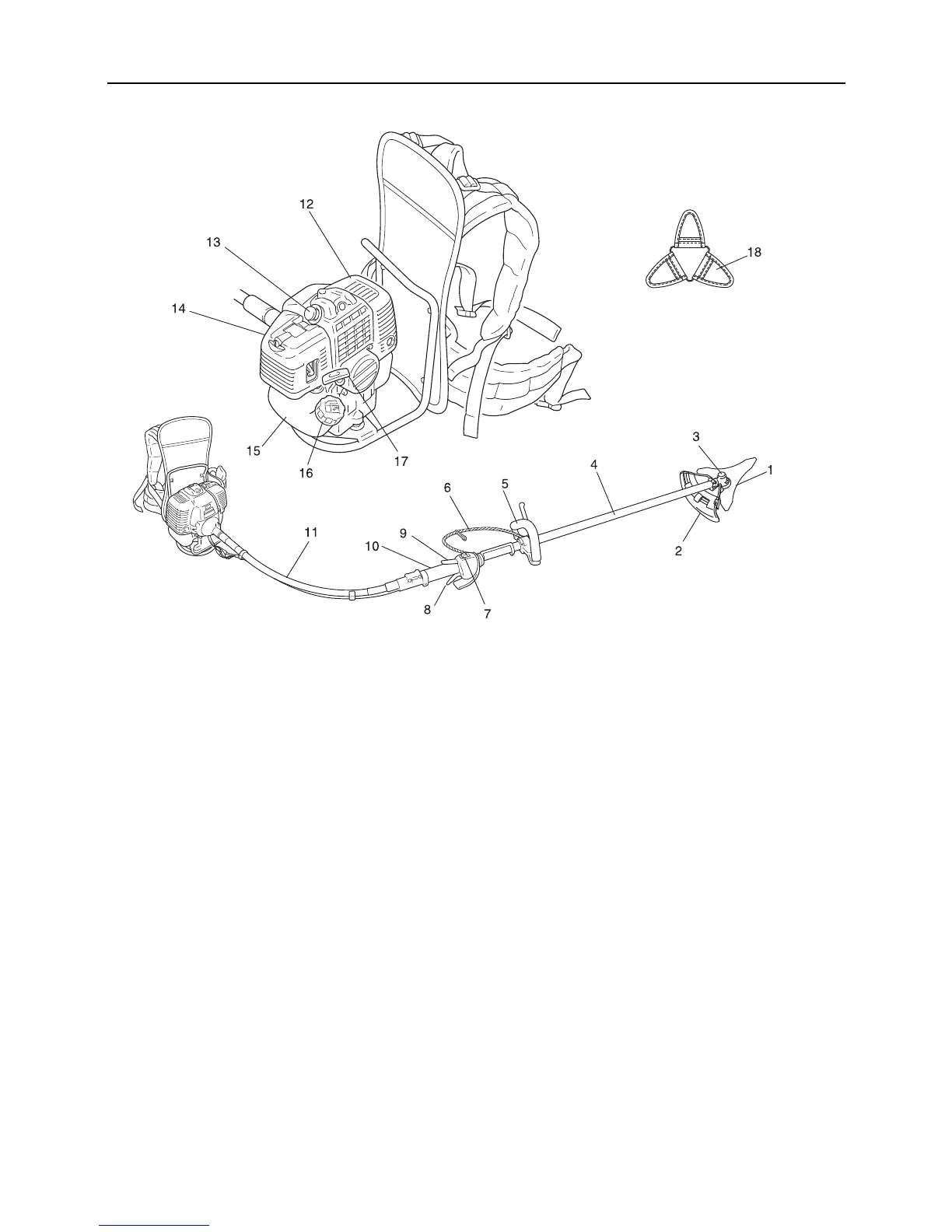

1. Cutting attachment 3 cutter blade for cutting grass, gar-
den debris and weeds.
2. Shield Device to protect the operator from accidental
contact with the cutting head and thrown objects.
3. Angle transmission Having two gears to change to an-
gle of rotating axis.
4. Shaft tube Part of the unit that provides a casing for pow-
er transmission shaft.
5. Front handle Handle located towards the cutting device.
6. Strap Rubber strap to hang power transmission shaft.
7. Ignition switch "Slide switch" mounted on top of the
throttle trigger housing, move switch upward to RUN,
downward to STOP position.
8. Throttle trigger Activated by the operator's finger for con-
trolling the engine speed.
9. Throttle trigger lockout Locks throttle trigger in the idling
position until you have a proper grip with your right hand
around the handle.
10. Rear handle Handle located towards the knapsack pow-
er unit.
11. Flexible shaft assembley Flexible tube for the power
transmission shaft.
12. Silencer cover Cover the silencer not to make operator
touch to hot surface of silencer.
13. Spark plug
14. Air cleaner cover Covers air filter.
15. Fuel tank Contains fuel and fuel filter.
16. Fuel tank cap For closing the fuel tank.
17. Starter handle Pull handle to start the engine.
18. Blade cover When transporting the unit, use the appro-
priate metal blade cover.
