Maintenance and care

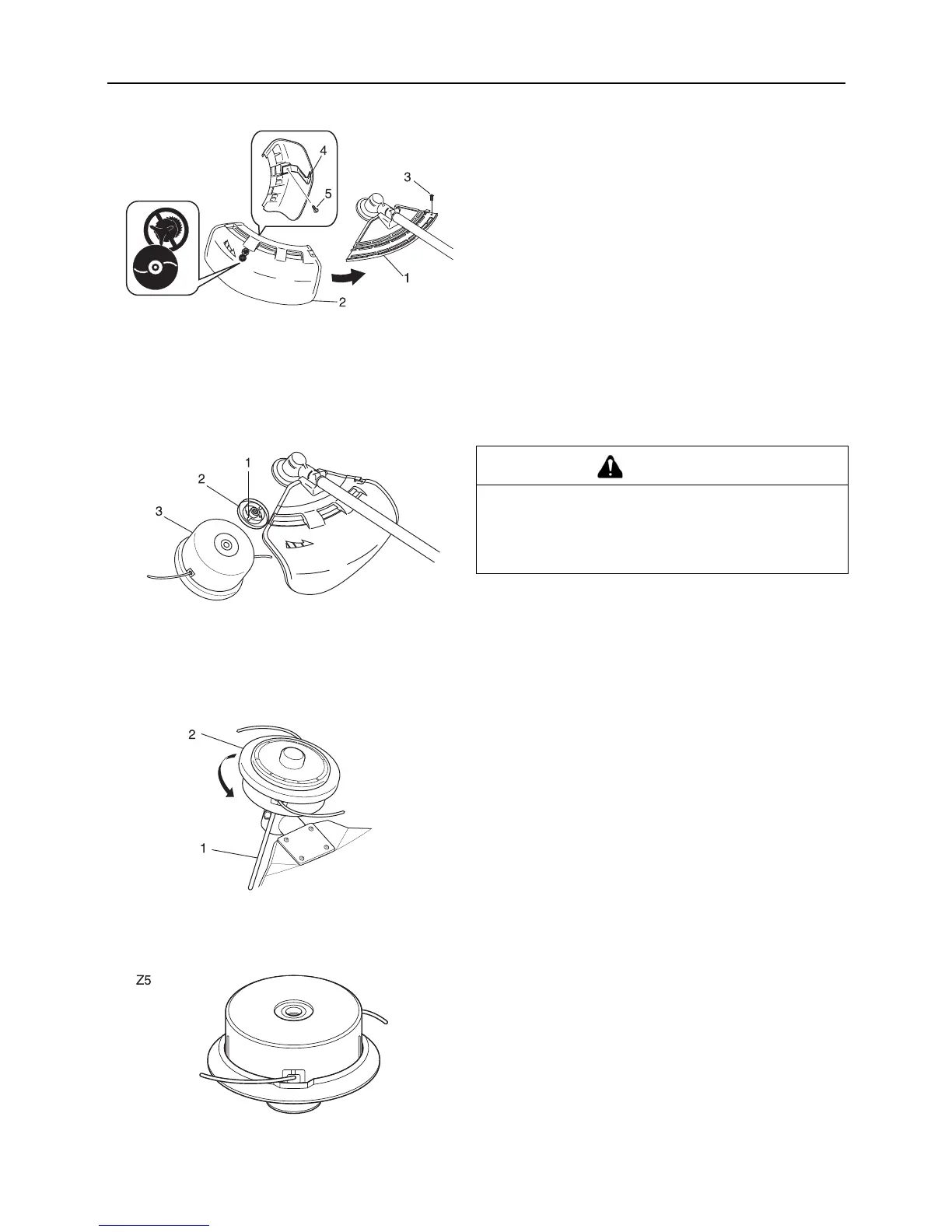

Installing nylon line cutter (option)
Method to change shield
Remove bolt (M5×18) on the right side of the shield and slide the
shield to the left and remove it. Put shield of another type into
groove and slide it to the right until it stops and be sure to fasten
with the removed bolt (M5×18).
Installing nylon line cutting head
Insert locking tool into a hole located on the right side of angle
transmission while forcing retainer spring to the left side. Insert
locking tool further into blade retainer fixing slot to fix output shaft.
Thread nylon line cutting head onto shaft (anticlockwise) until it is
tight.
Remove locking tool.
Nylon line cutting head
Type: Z5
Thread: Left-hand thread M10×1.25 pitch
1. Bracket
2. Shield (for nylon line
cutting head)
3. Bolt M5×18
4. Cut off knife
5. Screw 5×12
1. Blade retainer fixing slot
2. Blade retainer
3. Nylon line cutting head
CAUTION
Use only flexible, non-metallic line recommended by
KIORITZ CORPORATION.
Fasten output shaft using locking tool securely in order
to avoid the possibility of output shaft rotating when
mounting nylon line cutting head.
1. Locking tool 2. Nylon line cutting head
