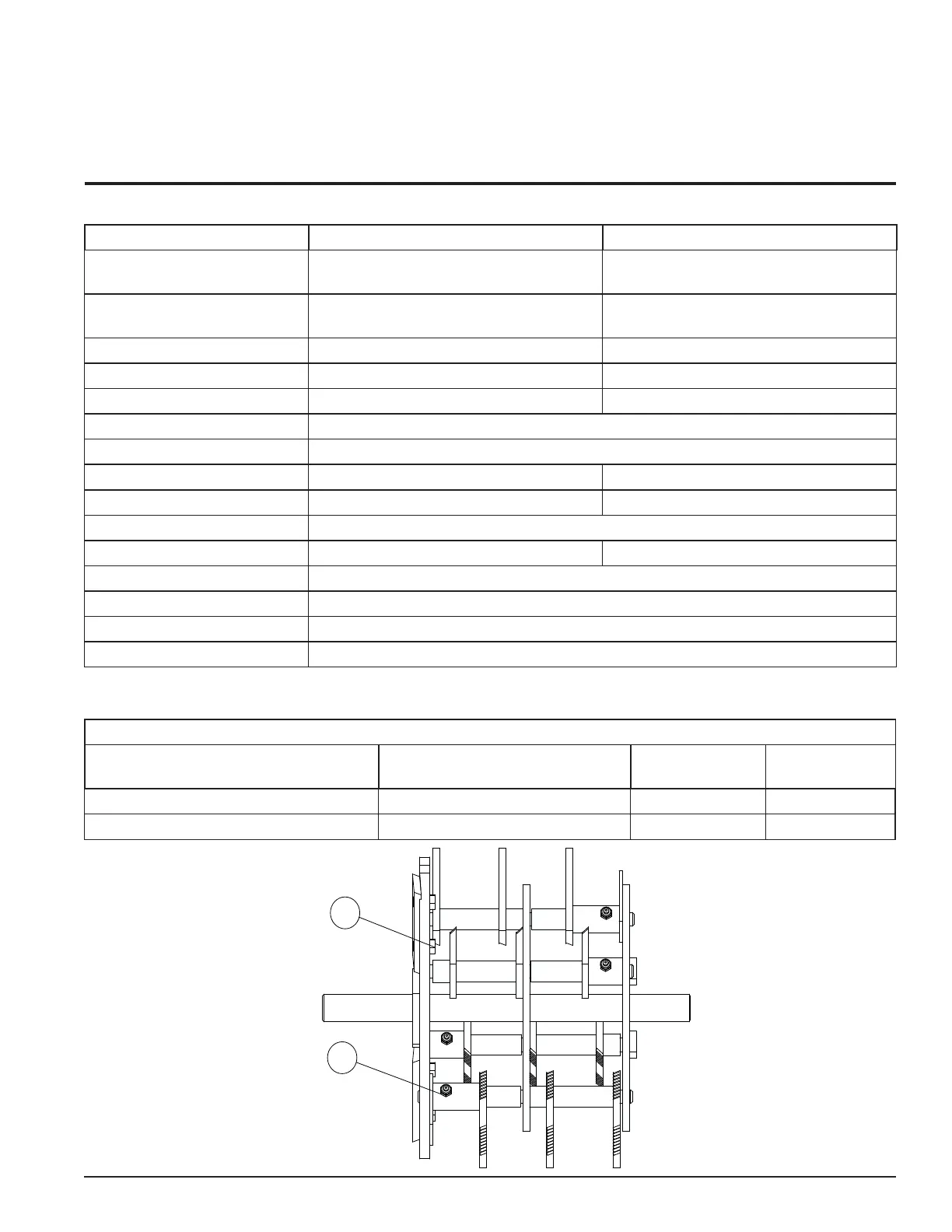

233 INCH CHIPPER/SHREDDER
Section
7 SPECIFICATIONS
SPECIAL TORQUE REQUIREMENTS
LOCATION HARDWARE DESCRIPTION
TORQUE
(UNIFIED INCH)
TORQUE
(METRIC)
A – On rotor plate, blade mounting bolts 5/16 × 1" hex HD, grade 8 bolts 25 ft-lbs. 34 Nm
B – On rotor knife shafts 10-24 × 1-1/8" screw 36 in-lbs. 4 Nm
A
B
DESCRIPTION ENGLISH METRIC
Machine Dimensions
(L×W×H)
44" × 25" × 46" 112 cm × 64 cm × 117 cm
Weight 233 lbs. 106 kg
Maximum Chipper Capacity 3" diameter 7.6 cm diameter
Chipper Blades 2 reversible (3.125" × 2" × 0.25") 2 reversible (7.9 cm × 5.1 cm × 0.64 cm)
Maximum Shredder Capacity 0.75" 1.9 cm
Shredder Knives 12
Rotor Speed 3600 RPM
Rotor Size 11" diameter 27.9 cm diameter
Rotor Weight 27 lbs. 12.3 kg
Drive Type Belt
Tires 410/350 4" (foam-filled) 410/350 10.2 cm (foam-filled)
Engine Briggs & Stratton
®
XR Professional Series™ 306cc
Fuel Tank Capacity 3.2 quarts (0.8 gallons)
Starter Recoil
Spark Arrester Equipped* No
,IDVSDUNDUUHVWHULVUHTXLUHGLWPXVWPHHWWKHVSHFL¿FDWLRQVDQGSHUIRUPDQFHUHTXLUHPHQWVRIORFDOVWDWHDQGIHGHUDO
laws and regulations. A spark arrester is available from authorized servicing dealers.
