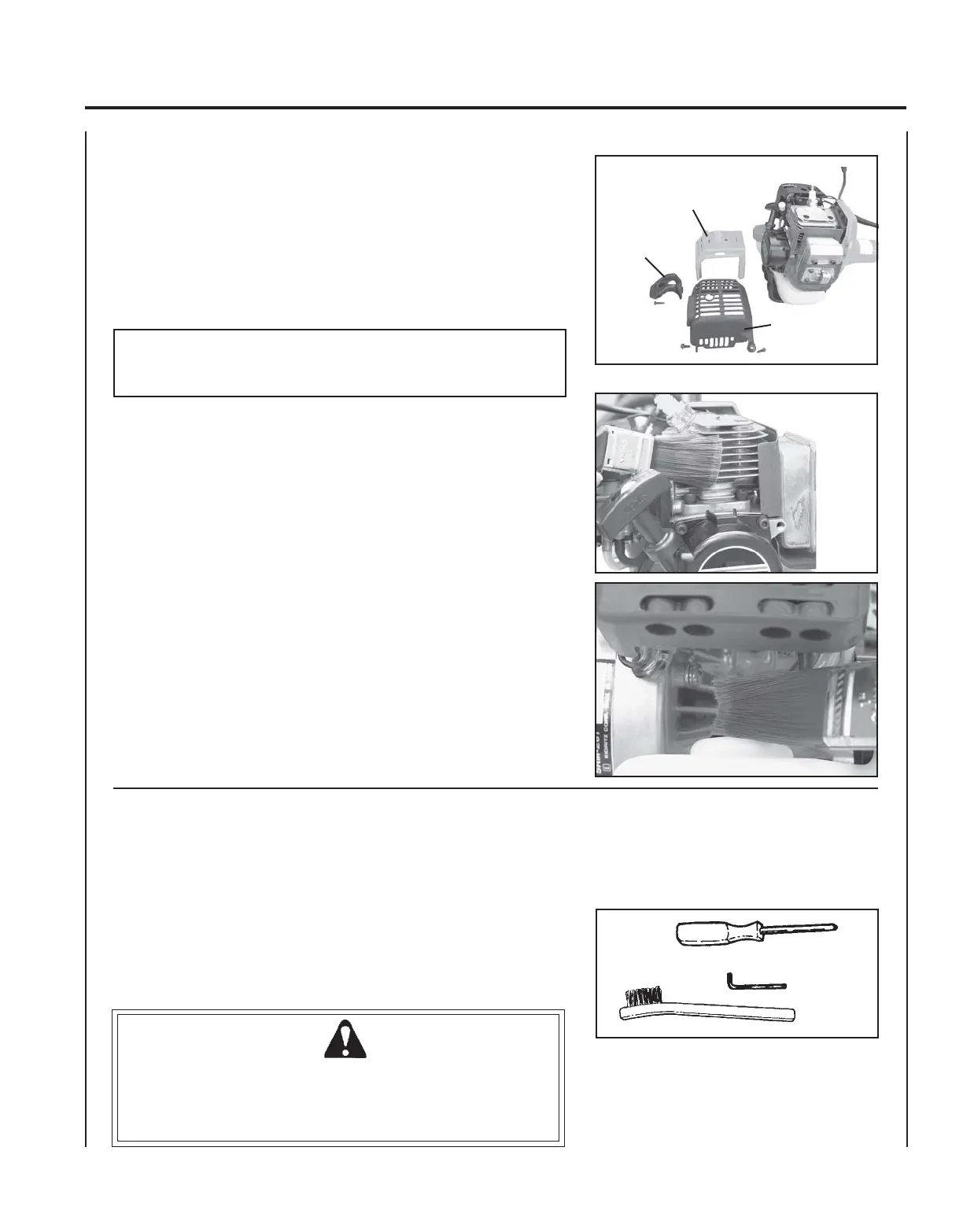

1. Remove spark plug lead.
2. Remove two (2) muffler cover screws and muffler cover (A).
3. Remove screw and arm rest (B).
4. Remove engine cover (C).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
5. Use brush to remove dirt from the cylinder fins.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
EXHAUST SYSTEM
Spark Arrester Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft Metal Brush, 4 mm Hex
Wrench
Parts Required: Spark Arrestor Screen P/N 14586251030.
WARNING DANGER
Catalytic mufflers operate at extremely high temperatures. Muffler
area must be kept clean. Do not perform maintenance on the muffler
until engine and muffler are completely cool, otherwise serious
personal injury may occur.
A
B
C
