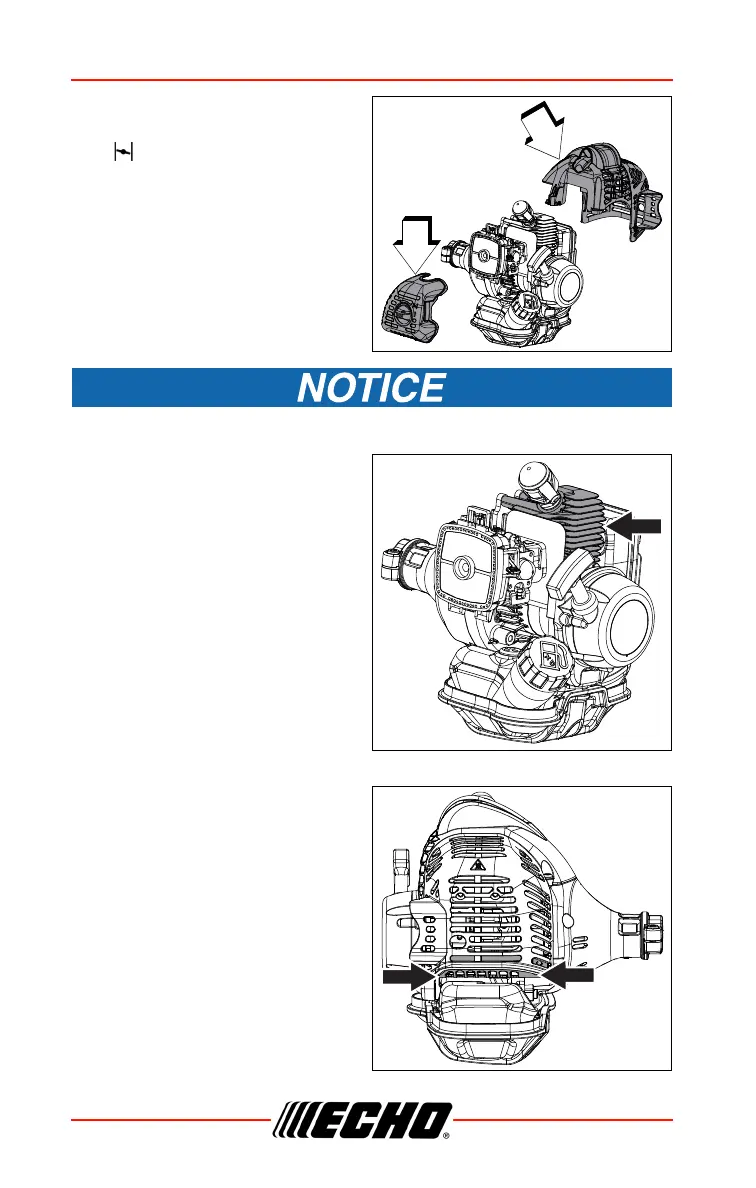

1. Remove spark plug lead.
2. Close choke (COLD START
[ ] position). This prevents dirt
from entering the carburetor
throat when the air filter is
removed. Remove air cleaner
cover (A).
3. Remove engine cover (B).
DO NOT use a metal scraper to remove dirt from the cylinder fins.
4. Use a plastic or nylon bristle
brush to remove dirt from the
cylinder fins.
5. Remove ignition wires from clip
for cleaning.
6. Remove grass and leaves from
the grid between the recoil
starter and fuel tank.
7. Assemble components in
reverse order.
