SRM-2620T MAINTENANCE
X7502341801 39
© 03/2019 ECHO Inc.
Lubrication
Level 1.
Parts Required: Lithium Based Grease.

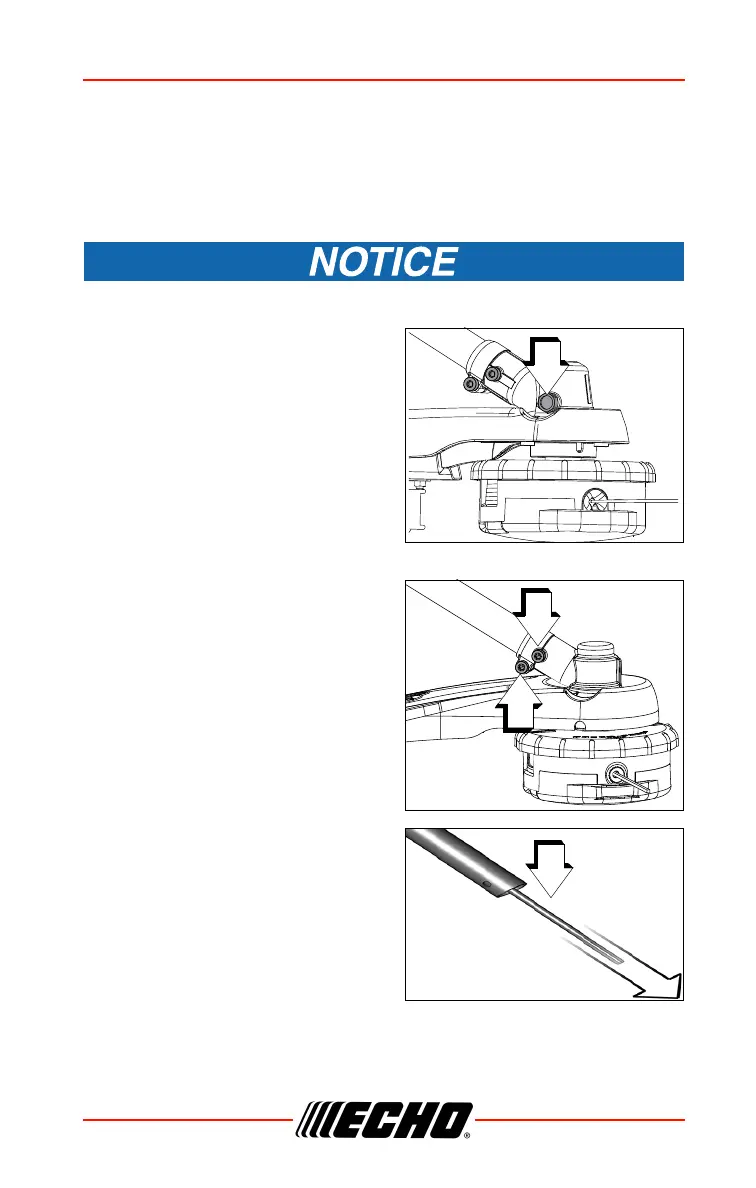

Gear Case
Gear cases without grease plug (A) do not require lubrication.
1. Clean all loose debris from gear
case.
2. Remove plug (A) and check level
of grease.
3. Add grease if necessary. DO NOT
over-fill.
Drive Shaft
1. Loosen screw (B) and remove
locating screw (C). Pull gear case
and shield from drive shaft
housing.
2. Pull flexible cable (D) from the
drive shaft housing, wipe clean
and re-coat with 15 ml (0.5 oz.) of
grease.
3. Slide the flexible cable (D) back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield
assembly.
