Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
®
head disassembly is not
necessary. However, if circumstances require disassembly,
follow these instructions.

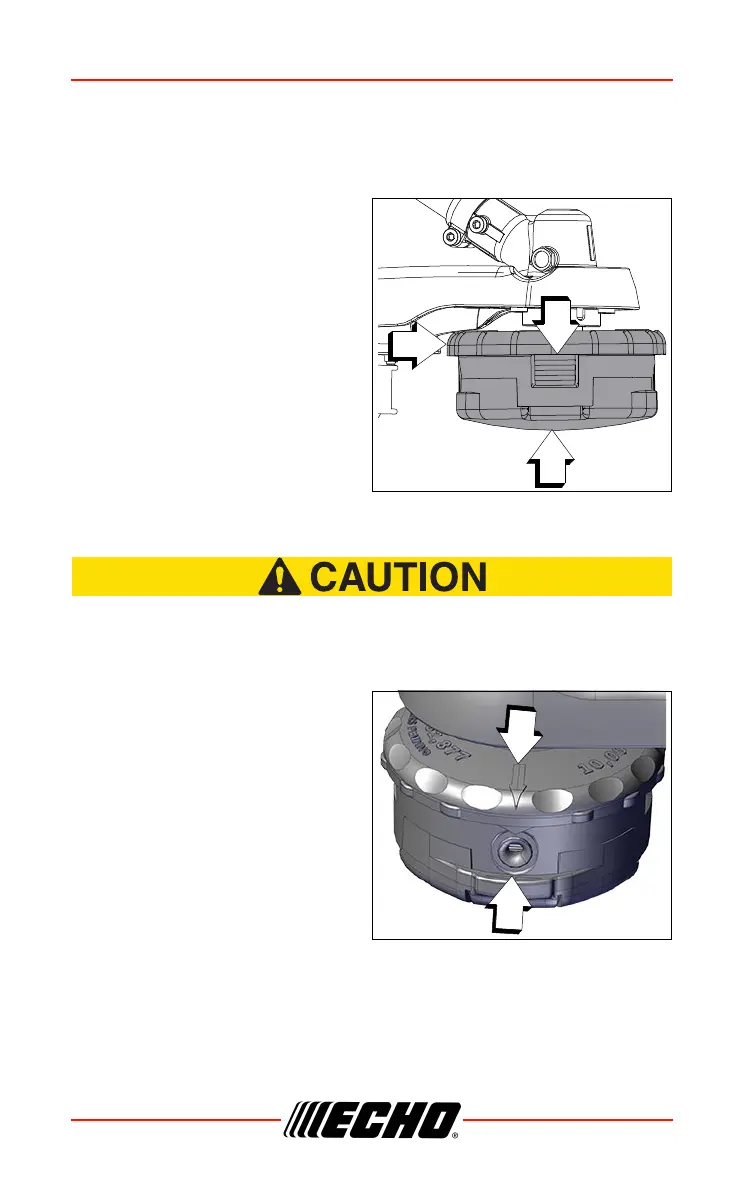

1. Press top of locking tabs (A) on
both sides of Speed Feed
®
head to release cover (B) from
eyelet carrier (C).
2. Remove cover from eyelet
carrier.
Nylon Line Replacement
Wear gloves or personal injury may result:
◆ Cutoff knife is sharp.
◆ Gearcase and surrounding area may be hot.
1. Cut one piece of line to
recommended length.
2.0 mm (0.080 in.) diameter
6 m (20 ft.).
2.4 mm (0.095 in.) diameter
6 m (20 ft.).
2. Align arrows on top of knob with
openings in eyelets.
B
A
C
