DESCRIPTION SRM-2620U
16 X7502341900
© 10/2016 ECHO Inc.
1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition
System and Recoil Starter.
2. THROTTLE TRIGGER LOCKOUT - This lever must be held during
starting. Operation of the throttle trigger is prevented unless throttle
trigger lockout lever is engaged.
3. STOP SWITCH - “SLIDE SWITCH” mounted on top of the Throttle
Handle. Move switch FORWARD to RUN, BACK to STOP.
4. THROTTLE TRIGGER - Controls engine speed. Spring loaded to
return to idle when released. During acceleration, press trigger
gradually for best operating technique.

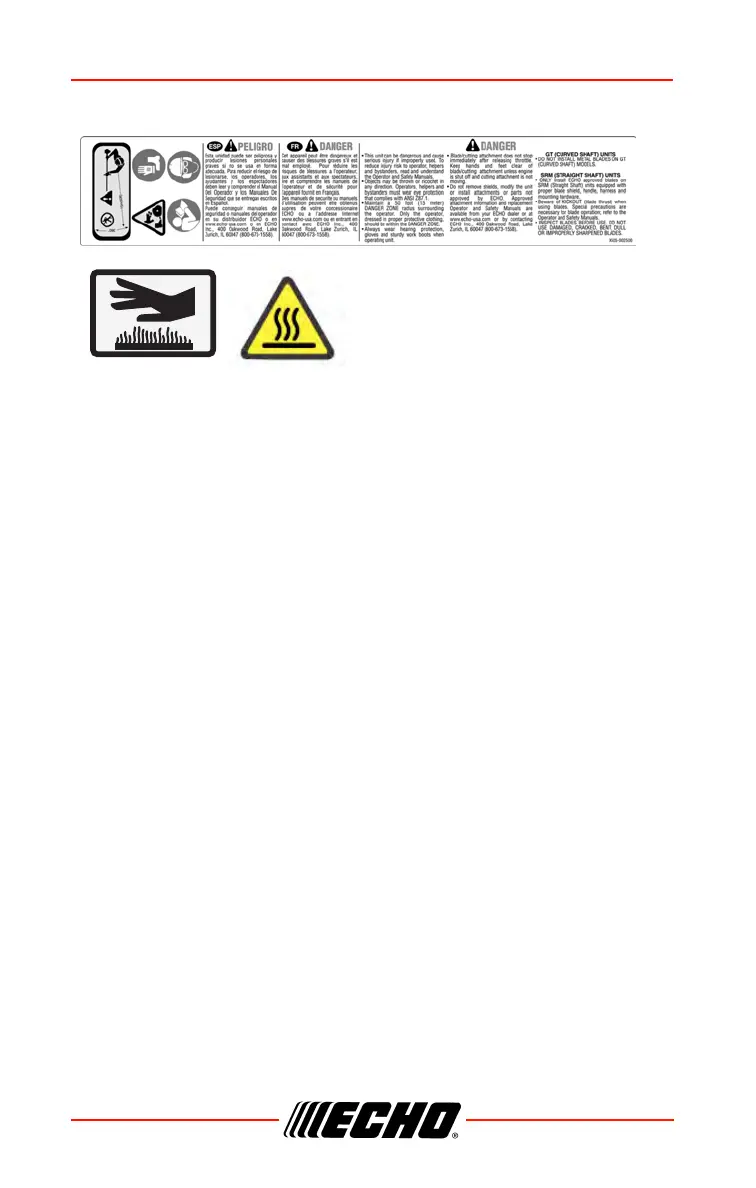

5. DRIVE SHAFT ASSEMBLY - Includes U-Handle, Gear Housing
Assembly, Drive Shaft and Safety Decal.
6. NYLON CUTTER HEAD - Contains replaceable nylon trimming line
that advances when the trimmer head is tapped against the ground
while the head is turning at normal operating speed.
7. CUT-OFF KNIFE - Automatically trims line to the correct length: 13 cm
(5 in) after head is tapped on the ground. If trimmer is operated without
a cut-off knife, the line will become too long, the engine will overheat,
and engine damage may occur.
8. DEBRIS SHIELD with CUT-OFF KNIFE - Required when unit is
equipped with nylon line head. Do not operate unit without shield.
9. U-HANDLE - Required for metal blade operation.
10. HIP PAD - Used to protect hip/leg and clothing when using U-handle
equipped unit.
11. SHOULDER HARNESS - An adjustable strap that suspends the unit
from the operator. Using the strap reduces operator fatigue.
12. DEBRIS SHIELD without CUT-OFF KNIFE - Required when unit is
equipped with blades. Do not operate unit without shield.
13. SPARK PLUG - Provides spark to ignite fuel mixture.
