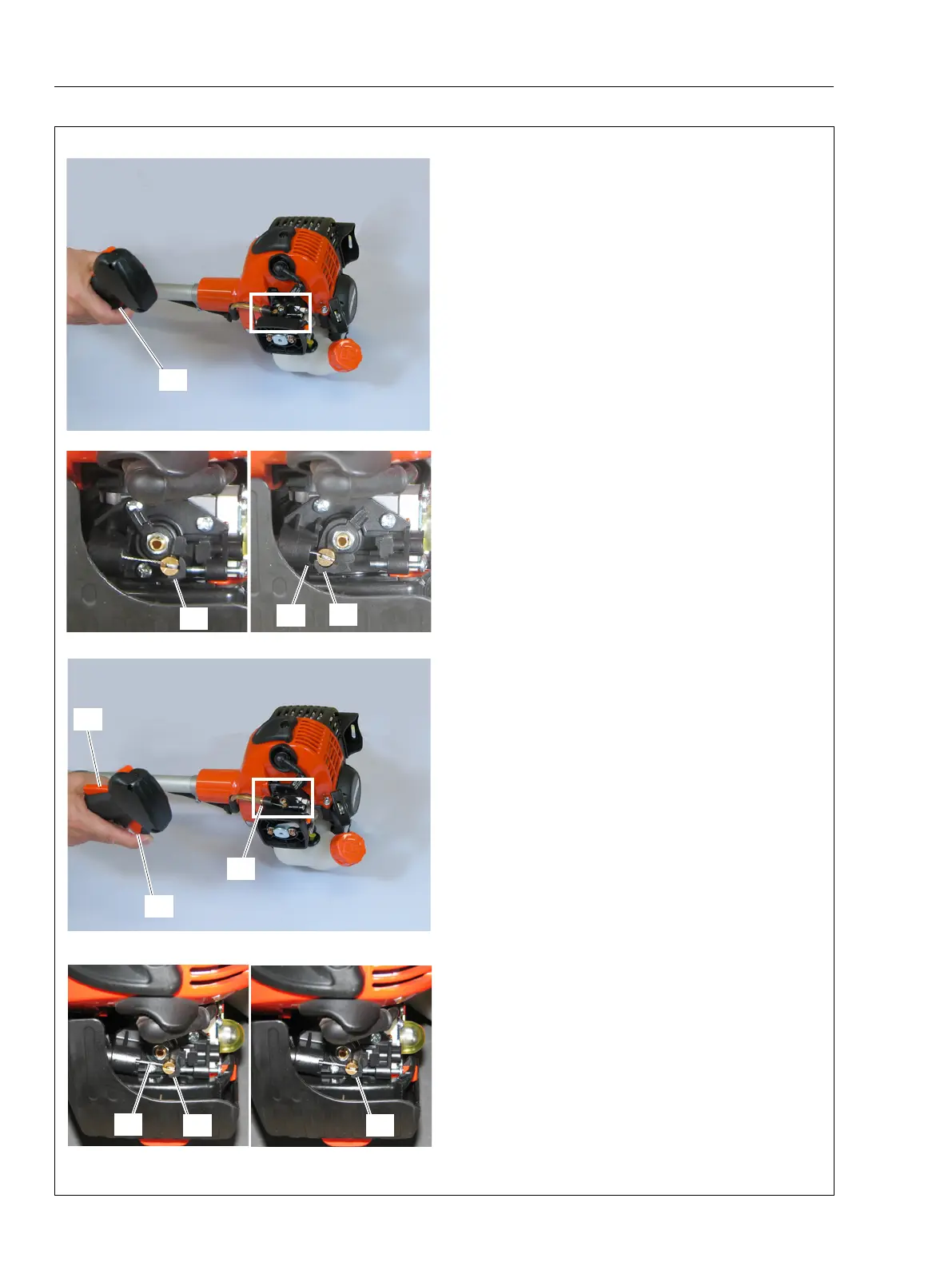

3-2 Adjusting throttle cable
1. When squeezing throttle trigger (A), make sure
throttle plate (B) should be full open at WOT position.
Throttle plate tab (b) should contact with plastic boss
(E).
2. When squeezing throttle trigger (A) without
throttle trigger lockout (C), there is a chance for inner
cable (F) of throttle wire to move a little bit. However
throttle plate (B) should be no movement.
If throttle plate (B) can be moved, adjust nut (D)
using 8 mm spaner not to move throttle plate (B).
NOTE : If the throttle plate (B) moves when
squeezing throttle trigger (A) without throttle trigger
lockout (C), engine speed increases.
(A)
(C)
(A)
(B)(B)
(F)
(B)
(B)
(E)
(D)
