Echo SRM-265ES Series User Manual

SERVICE INFORMATION
SRM-265ES
6
Ignition Air Gap Gauge
#.014 = .35mm
P/N 91004
ECHO
0
0.4
50
0.8
1.2
1.
MPa
0

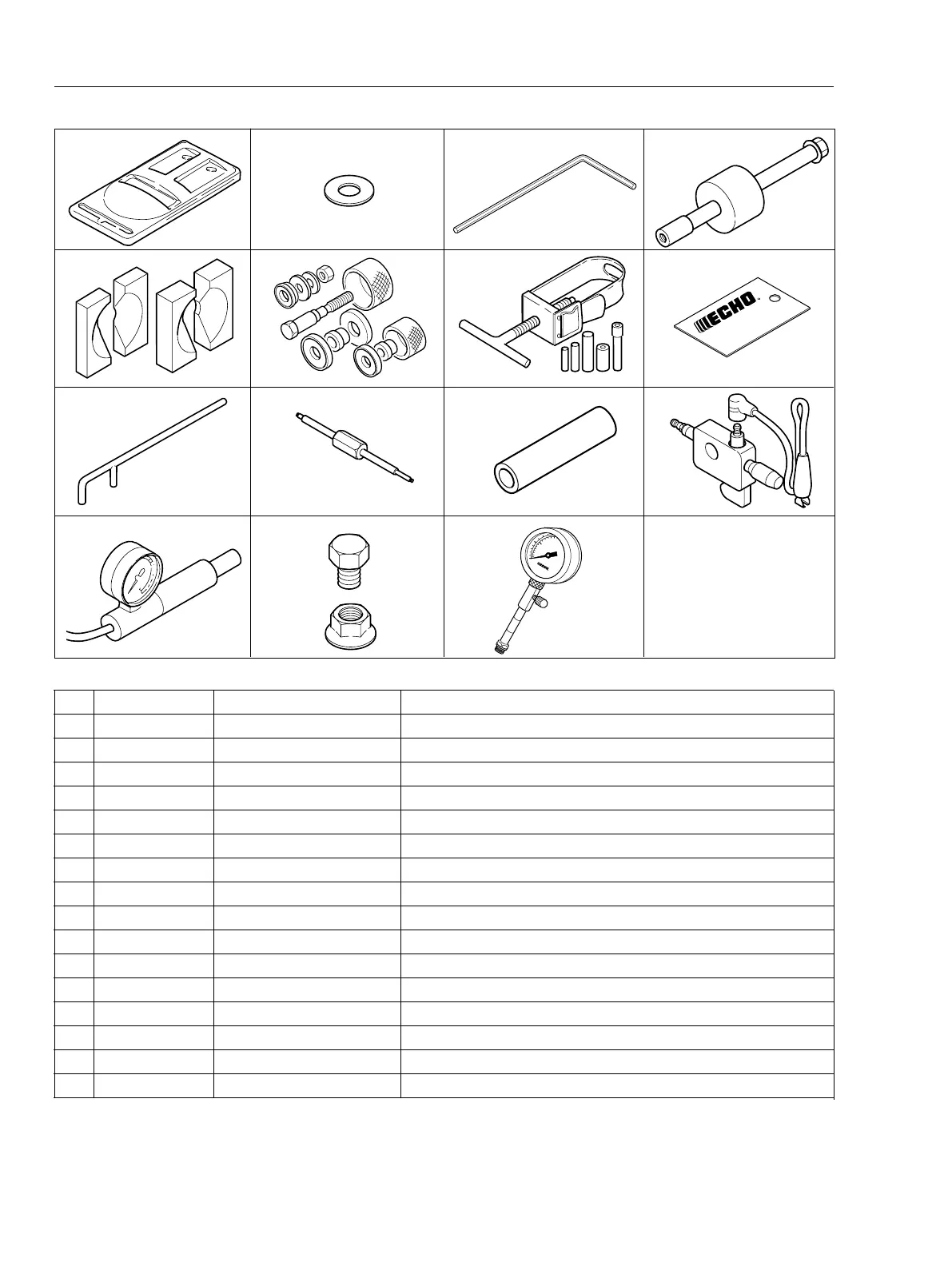

Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed
2 363018-00310 Washer Installing crankcase oil seal
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
4 897603-23030 PTO shaft puller Removing driven (PTO) shaft
5 897701-06030 Bearing wedge Removing ball bearings on crankshaft
6 897701-14732 Bearing tool Removing and installing crankcase ball bearings
7 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter.)
8 91004 Module air gap gauge Adjusting pole shoe air gaps
9 897712-04630 2-pin wrench Removing and installing pawl carrier
10 91020 Limiter plug tool Removing and installing plug
11 897726-09130 Oil seal tool Installing crankcase oil seals
12 990511-30023 Spark tester Checking ignition system
13 897803-30133 Pressure tester Checking carburetor and crankcase leakages
14 900100-08008 Bolt Removing magneto rotor (flywheel), crankshaft from crankcase
15 433019-12330 Flange nut Removing magneto rotor (flywheel)
16 91037 Compression gauge Measuring cylinder compression
1-6 Special tools
1
6
14
7
16
3
8
15
10
5
9
12
11
2
4
13
