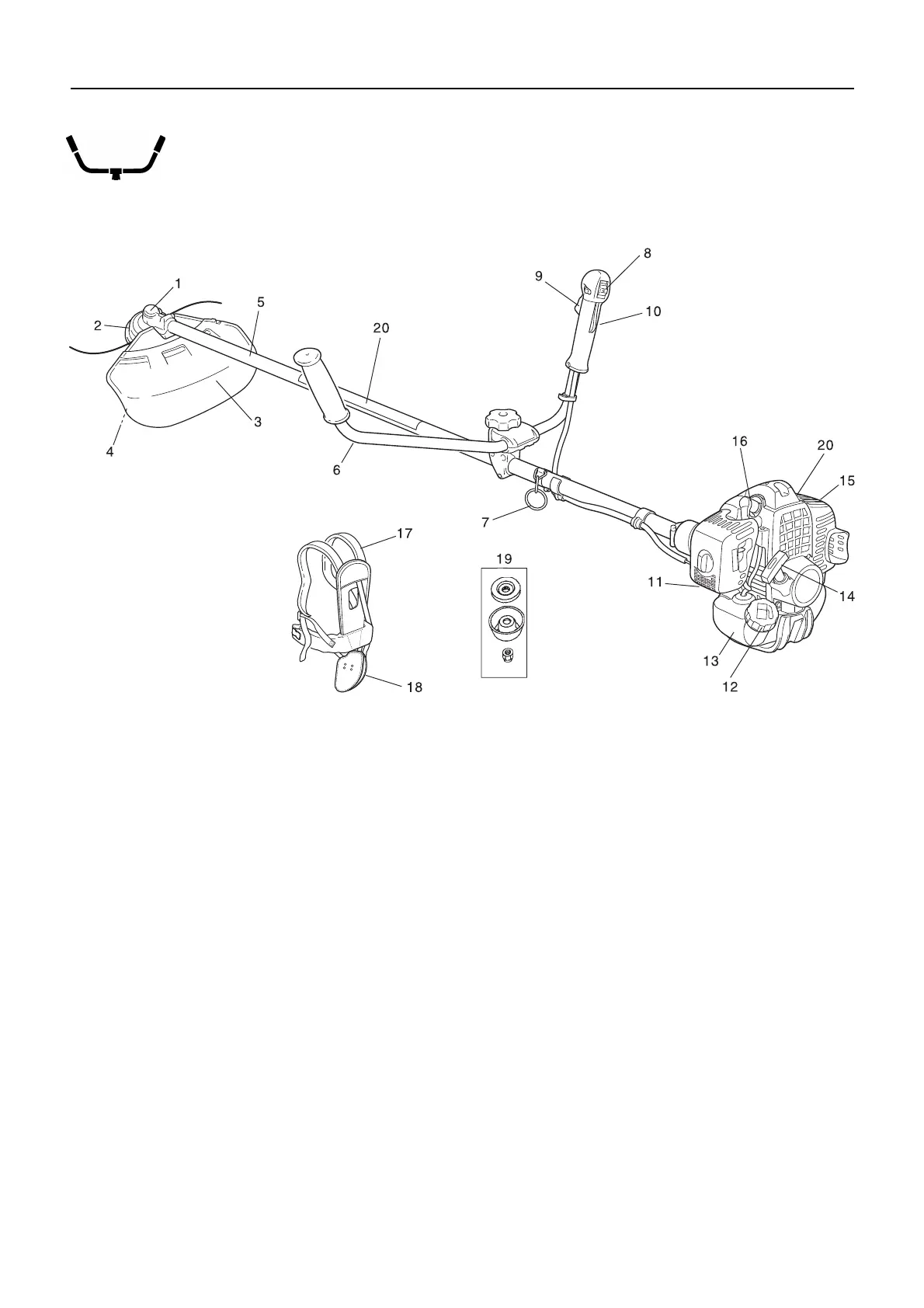

Description
1. Angle transmission Having two gears to change to an-
gle of rotating axis.
2. Cutting attachment Nylon line cutting head for cutting
grass and weed.
3. Shield Device to protect the operator from accidental
contact with the cutting head and thrown objects.
4. Cut off knife Cut nylon line to adjust line length to proper
swath.
5. Shaft tube Part of the unit that provides a casing for pow-
er transmission shaft.
6. U-handle Having the configuration of a bicycle handle bar
to reduce working effort compared to a loop-handle.
7. Suspension point Device on which the harness can be
hooked.
8. Ignition switch "Slide switch" mounted on top of the
throttle trigger housing, move switch upward to RUN,
downward to STOP position.
9. Throttle trigger Activated by the operator's finger for con-
trolling the engine speed.
10. Throttle trigger lockout Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
11. Air cleaner cover Covers air filter.
12. Fuel tank cap For closing the fuel tank.
13. Fuel tank Contains fuel and fuel filter.
14. Starter handle Pull handle to start the engine.
15. Silencer cover Cover the silencer not to make operator
touch to hot surface of silencer.
16. Spark plug
17. Shoulder harness An adjustable straps to suspend
unit.
18. Hip pad To protect hip/leg and clothing.
19. Retaining parts
20. Safety decal
