17
Before you start
Before yo u start

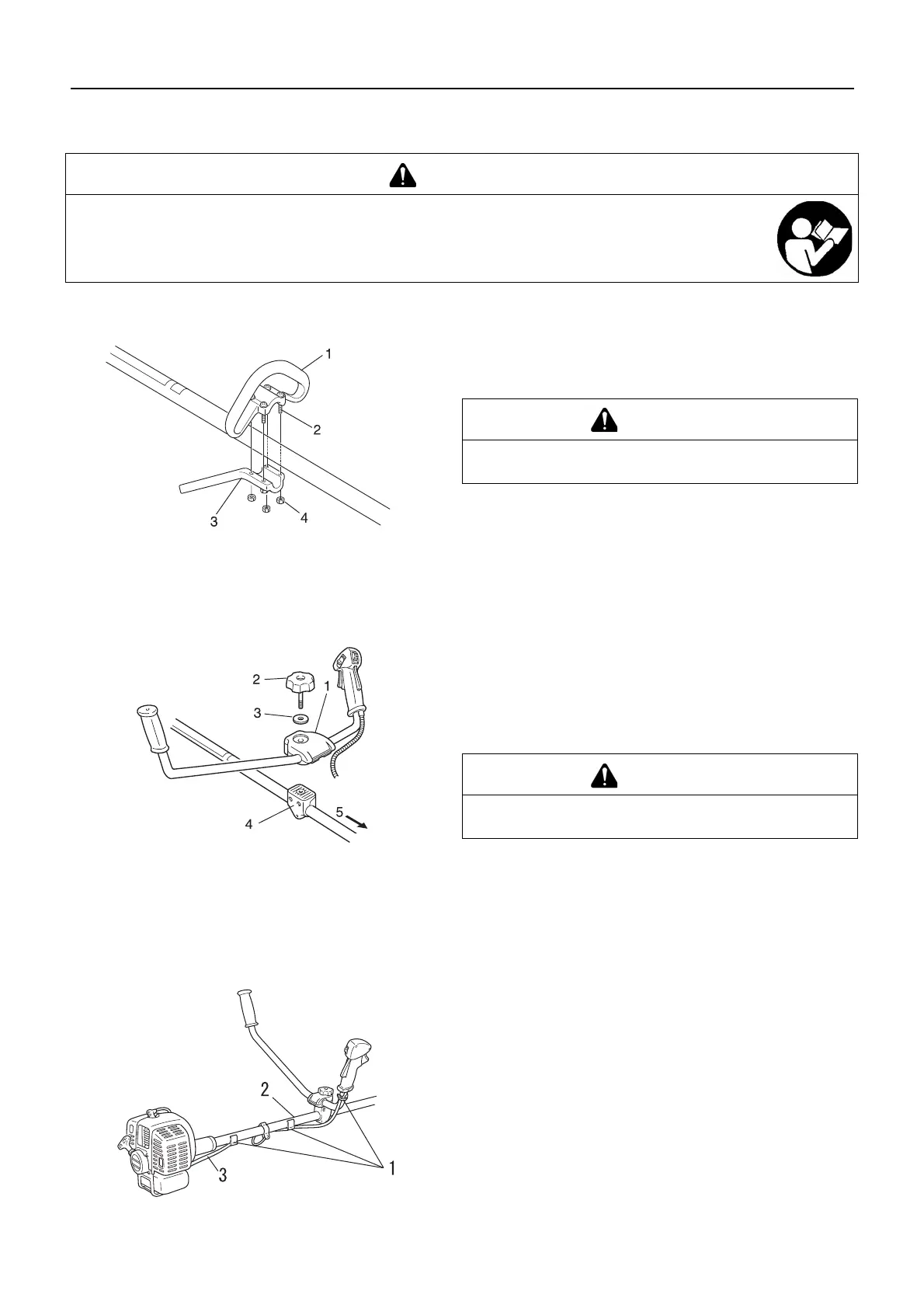

Assembly
Loop handle version
Loop handle assembly
Assemble loop handle and bracket to drive shaft assembly.
Position handle in comfortable operating position and tighten
screws (M5×35).
U-handle version
U-handle assembly
Install handle assembling bracket (upper) in handle assembling
bracket (lower) and fix handle by tightening handle assembling
bolt (8 mm) lightly.
Adjust inclination of handle to adequate position (easy to oper-
ate) and tighten firmly handle assembling bolt (8 mm).
To eliminate loosening of throttle wire fix it to shaft tube (2 places)
and to right hand U-handle (1 place) with wire fixing clips.
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
1. Loop handle
2. Screw M5×35
3. Loop handle bracket
4. Nut
CAUTION
Install the handle so that it does not hide any of the
safety decals.
1. Handle assembling bracket (upper)
2. Handle assembling bolt (8 mm)
3. Washer
4. Handle assembling bracket (lower)
5. To engine
CAUTION
Install the handle so that it does not hide any of the
safety decals.
1. Wire fixing clips
2. Shaft tube
3. Throttle wire
