18
Before you start
Before yo u start
Assembly
Loop handle version

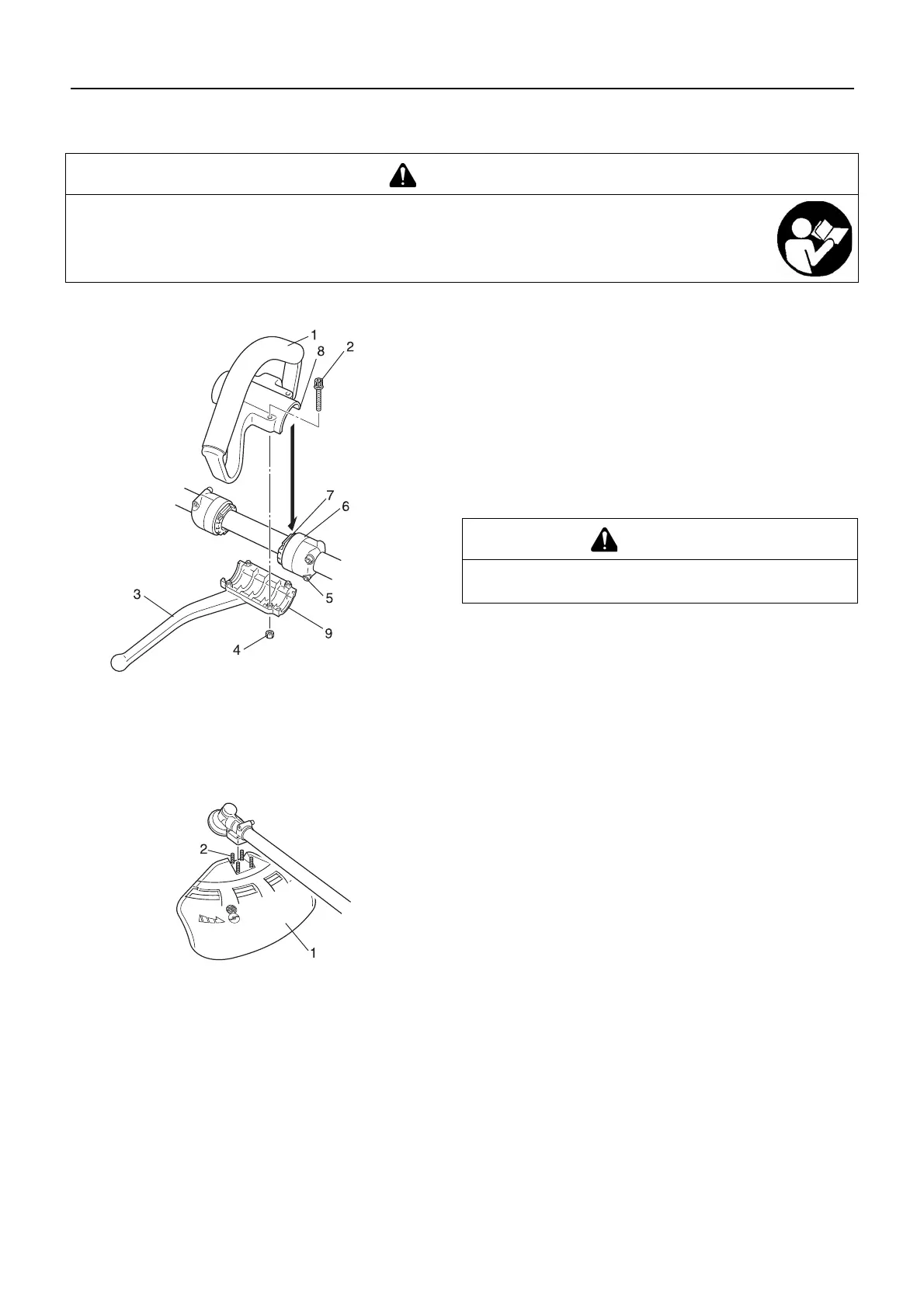

Loop handle assembly
Assemble loop handle and bracket to drive shaft assembly.
Fit protrusions of loop handle and bracket into the respective con-
caves of cushion and make sure they are firmly dovetailed with
each other and fasten screws (M5×35).
Loosen bolts (M5×25) and adjust handle to a position that makes
operation comfortable.After adjustment fasten bolts (M5×25)
tightly to fix handle.
Installation of shield
Fit shield to mounting portion of angle transmission and tighten 4
bolts.
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
1. Loop handle
2. Screw M5×35
3. Loop handle bracket
4. Nut
5. Screw M5×25
6. Cushion
7. Concaves of cushion
8. Protrusions of loop han-
dle
9. Protrusions of bracket
CAUTION
Install the handle so that it does not hide any of the
safety decals.
1. Shield 2. Bolt
