22

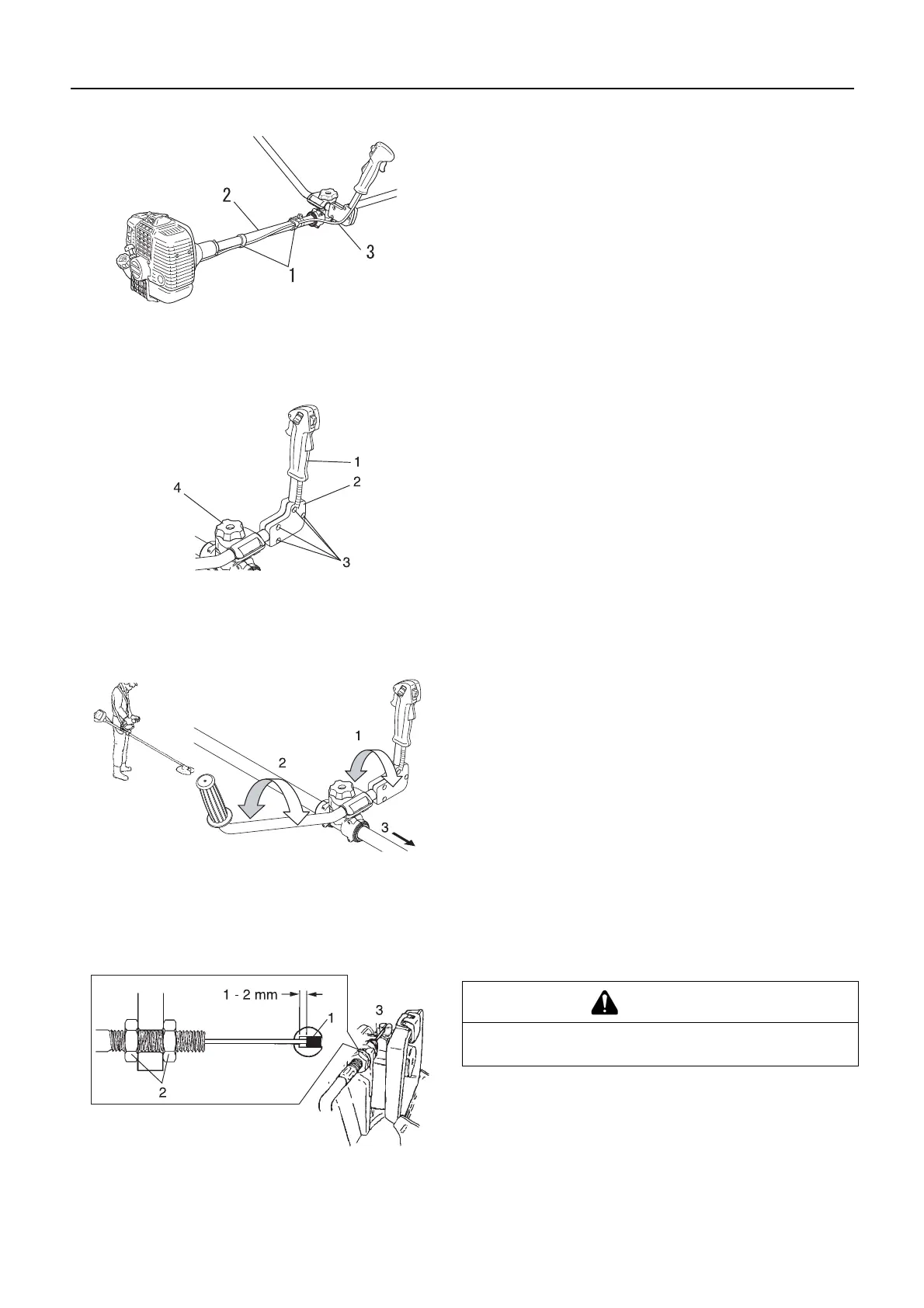

Before you start
To eliminate loosening of throttle wire fix it to shaft tube (2 places)
with wire fixing clips.
Adjust U-handle
Loosen 4 right handle assembling bolts and handle assembling
bolt (8 mm).
Adjust each inclination of right and left handles to adequate posi-
tion (easy to operate) and tighten firmly handle assembling bolt
(8 mm) and 4 right handle assembling bolts.Determine "Easy to
operate" position seeing illustration above.
1. Wire fixing clips
2. Shaft tube
3. Throttle wire
1. Right hand U-handle
2. Right handle assem-
bling bracket
3. Right handle assem-
bling bolt
4. Handle assembling bolt
(8 mm)
1. Adjustment of right han-
dle inclination (for-
ward/ backward)
2. Adjustment of left han-
dle inclination (for-
ward/ backward)
3. To engine
1. Wire end
2. Nuts
3. Carburettor
CAUTION
After assembly, adjust the play of wire end on carburettor
side to 1 mm - 2 mm.
