6. FUNCTION LIST
1. Input attenuator
2. Combined clip and protection indicator, CLIP/PROT
3. Thermal protection indicator, TH
4. Signal present indicator, SP
5. Illuminated mains switch
6. Mains socket
7. Switch to disconnect chassis earth/electrical Ground, GND LINK
8. Earth terminal, GND
9. Jack output connector to other amplifiers, STK OUTPUT
10. Input XLR connector, CHANNEL
11. Bridge/mono selector switch
12. Speakon connectors to the loudspeakers
13. Fan
14. Mains cable

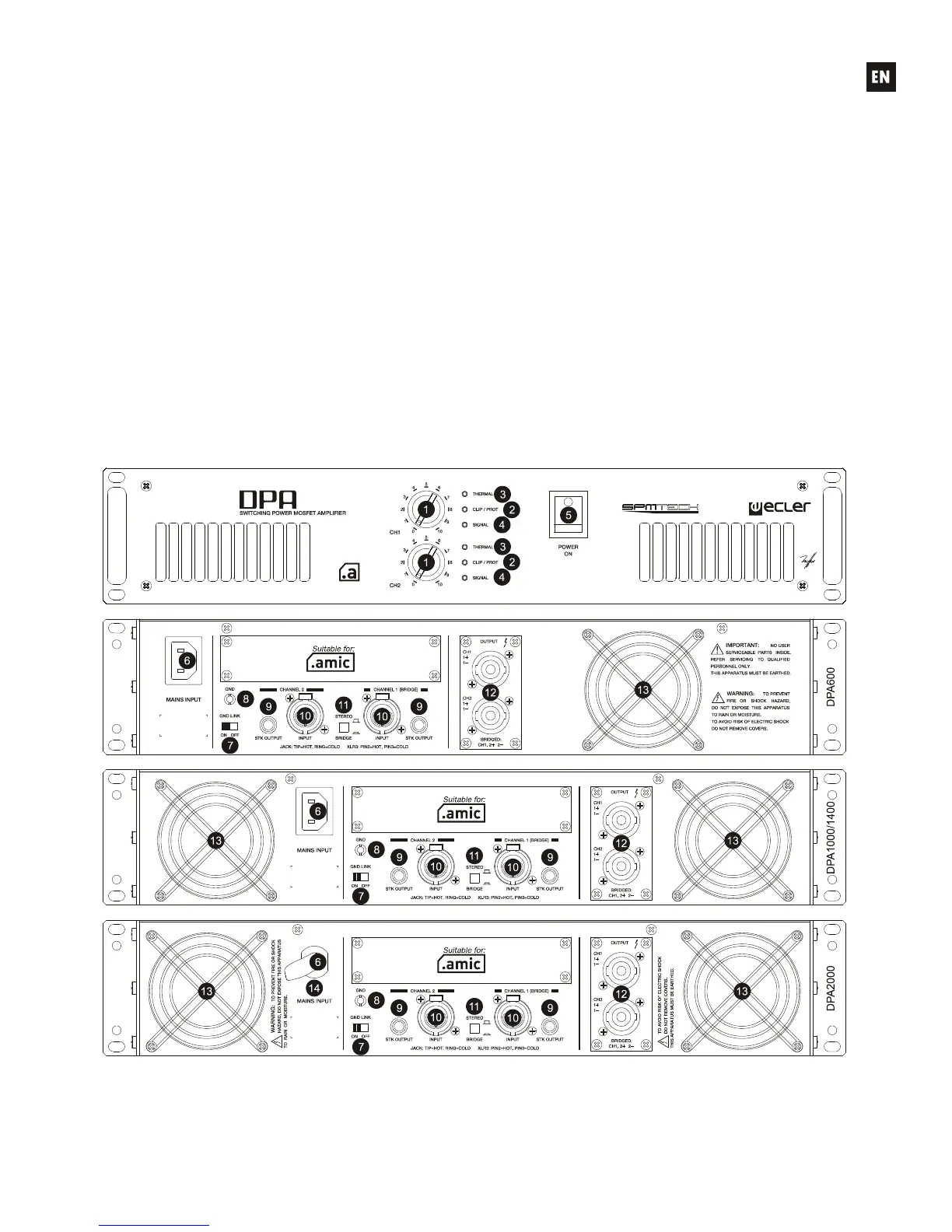

7. FUNCTION DIAGRAM
