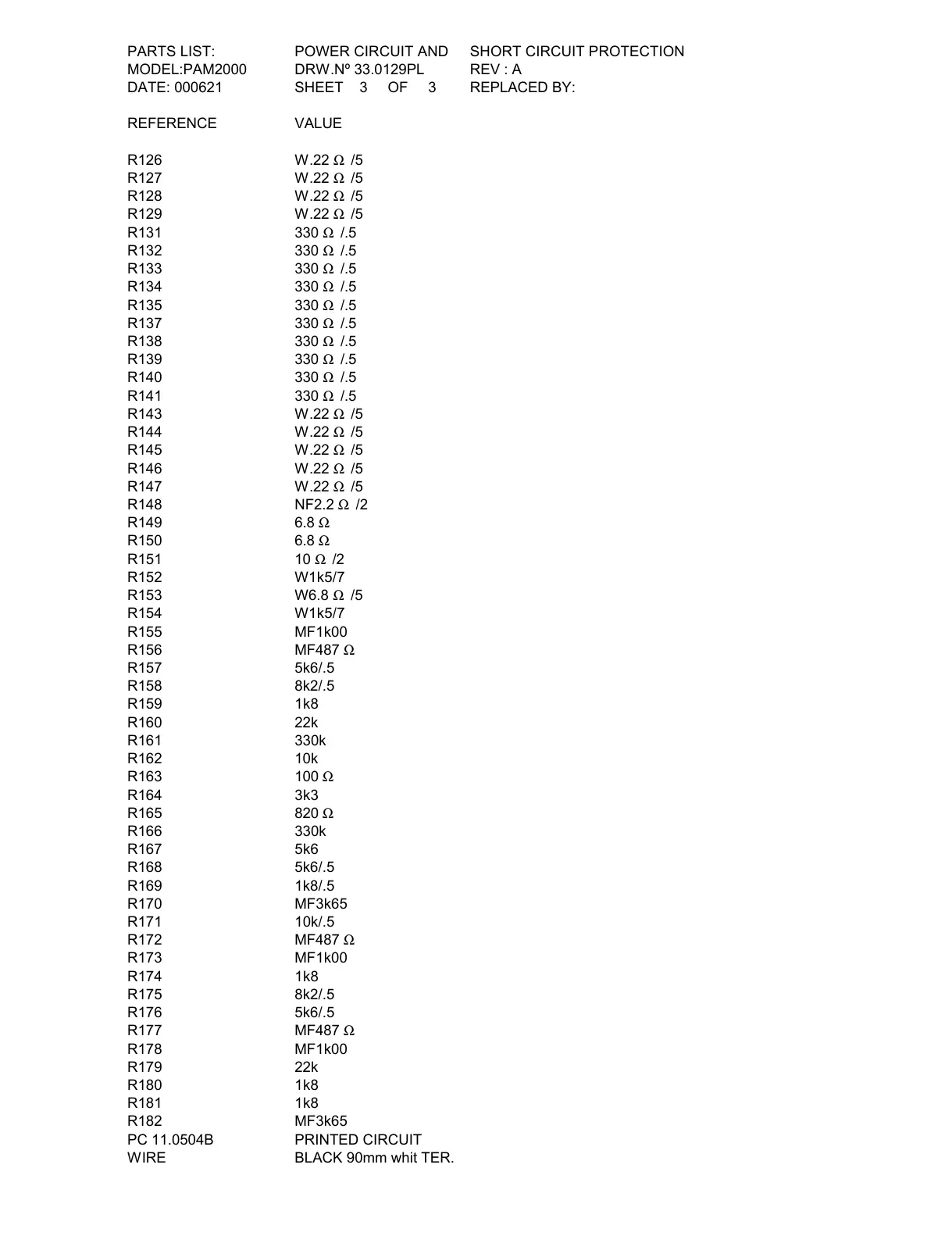

PARTS LIST: POWER CIRCUIT AND SHORT CIRCUIT PROTECTION
MODEL:PAM2000 DRW.Nº 33.0129PL REV : A
DATE: 000621 SHEET 3 OF 3 REPLACED BY:
REFERENCE VALUE
R126 W.22 Ω /5
R127 W.22 Ω /5
R128 W.22 Ω /5
R129 W.22 Ω /5
R131 330 Ω /.5
R132 330 Ω /.5
R133 330 Ω /.5
R134 330 Ω /.5
R135 330 Ω /.5
R137 330 Ω /.5
R138 330 Ω /.5
R139 330 Ω /.5
R140 330 Ω /.5
R141 330 Ω /.5
R143 W.22 Ω /5
R144 W.22 Ω /5
R145 W.22 Ω /5
R146 W.22 Ω /5
R147 W.22 Ω /5
R148 NF2.2 Ω /2
R149 6.8 Ω
R150 6.8 Ω
R151 10 Ω /2
R152 W1k5/7
R153 W6.8 Ω /5
R154 W1k5/7
R155 MF1k00
R156 MF487 Ω
R157 5k6/.5
R158 8k2/.5
R159 1k8
R160 22k
R161 330k
R162 10k
R163 100 Ω
R164 3k3
R165 820 Ω
R166 330k
R167 5k6
R168 5k6/.5
R169 1k8/.5
R170 MF3k65
R171 10k/.5
R172 MF487 Ω
R173 MF1k00
R174 1k8
R175 8k2/.5
R176 5k6/.5
R177 MF487 Ω
R178 MF1k00
R179 22k
R180 1k8
R181 1k8
R182 MF3k65
PC 11.0504B PRINTED CIRCUIT
WIRE BLACK 90mm whit TER.
