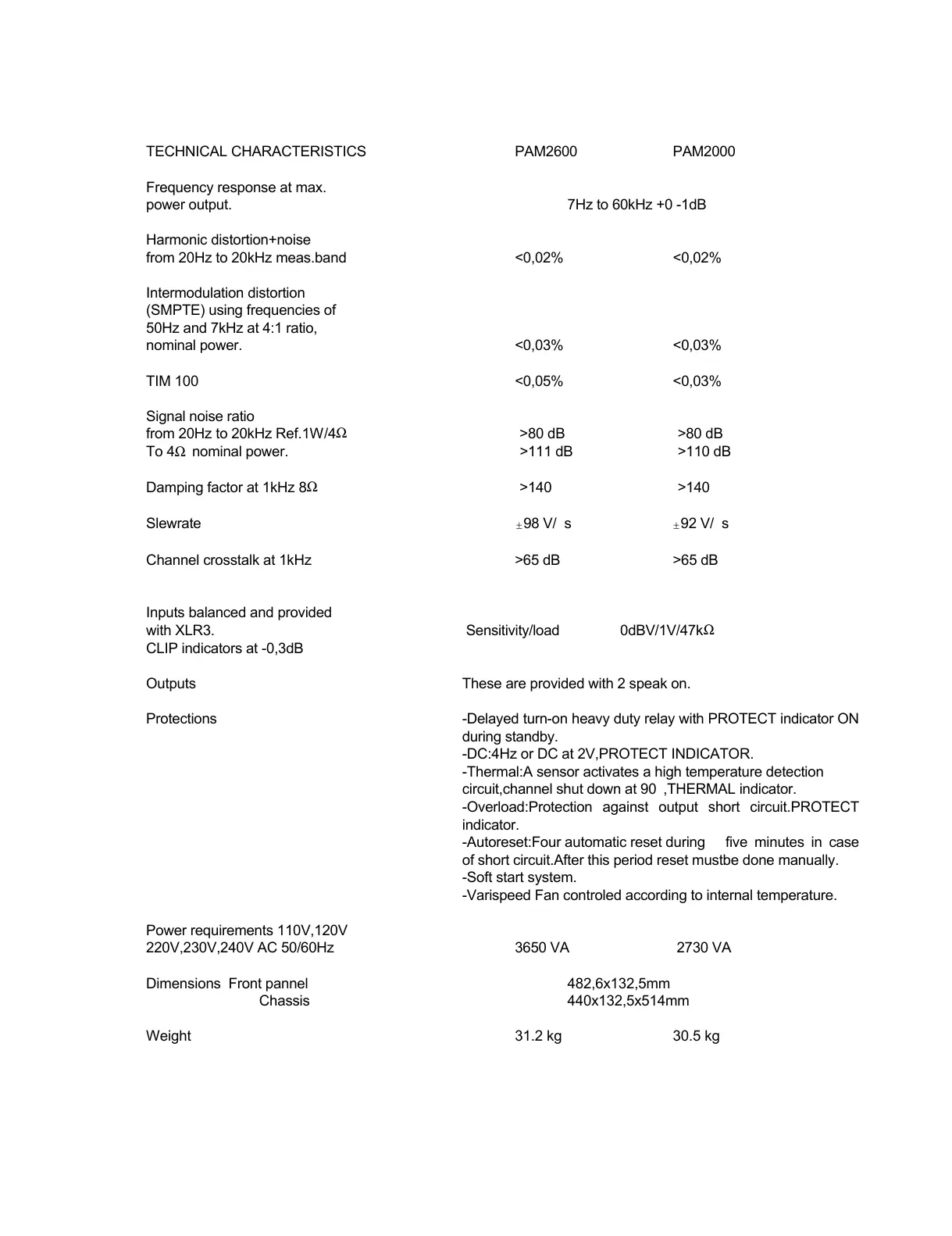

TECHNICAL CHARACTERISTICS PAM2600 PAM2000
Frequency response at max.
power output. 7Hz to 60kHz +0 -1dB
Harmonic distortion+noise
from 20Hz to 20kHz meas.band <0,02% <0,02%
Intermodulation distortion
(SMPTE) using frequencies of
50Hz and 7kHz at 4:1 ratio,
nominal power. <0,03% <0,03%
TIM 100 <0,05% <0,03%
Signal noise ratio
from 20Hz to 20kHz Ref.1W/4
Ω
>80 dB >80 dB
To 4Ω nominal power. >111 dB >110 dB
Damping factor at 1kHz 8
Ω
>140 >140
Slewrate
"
98 V/µs
"
92 V/µs
Channel crosstalk at 1kHz >65 dB >65 dB
Inputs balanced and provided
with XLR3. Sensitivity/load 0dBV/1V/47k
Ω
CLIP indicators at -0,3dB
Outputs These are provided with 2 speak on.
Protections -Delayed turn-on heavy duty relay with PROTECT indicator ON
during standby.
-DC:4Hz or DC at 2V,PROTECT INDICATOR.
-Thermal:A sensor activates a high temperature detection
circuit,channel shut down at 90
º
,THERMAL indicator.
-Overload:Protection against output short circuit.PROTECT
indicator.
-Autoreset:Four automatic reset during five minutes in case
of short circuit.After this period reset mustbe done manually.
-Soft start system.
-Varispeed Fan controled according to internal temperature.
Power requirements 110V,120V
220V,230V,240V AC 50/60Hz 3650 VA 2730 VA
Dimensions Front pannel 482,6x132,5mm
Chassis 440x132,5x514mm
Weight 31.2 kg 30.5 kg
