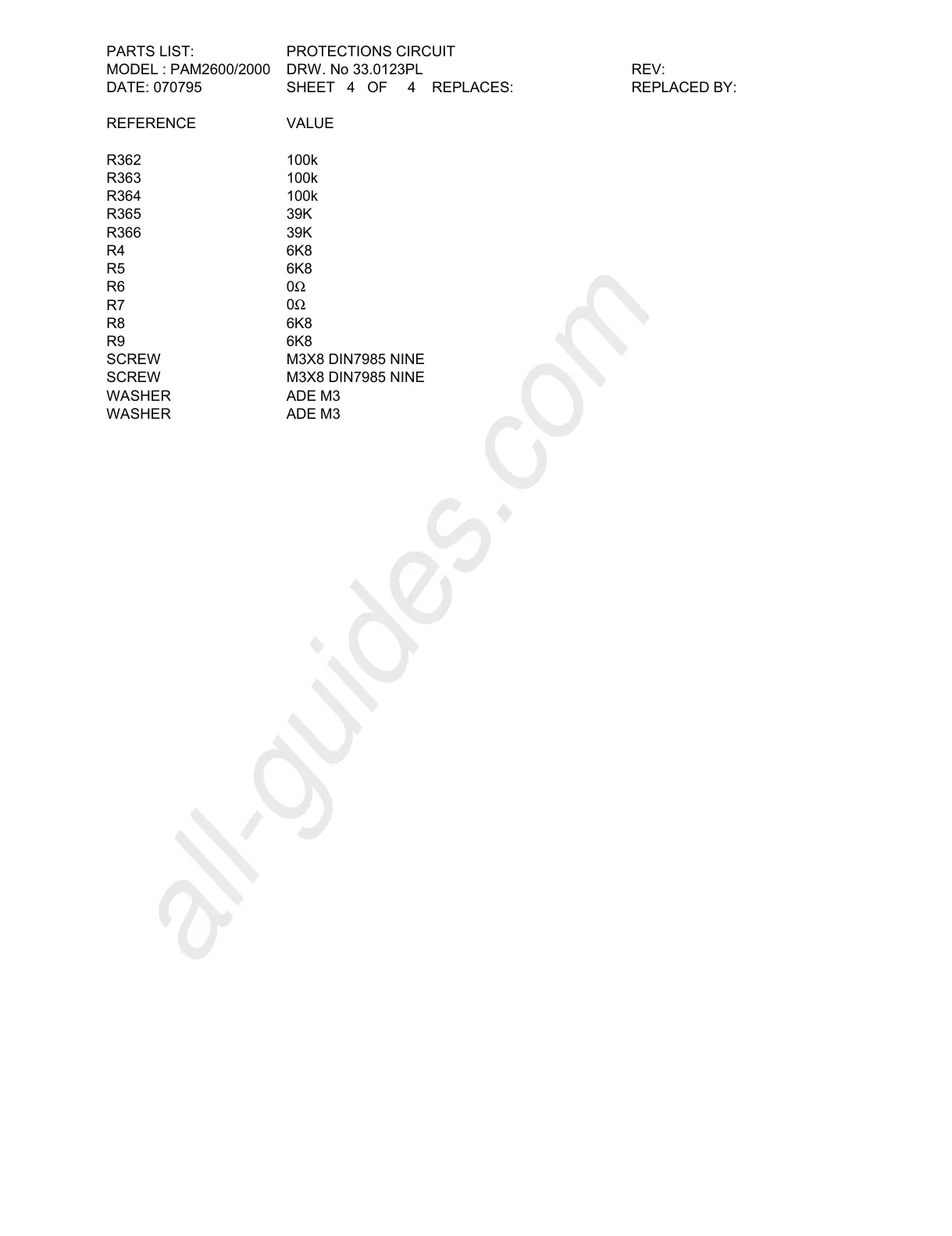

PARTS LIST: PROTECTIONS CIRCUIT
MODEL : PAM2600/2000 DRW. No 33.0123PL REV:
DATE: 070795 SHEET 4 OF 4 REPLACES: REPLACED BY:
REFERENCE VALUE
R362 100k
R363 100k
R364 100k
R365 39K
R366 39K
R4 6K8
R5 6K8
R6
0
Ω
R7
0
Ω
R8 6K8
R9 6K8
SCREW M3X8 DIN7985 NINE
SCREW M3X8 DIN7985 NINE
WASHER ADE M3
WASHER ADE M3
