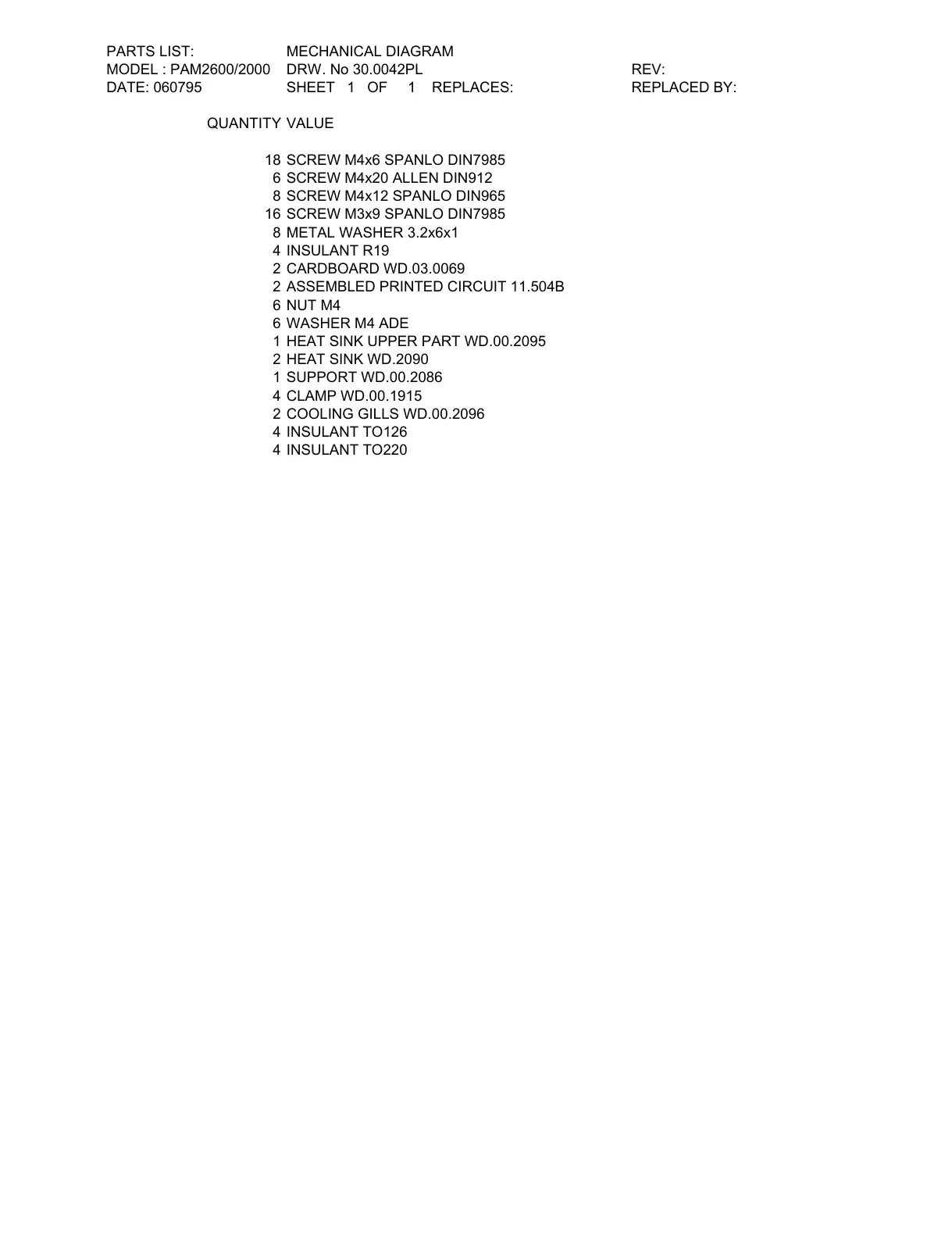

PARTS LIST: MECHANICAL DIAGRAM
MODEL : PAM2600/2000 DRW. No 30.0042PL REV:
DATE: 060795 SHEET 1 OF 1 REPLACES: REPLACED BY:
QUANTITY VALUE
18 SCREW M4x6 SPANLO DIN7985
6 SCREW M4x20 ALLEN DIN912
8 SCREW M4x12 SPANLO DIN965
16 SCREW M3x9 SPANLO DIN7985
8 METAL WASHER 3.2x6x1
4 INSULANT R19
2 CARDBOARD WD.03.0069
2 ASSEMBLED PRINTED CIRCUIT 11.504B
6 NUT M4
6 WASHER M4 ADE
1 HEAT SINK UPPER PART WD.00.2095
2 HEAT SINK WD.2090
1 SUPPORT WD.00.2086
4 CLAMP WD.00.1915
2 COOLING GILLS WD.00.2096
4 INSULANT TO126
4 INSULANT TO220
