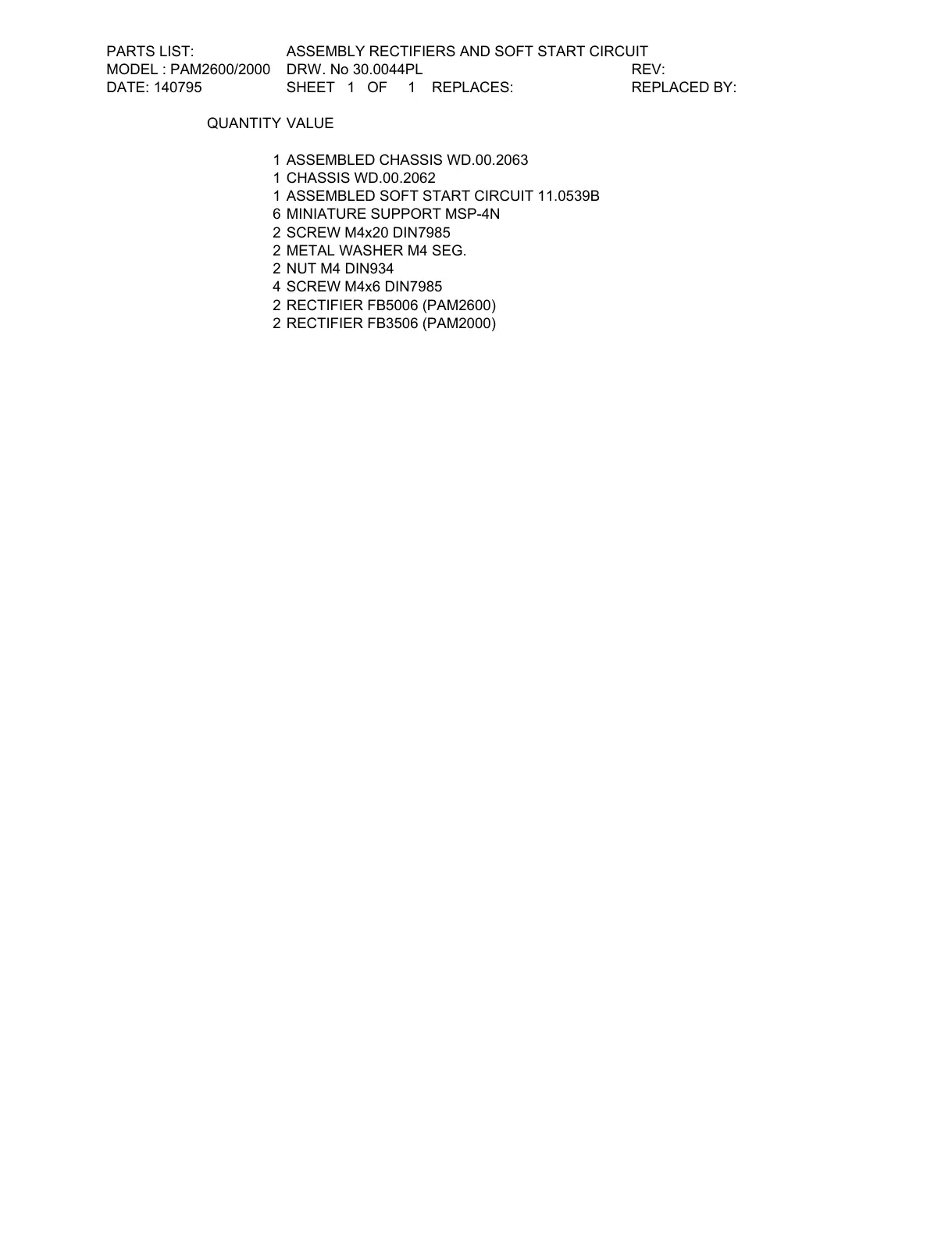

PARTS LIST: ASSEMBLY RECTIFIERS AND SOFT START CIRCUIT
MODEL : PAM2600/2000 DRW. No 30.0044PL REV:
DATE: 140795 SHEET 1 OF 1 REPLACES: REPLACED BY:
QUANTITY VALUE
1 ASSEMBLED CHASSIS WD.00.2063
1 CHASSIS WD.00.2062
1 ASSEMBLED SOFT START CIRCUIT 11.0539B
6 MINIATURE SUPPORT MSP-4N
2 SCREW M4x20 DIN7985
2 METAL WASHER M4 SEG.
2 NUT M4 DIN934
4 SCREW M4x6 DIN7985
2 RECTIFIER FB5006 (PAM2600)
2 RECTIFIER FB3506 (PAM2000)
