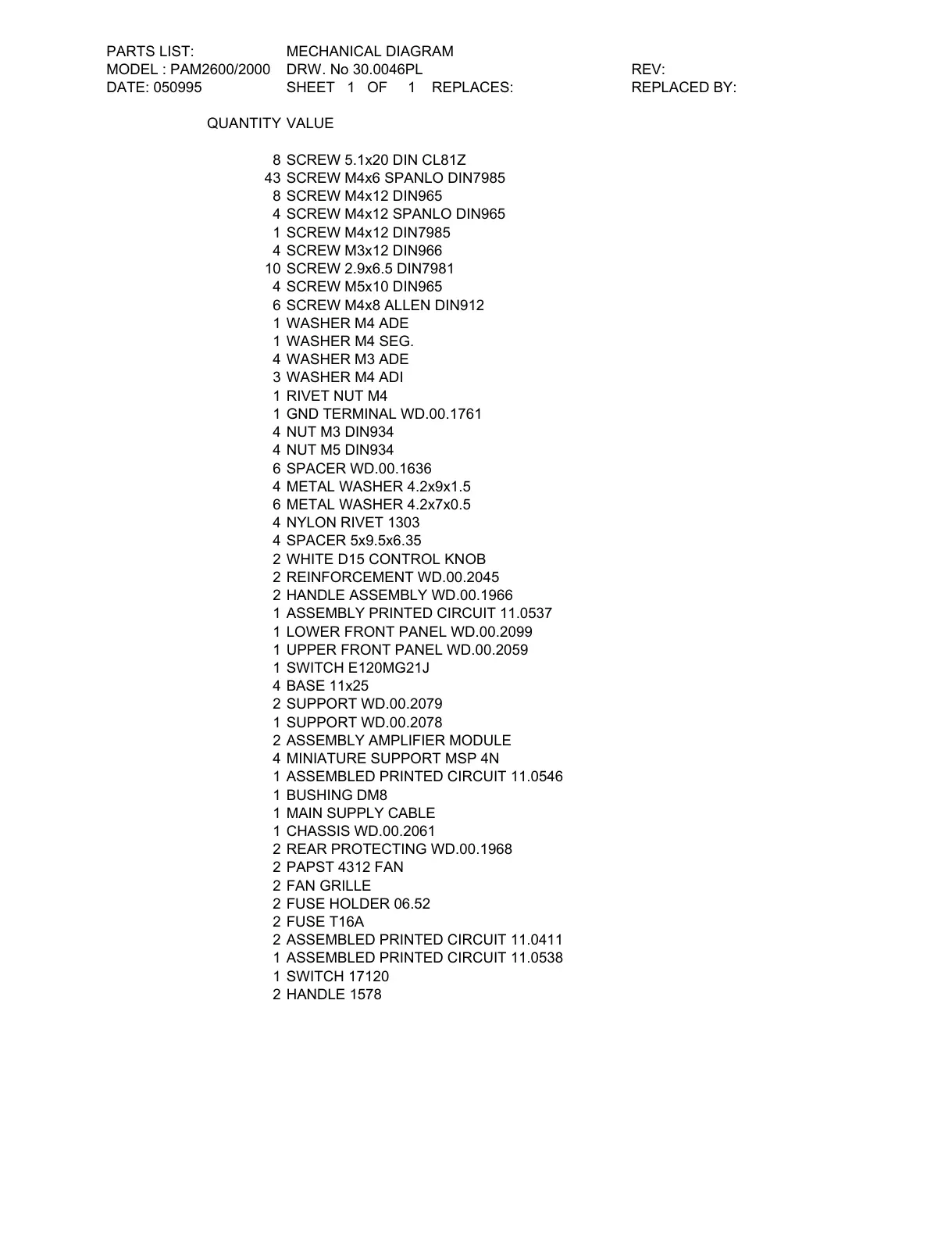

PARTS LIST: MECHANICAL DIAGRAM
MODEL : PAM2600/2000 DRW. No 30.0046PL REV:
DATE: 050995 SHEET 1 OF 1 REPLACES: REPLACED BY:
QUANTITY VALUE
8 SCREW 5.1x20 DIN CL81Z
43 SCREW M4x6 SPANLO DIN7985
8 SCREW M4x12 DIN965
4 SCREW M4x12 SPANLO DIN965
1 SCREW M4x12 DIN7985
4 SCREW M3x12 DIN966
10 SCREW 2.9x6.5 DIN7981
4 SCREW M5x10 DIN965
6 SCREW M4x8 ALLEN DIN912
1 WASHER M4 ADE
1 WASHER M4 SEG.
4 WASHER M3 ADE
3 WASHER M4 ADI
1 RIVET NUT M4
1 GND TERMINAL WD.00.1761
4 NUT M3 DIN934
4 NUT M5 DIN934
6 SPACER WD.00.1636
4 METAL WASHER 4.2x9x1.5
6 METAL WASHER 4.2x7x0.5
4 NYLON RIVET 1303
4 SPACER 5x9.5x6.35
2 WHITE D15 CONTROL KNOB
2 REINFORCEMENT WD.00.2045
2 HANDLE ASSEMBLY WD.00.1966
1 ASSEMBLY PRINTED CIRCUIT 11.0537
1 LOWER FRONT PANEL WD.00.2099
1 UPPER FRONT PANEL WD.00.2059
1 SWITCH E120MG21J
4 BASE 11x25
2 SUPPORT WD.00.2079
1 SUPPORT WD.00.2078
2 ASSEMBLY AMPLIFIER MODULE
4 MINIATURE SUPPORT MSP 4N
1 ASSEMBLED PRINTED CIRCUIT 11.0546
1 BUSHING DM8
1 MAIN SUPPLY CABLE
1 CHASSIS WD.00.2061
2 REAR PROTECTING WD.00.1968
2 PAPST 4312 FAN
2 FAN GRILLE
2 FUSE HOLDER 06.52
2 FUSE T16A
2 ASSEMBLED PRINTED CIRCUIT 11.0411
1 ASSEMBLED PRINTED CIRCUIT 11.0538
1 SWITCH 17120
2 HANDLE 1578
