Ecleris MICROSTAR C100 - C-100 F FLOOR STAND COMPONENTS

USER MANUAL – COLPOSCOPE C100
Page 6 of 32
INMANUUIN161 Rev.2019.04.01 / ENG
The Ecleris Microstar C-100 Colposcope includes the following necessary components. Please
identify and check them before you proceed with the installation:
3.3.1 FLOOR STAND – PARALLEOLOGRAM ARM MODEL – C-100F
Components:
 4 Wheels with brakes
 1 Base and column
 1 Complete pantograph arm
 1 Light source
 1 Head with 1 objective lens
 1 Binocular
 2 Eyepieces
 1 Fiber optic cable
 1 3 meters AC interlock cable
 1 Cover
 1 User’s manual
 1 3/16” Allen key
 1 4 mm Allen key

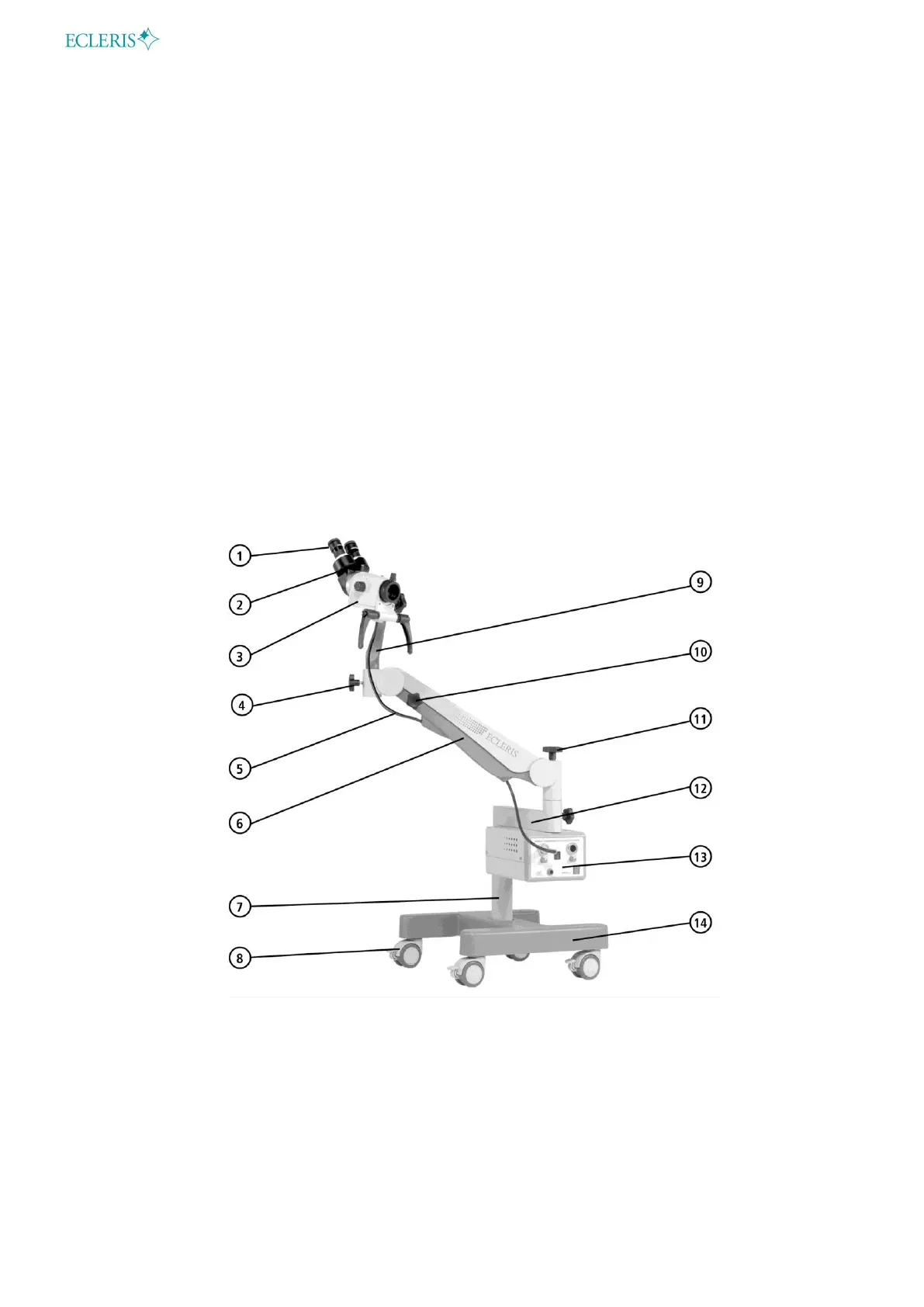

1. Eye piece
2. Binocular
3. Head
4. Regulation of head rotation
command
5. Fiber optic cable
6. Parallelogram arm
7. Column
8. Wheels with brake
9. Head fork pole
10. Parallelogram arm brake
11. Weight compensation command
12. Forearm
13. Double light source
14. Base
