Eclipse Veri-Flame Instruction Manual 818 -6/06

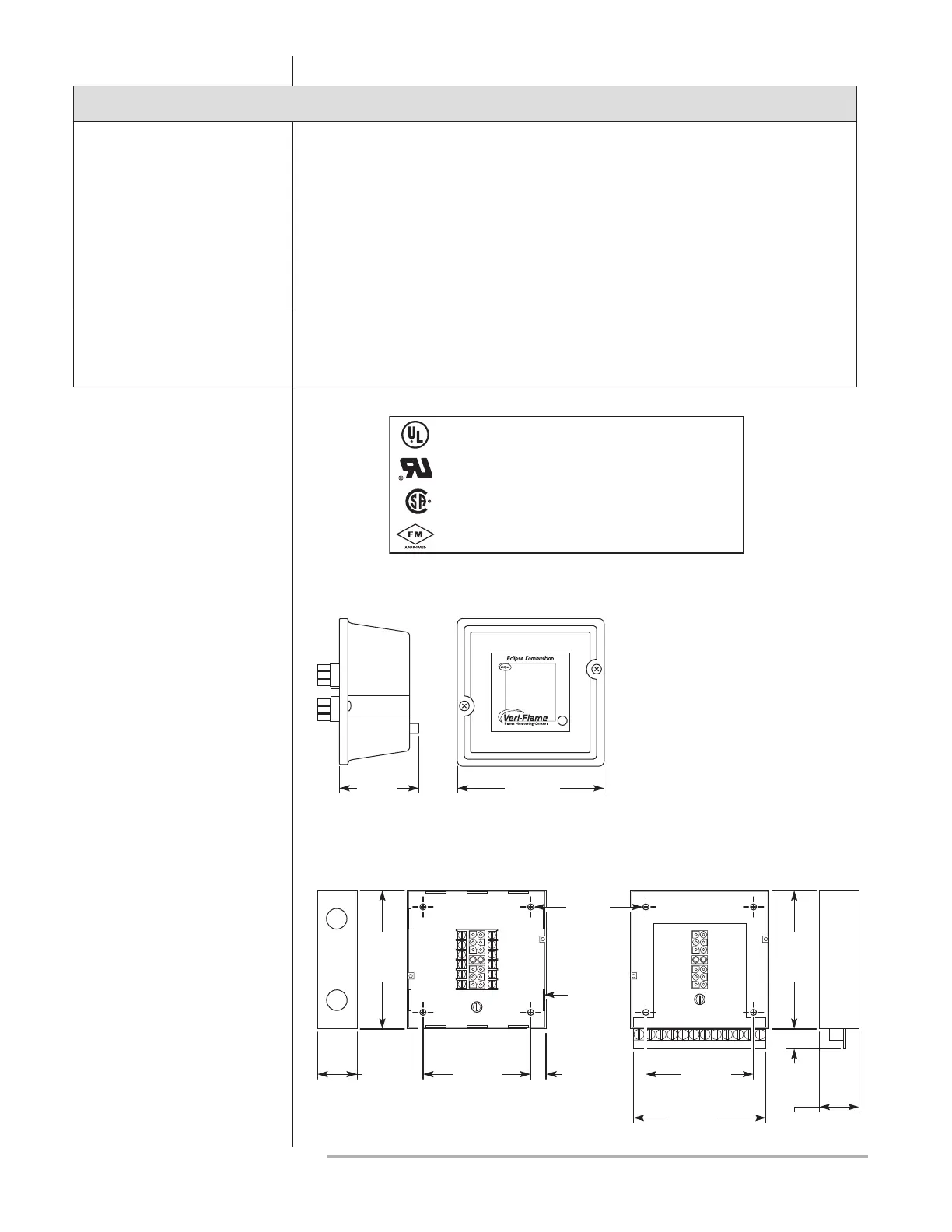

Specications (continued)
parameter DesCription
Approvals • No Purge & Purge Models:
Series 5602: UL listed, CSA certied, FM approved and GE GAP acceptable.
Series 5603: FM approved.
Series 5605: UL listed, FM approved and GE GAP acceptable.
• Modulating Models:
Series 5602: UL recognized (must be mounted in panel), CSA certied, FM
approved and GE GAP acceptable.
Series 5603: FM Approved.
Shipping Weight • 1.4 kilograms (3 lbs.) for all Veri-Flame models.
• 0.9 kilograms (2 lbs.) for Models 5602-10 & 5602-10-1 bases.
• 1.2 kilograms (2.6 lbs.) for Model 5602-40 base.
Dimensions
76mm
(3")
133mm
(5-1/4") Square
102mm
(4") Square
13mm
(1/2")
5.5mm
(7/32") Dia.
Mounting
Holes (4)
Knockouts
(10) for
13mm (1/2"
Conduit
Veri-Flame Unit/All Models
Veri-Flame Bases/Purge & No Purge Models
Model Number 5602-10 Model Number 5602-10-1
102mm
(4") Square
124mm
(4-7/8")
38mm
(1-1/2")
127mm
(5")
Square
38mm
(1-1/2")
127mm
(5")
Square
19mm
(3/4")
(See chart below.)
UL Listed, File MP1537
UL Recognized, File MP1537
CSA Certified, File 007989
FM Approved, File 3013812
Approval Information
