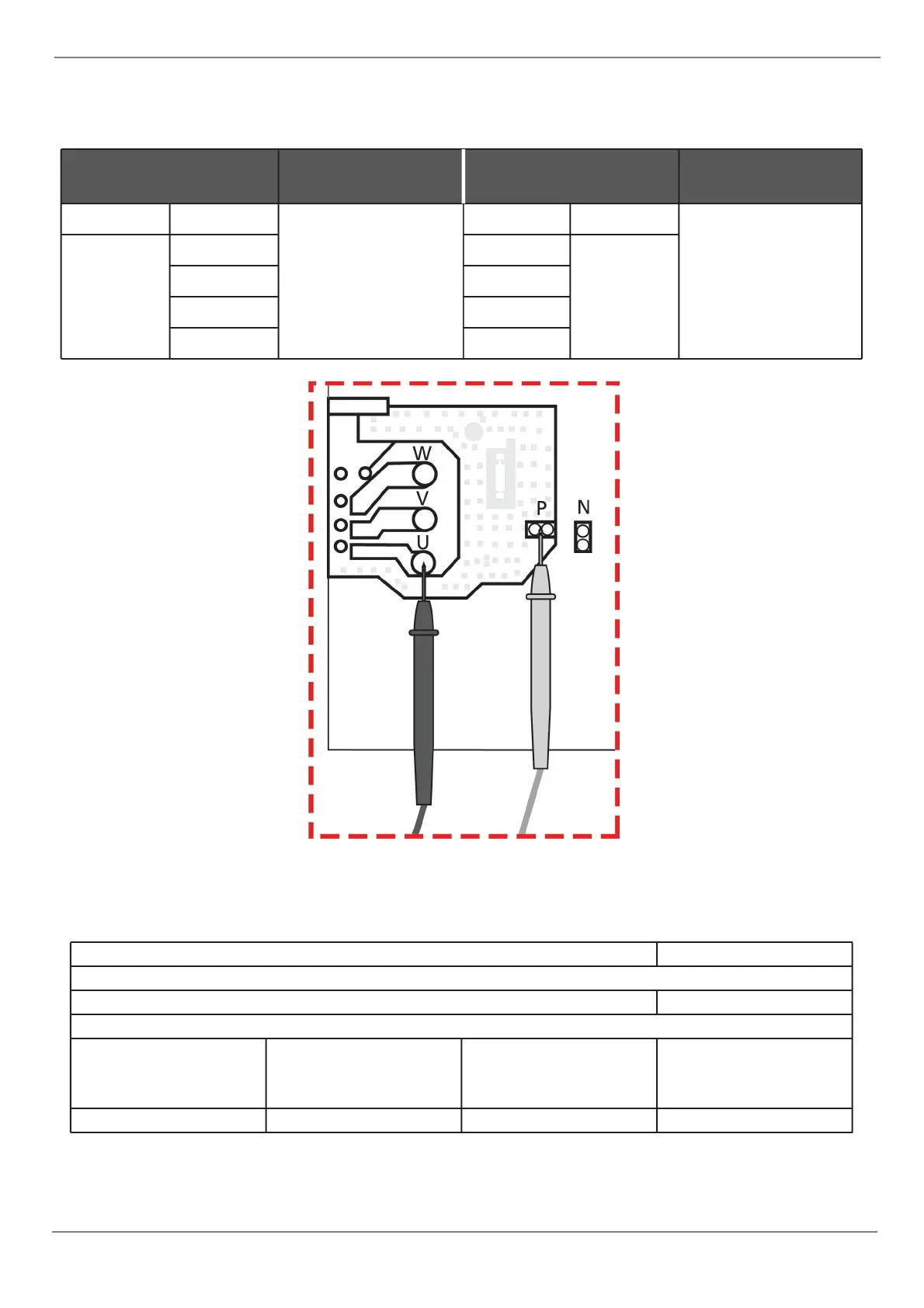

Digital tester
Resistance value
Digital tester
Resistance value
(+)Red
(-)Black
∞
(Several MΩ)
(+)Red
(-)Black
∞
(Several MΩ)
P
N
U
N
U
V
V
W
W
-
Note: The picture and the value are only for reference, actual condition and specific value may vary. Normal
voltage of P and N
208-240V(1-phase,3-phase)
380-415V(3-phase)
In standby
around 310VDC
around 530VDC
In operation
With passive PFC module
With partial active
PFC module
With fully active
PFC module
/
>200VDC
>310VDC
>370VDC
>450VDC
