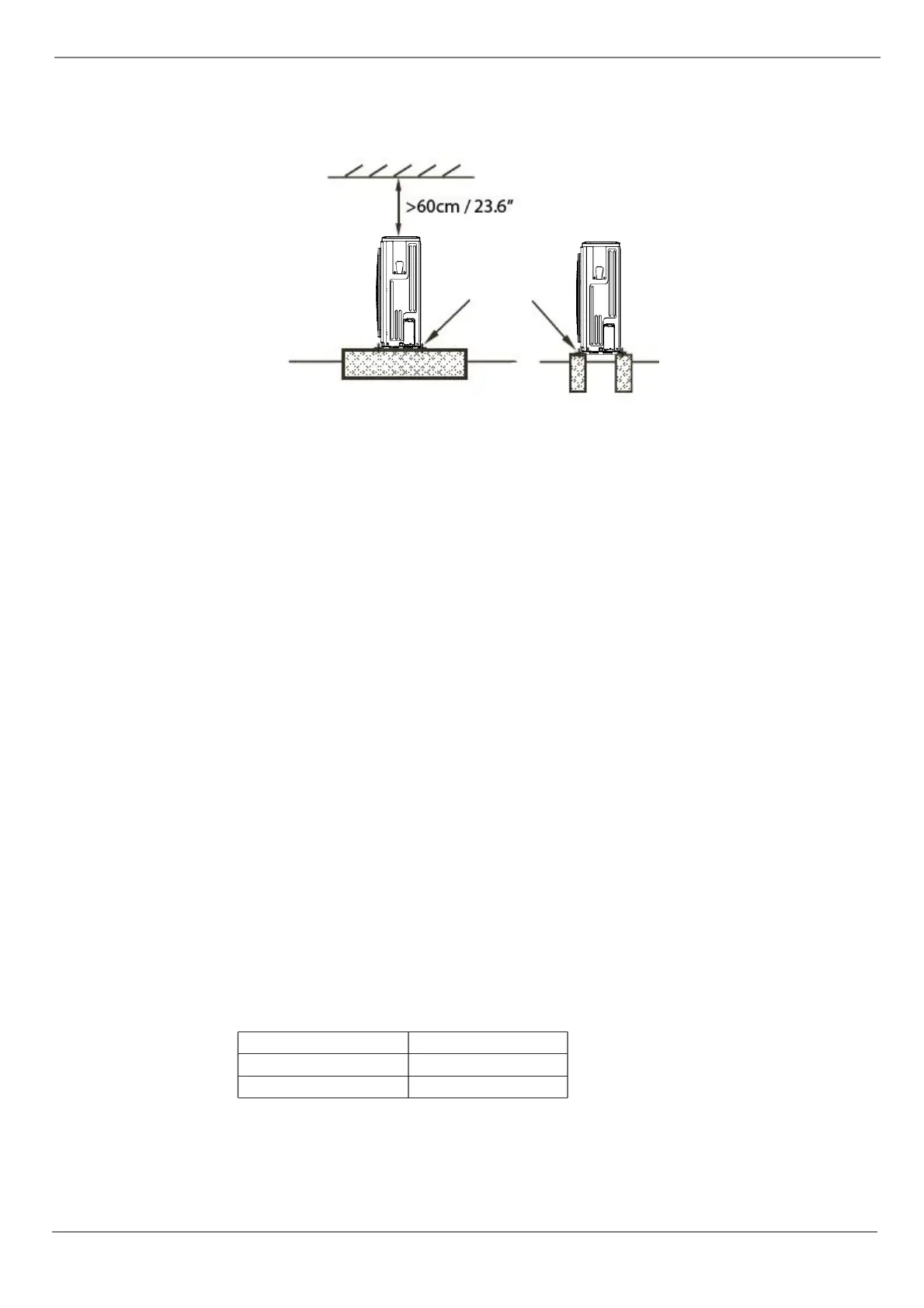

Fix the outdoor unit with anchor bolts(M10)
>60cm / 23.6”
Fix with bolts
Caution
Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45, and do not lay it sidelong.
Make concrete foundation according to the specifications of the outdoor units.
Fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of earthquake or strong wind.
5.4.3 Install Outdoor Unit
Install the drainage pipe as shown below and take measures against condensation. Improperly installation
could lead to leakage and eventually wet furniture and belongings.
2. Drainage pipe selection
5.5 Drainage Pipe Installation
5.5.1 Installation principle
5.5.2 Key points of drainage water pipe installation
1. Considering the pipeline route and elevation.
Relationship between water flowrate and capacity of indoor unit
According to the l ef t table to calculate the total water flowrate for the confluence pipe selection.
• Ensure at least 1/100 slope of the drainage pipe
• Adopt suitable pipe diameter
• Adopt nearby condensate water discharge
• Before installing condensate water pipeline, determine its route and elevation to avoid intersection with other
pipelines and ensure slope is straight.
• The drainage pipe diameter shall not small than the drain hose of indoor unit.
• According to the water flowrate and drainage pipe slope to choose the suitable pipe, the water flow- rate is
decided by the capacity of indoor unit.
