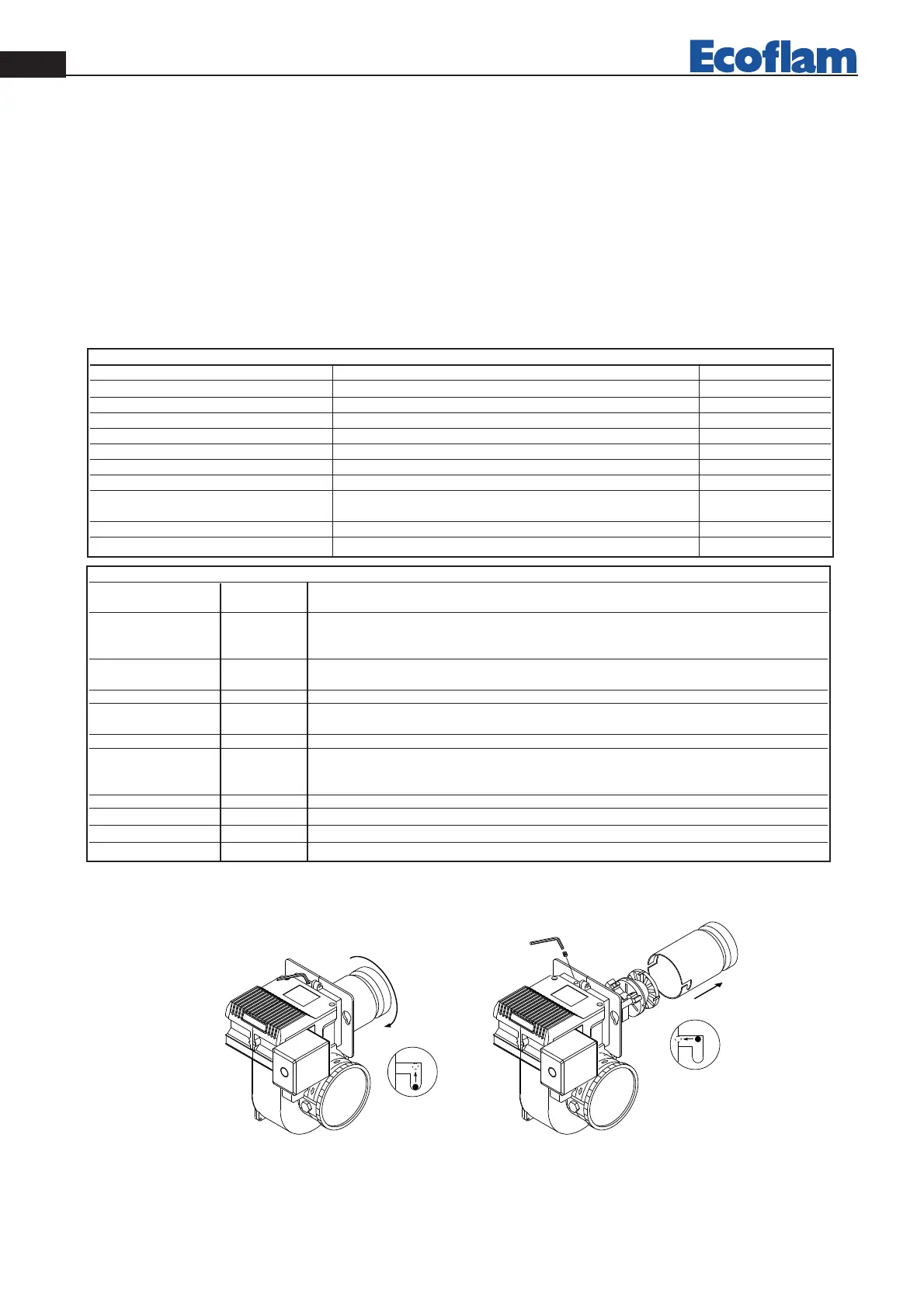

Ecoflam AZUR 40 - Page 8

pag.8
EN
420010749000 Azur 30/40/60/80 Blu 120 P
Color code table for multicolor signal lamp (LED)
Status Color code Color
Waiting time «tw», other waiting states ❍ ................................................................................... Off
Ignition phase, ignition controlled ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ Flashing yellow
Operation, flame o.k. ❑................................................................................... Green
Operation, flame not o.k. ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ Flashing green
Extraneous light on burner startup ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ Green-red
Undervoltage ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ Yellow-red
Fault, alarm ▲................................................................................... Red
Error code output (refer to «Error code
table») ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ Flashing red
Interface diagnostics ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ Red flicker light
Legend: ....... Steady on ▲ Red ❑ Green ❍ Off ● Yellow
AGK25... PTC resistor
AL Error message (alarm)
V... Fuel valve
CPI Closed Position Indicator
DBR... Wire link
EK Lockout reset button (internal)
EK2 Remote lockout reset button
ION Ionization probe
FS Flame signal
FSV Flame signal amplifier
GP Pressure switch
H Main switch
HS Auxiliary contactor, relay
K1...4 Internal relays
KL Low-fire
LK Air damper
LKP Air damper position
LP Air pressure switch
LR Load controller
M Fan motor
R Control thermostat / pressurestat
SA Actuator
STB Safety limit thermostat
Si External pre-fuse
t Time
W Limit thermostat / pressure
switch
Z Ignition transformer
ZV Pilot gas valve
A Start command (switching on
by «R»)
B-B´ Interval for establishment of
flame
C Operating position of burner
reached
C-D Burner operation (generation
of heat)
D Controlled shutdown by «R»
t1 Prepurge time
t3 Preignition time
t3n Postignition time
t4 Interval between ignition
«Off» and release of «V2»
t10 Specified time for air pressure
signal
t11 Programmed opening time for
actuator «SA»
t12 Programmed closing time for
actuator «SA»
TSA Ignition safety time
tw Waiting time
Error code table
Red blink code of «AL» at Possible cause
signal lamp (LED)) term. 10
2 blinks on No establishment of flame at the end of «TSA»
- Faulty or soiled fuel valves - Faulty or soiled flame detector
- Poor adjustment of burner, no fuel - Faulty ignition equipment
3 blinks on «LP» faulty
- Loss of air pressure signal after «t10», - «LP» welded in normal position
4 blinks on Extraneous light when burner is started up
5 blinks on Time out «LP»
- «LP» welded in working position
6 blinks on Free
7 blinks on Too many losses of flame during operation
(limitation of the number of repetitions)- Faulty or soiled fuel valves.
- Faulty or soiled flame detector - Poor adjustment of burner.
8 blinks on Free
9 blinks on Free
10 blinks off Wiring error or internal error, output contacts, other faults.
14 blinks on CPI contact not closed
BLAST TUBE DISASSEMBLY
