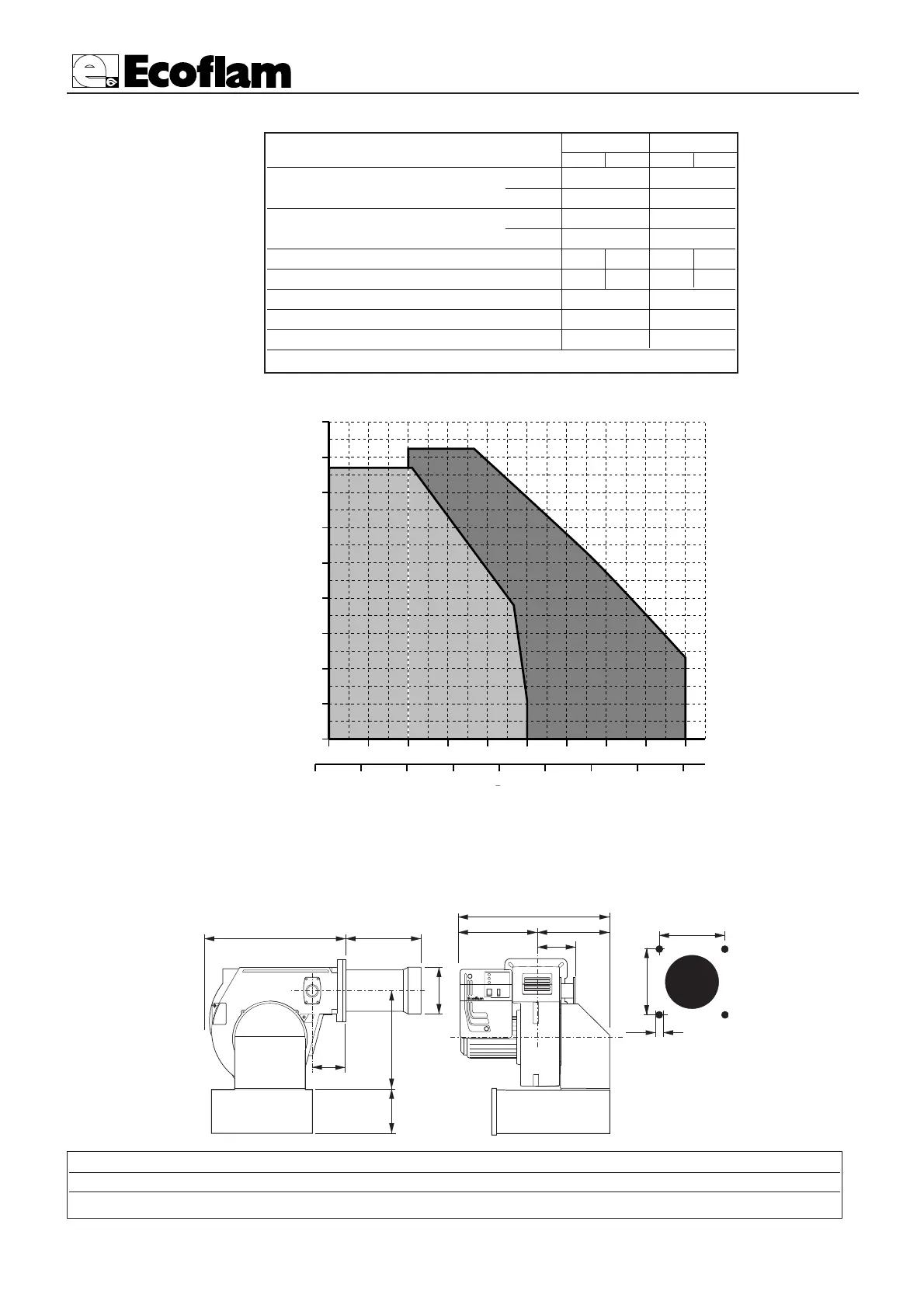

Ecoflam BLU 500 P - Burner Specifications and Dimensions; Burners Operating Features; Working Fields Graph; Overall Dimensions

pag.7
LB 447 Blu 500 ÷ 700 P B
250 300 350 400 450 500 550 600 650 700
0
1
2
3
4
5
6
7
8
9
200 250 300 350 400 450 500 550 550
Potenza
Pressione in camera di combustione
kW
kcal
x1000
mbar
BLU 500 P BLU 700 P
BLU 500 P BLU 700 P
WORKING FIELDS
Burners operating features mod. Blu 500 P Blu 700 P
Metano G.P.L. Metano G.P.L
Termal power max. kW 500 700
kcal/h 430.000 602.000
Termal power min. kW 250 350
kcal/h 215.400 301.000
Max. gas pressure mbar 25 45 25 45
Min. gas pressure mbar 17 20 17 20
Voltage 50Hz V 230 / 400 230 / 400
Motor kW 0,55 0,74
Rpm N° 2800 2800
Gas family II 2H 3+
Output
Backpressure in comb. chamber
G
M
L
I
F
D - D1E
CB
A
H
N
O
MODELS A B C D D1 E F G H I L M N O
BLU 500 P 650 330 320 170 330 555 160 385 225• 190 190 M10 115 165
BLU 700 P 650 330 320 170 390 555 180 385 225• 190 190 M10 115 165
D = short head D1 = long head
•= ( OPTOIONAL)
Dimensions (mm)
OVERALL DIMENSIONS
