Ecoflam MINOR 4.1/R User Manual

MINOR 4.1
20 30 40 50 60 70 80 90 100 110 120 130 140
123456789101112
mbar
kcal/h
x 1000
kg/h
kW
MINOR 12.1
10 20 30 40 50 60 70 80 90 100 110 120
MINOR 8.1
0
1
2
3
pag.7

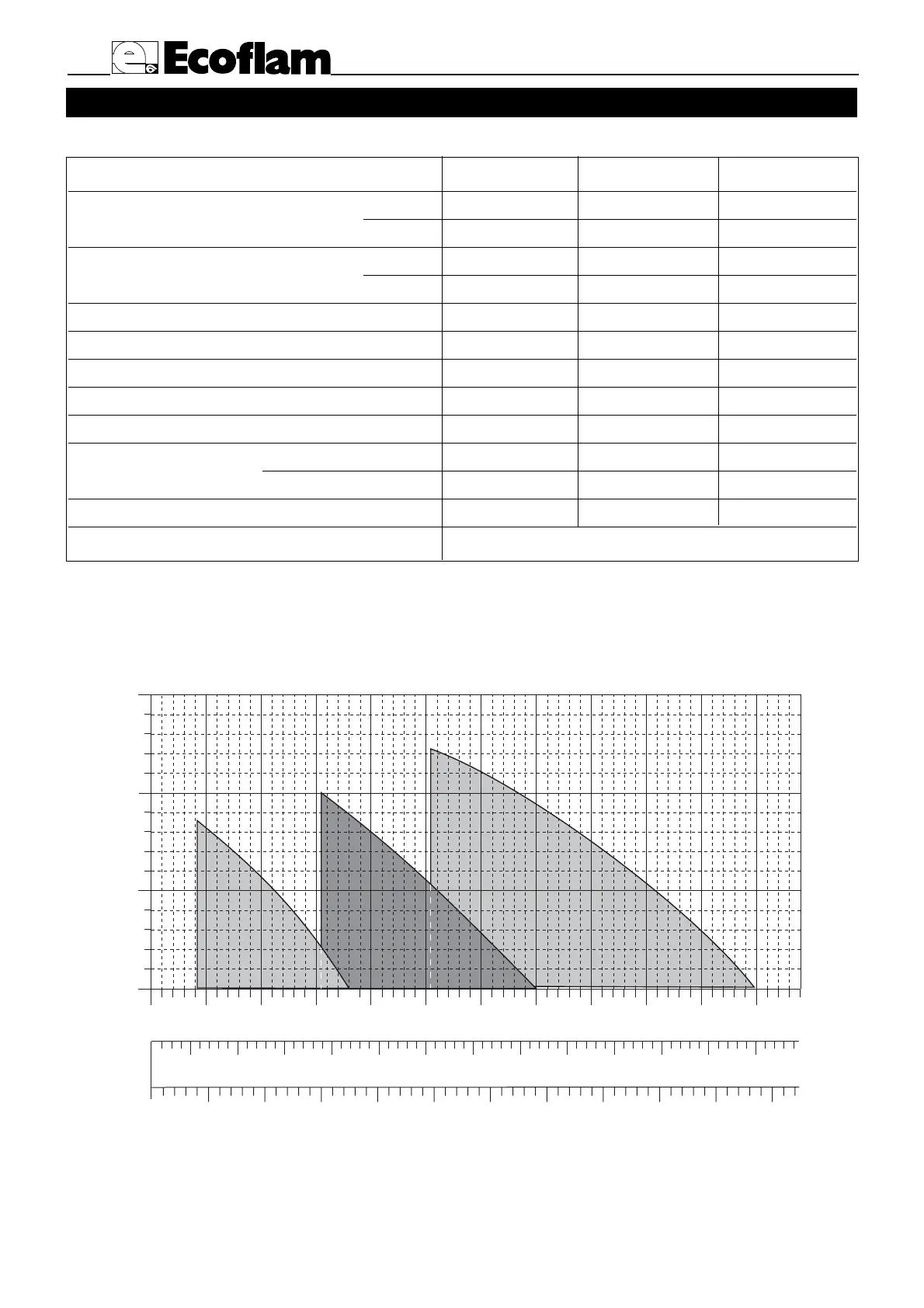

LB752 Minor 4.1/8.1/12.1 - R
B
TECHNICAL DATA
WORKING FIELDS
PRESSURE IN THE COMBUSTION CHAMBER
BURNER OUTPUT
MODELS MINOR 4.1/ R MINOR 8.1/ R MINOR 12.1/ R
Thermal power max. kcal/h 45.900 81.600 122.400
kW 53,4 94,9 142,3
Thermal power min. kcal/h 18.330 40.800 61.200
kW 21,3 47,4 71
Max. flow rate light oil kg/h 4,5 8 12
Min. flow rate light oil kg/h 1,8 4 6
Feeding power 50 Hz V 230 230 230
Motor W 75 100 130
Rpm Nº 2.800 2.800 2.800
Ignition transformer (Cofi) kV/mA 8/20 8/20 8/20
(Danf./Land.) kV/mA 15/40 15/40 15/40
Control box LANDIS LOA 24 LOA 24 LOA 24
Fuel : light oil kcal/kg 10.200 max. visc 1,5°E a 20°C

Ecoflam MINOR 4.1/R Specifications

General

Brand	Ecoflam
Model	MINOR 4.1/R
Category	Burner
Language	English
