LB752 Minor 4.1/8.1/12.1 - R

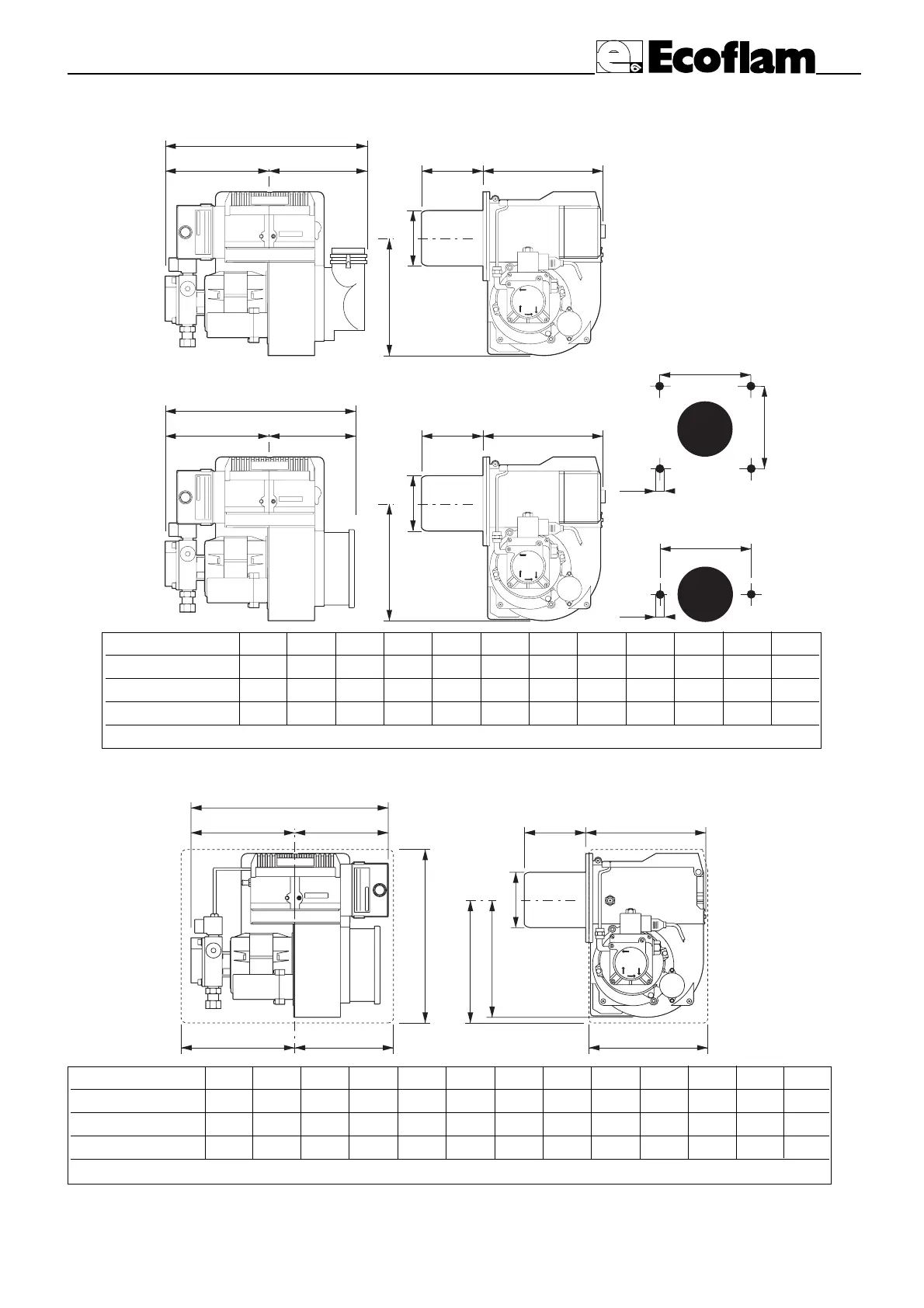

OVERALL DIMENSIONS
A
CB D (D1)E
F
G
180 150 220
280
O
MODELS A B C D D1 E F G H I L M O
MINOR 4.1 /R cr 320 145 175 75 130 205 89 195 153 110 110 M8 205
MINOR 8.1 /R cr 320 145 175 75 130 205 89 195 153 110 110 M8 205
MINOR 12.1 /R cr 320 145 175 95 150 205 89 195 153 110 110 M8 205
D = short head D1 = long head
MODELS A B C D D1 E F G H I L M
MINOR 4.1 /R 340 165 175 75 130 205 89 195 153 110 110 M8
MINOR 8.1 /R 320 145 175 75 130 205 89 195 153 110 110 M8
MINOR 12.1 /R 320 145 175 95 150 205 89 195 153 110 110 M8
D = short head D1 = long head
MINOR 4.1-8.1-12.1 /R cr
H
I
M8
L
M8
WITHOUT METAL FLANGE
A
CB D (D1)E
F
G
A
CB D (D1)E
F
G
130
130
152
MINOR 8.1-12.1 /R
MINOR 4.1 /R
