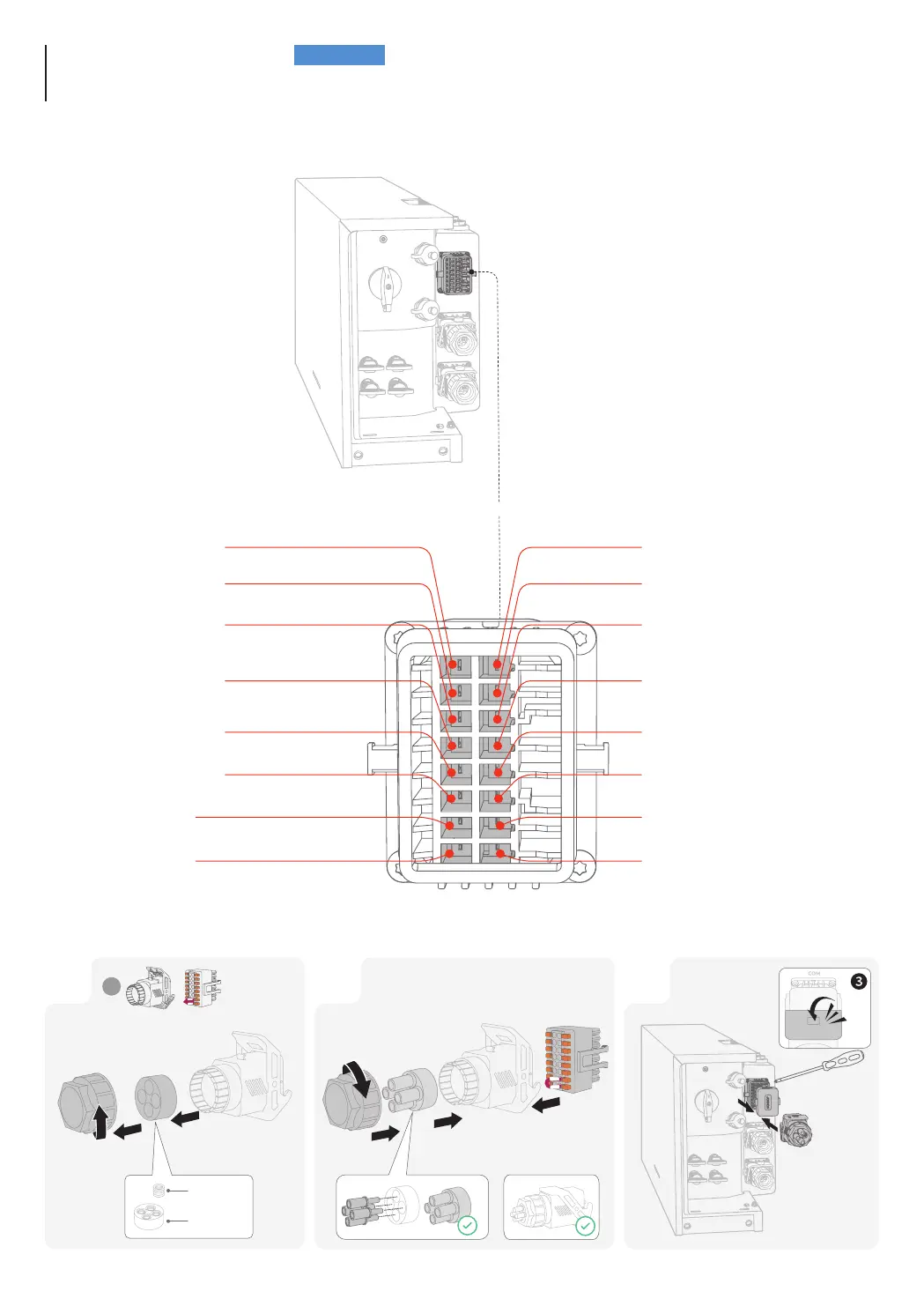

12|



5 CAN3H

Inverter cascading communication H

(Reserved)

6 SG_Ready21

7 CAN3L

Inverter cascading communication L

(Reserved)

Inverter cascading communication H

Inverter cascading communication L

Meter communication

Inverter cascading sync signal grounding

Sync signal

Emergency Stop Input

8 SG_Ready22

9 CANH 10 AGND1

11 CANL 12 SYN

13 485A1 14 EPO1_dry1

15 485B1 16 AGND1

1 CAN0H

3 CAN0L

2 SG_Ready11

4 SG_Ready12

• COM terminal supports logic interface connection. Logic interface is required by

some local regulations that can be operated by a simple switch or contactor.

• When the switch is closed, the inverter can operate normally.When the switch is

opened, the inverter will reduce its active power to zero within 5s.

• Pin14 and Pin16 of COM terminal is used for the logic interface conneaction.



Installing

COM Connector With

Shorting Wire

×1

D:4-8mm

D:8-11mm

❷



❶

Remove

protective

cap with a

screwdriver
