|17
A4
1

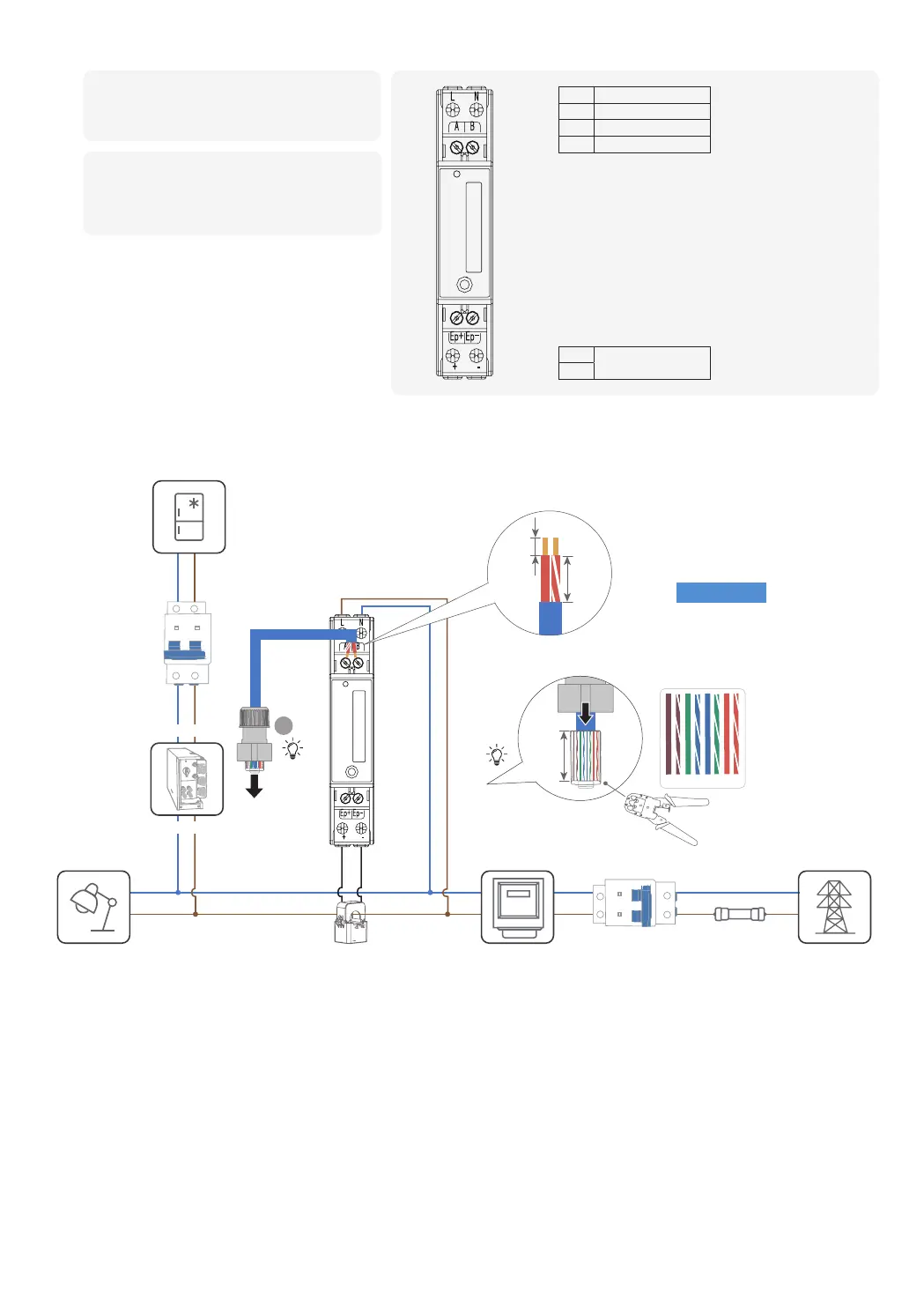

Access the home main line and connect the smart
meter as shown in the diagram.
2
Connect communication port A, B on the meter
to the METER port of inverter.
L Grid L
N Grid N
A RS485 A
B RS485 B
I+
Grid L CT
I-
Utility gridUtility meter FuseAC breakerNon-controllable load
II II
II
II
AC breaker
BACKUP
Backup load
METER
GRID
CT
T568B
• Run the cable through the
waterproof housing to the
RJ45 connector before
crimping.
8 7 6 5 4 3 2 1
10-20 mm
Hybrid
inverter
To Next Page
