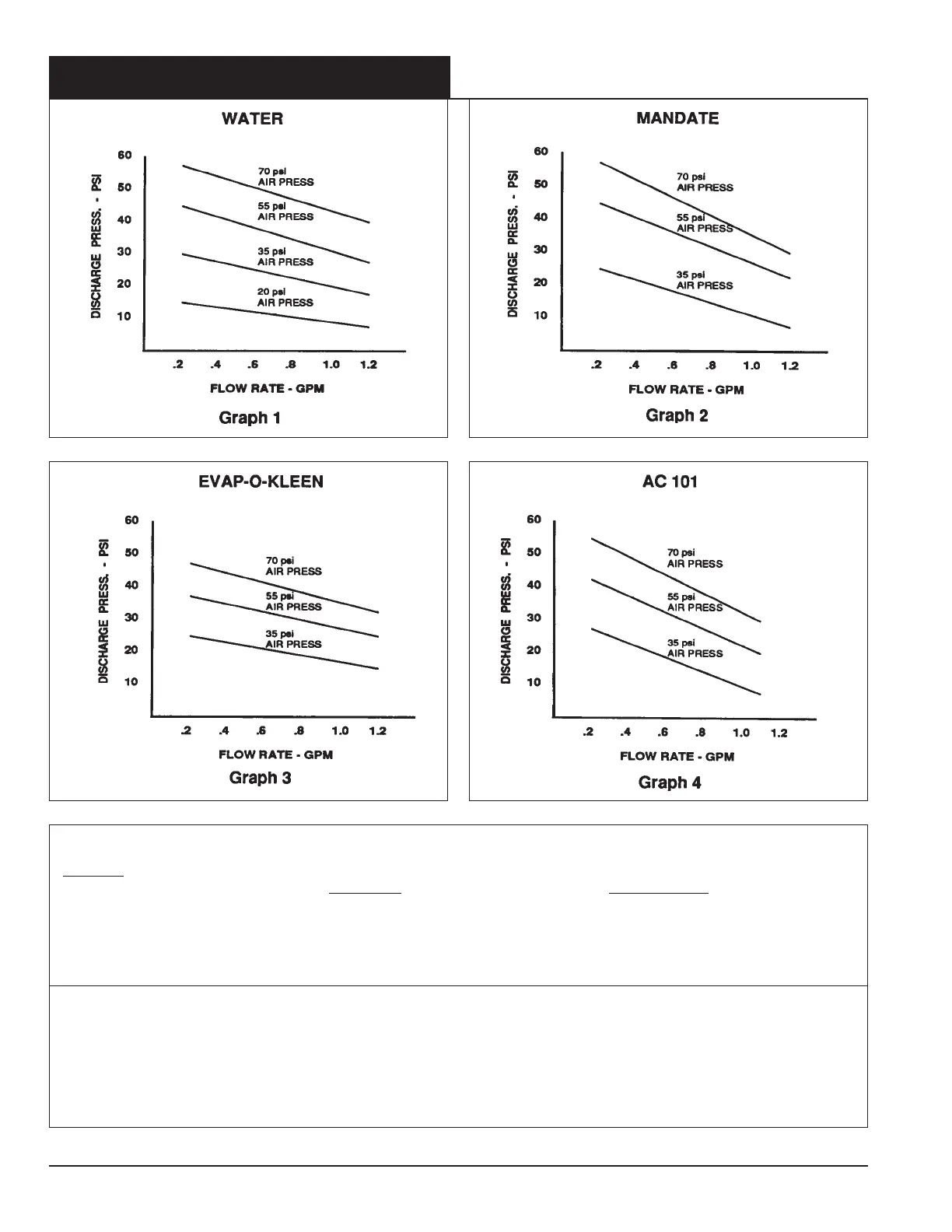

11.0 GRAPHS AND TABLES
The following orifice flow rate information is to be used as a guide.
ORIFICE AIR PRESS. PRODUCT FLOW RATE
-psig (bar) oz/min. (cc/m)
25 (1.7) 15 (440)
30 (2.1) 17.6 (520)
#56 DRILL 40 (2.8) 22.7 (670)
50 (3.4) 27.4 (810)
25 (1.7) 21 (620)
30 (2.1) 25 (740)
#55 DRILL 40 (2.8) 29.4 (870)
50 (3.4) 33.8 (1000)
TABLE 1
