2
3.1 Dimensions
• Height: 13-1/2 in. (34.3 cm)
• Length: 11-1/8 in. (28.3 cm)
• Width: 5-5/8 in. (14.3 cm)
3.2 Services Required
Compressed air: MAX 120 psig. (8.3 bars)
MIN. 80 psig (5.5 bars)
AIR FLOW 9 scfm (4.2 dm
3
/s) MIN.
Electrical: 110/120 VAC, 50/60 Hz Control signal
WARNING: - The supply air line must not contain an air
lubricator.
3.0 SPECIFICATIONS
3.3 Equipment Supplied
The Multiple Pump Pneumatic Controller is supplied with a
1/4" ball valve and 5 micron filter for the supply air. It contains
a 5 station manifold, with three stations having pump control
solenoids, regulators and two blanks for additional solenoids
and regulators.
The Multiple Pump Pneumatic Controller has an octal socket
for a 24 VAC relay and 10 point terminal block for the 120 VAC
control signal.
Four wall mounting anchors and screws are included.

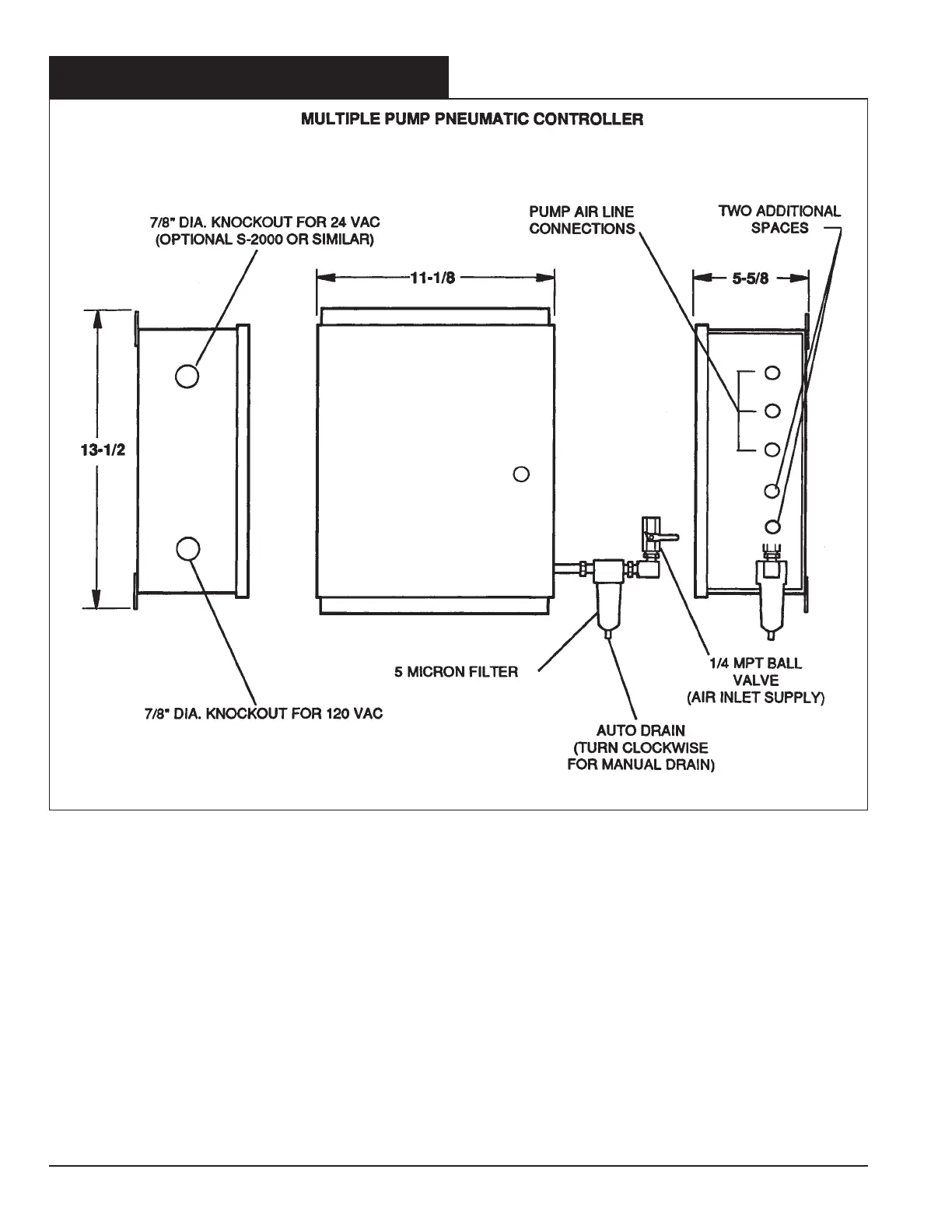

Figure 1
