Ecolab POSITRONIC IV - Single Pump Controller Specifications; Single Pump Controller Dimensions; Single Pump Controller Services; Single Pump Controller Equipment

3
3.1 Dimensions
• Height: 9 in. (22.9 cm)
• Length: 8-3/4 in. (22.2 cm)
3.2 Services Required
Compressed air: MAX 120 psig (8.3 bars)
MIN. 80 psig (5.5 bars)
AIR FLOW 3 scfm (1.4 dm
3
/s) MIN.
Electrical: 110/120 VAC, 50/60 Hz.
WARNING: - The supply air line must not contain an air
lubricator.
3.3 Equipment Supplied
This controller is supplied with a 1/4" ball valve and an air
regulator with a 5 micron filter for the supply air, a pump control
solenoid, and a 4x4x2 PVC junction box. Four 8-32 x 1/2"
mounting screws are included. A length of 1/4" O.D. plastic
tubing for the pump air line is supplied.
3.0 SPECIFICATIONS (con't.)

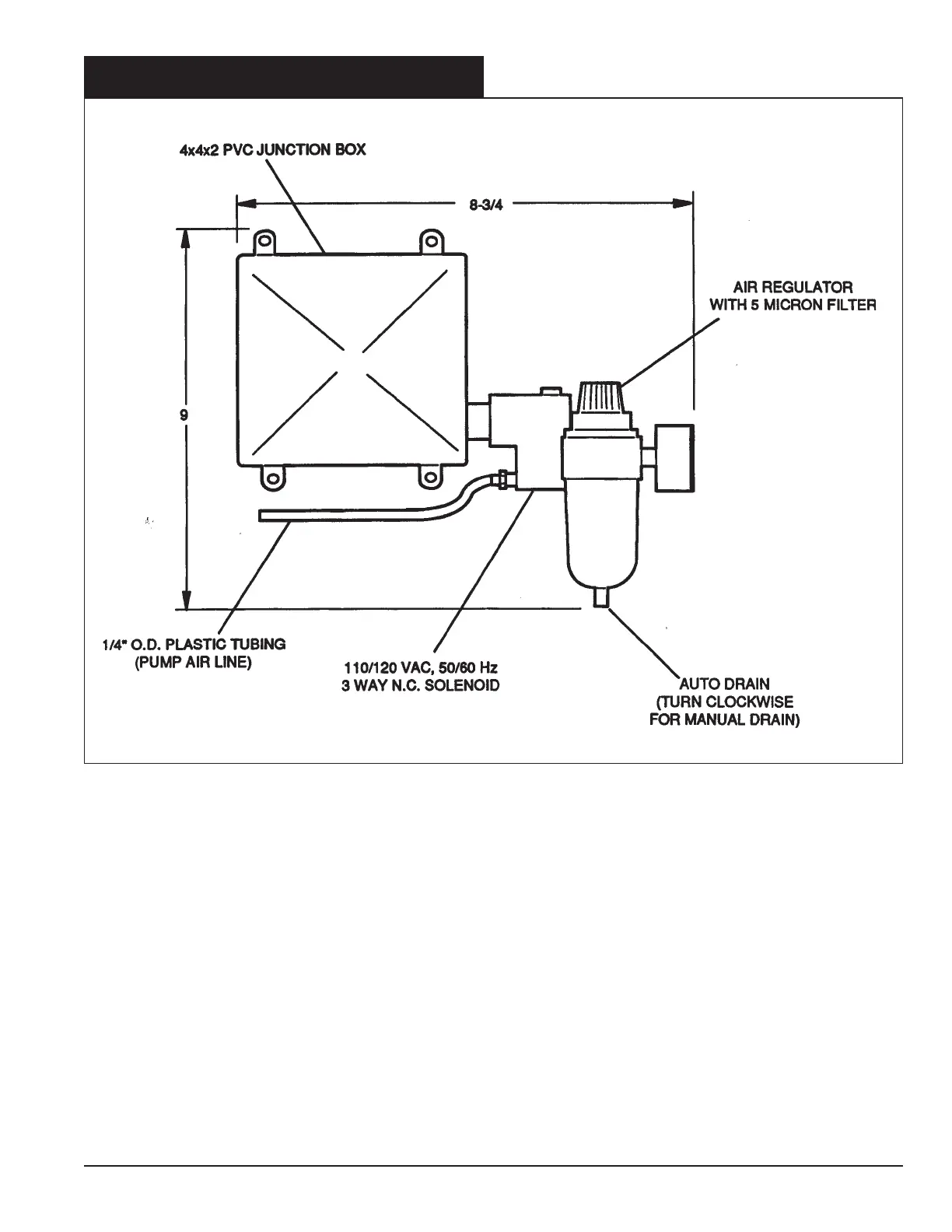

Figure 2
SINGLE PUMP PNEUMATIC CONTROLLER
