3.1 Dimensions (Pump Shelf with Pump-Figure 3)
• Height: 8-1/4 in. (21 cm)
• Length: 7-3/4 in. (19.7 cm)
• Width: 9-1/2: (24.1 cm)
3.2 Services Required
Compressed air: MAX 70 psig (4.8 bars)
AIR FLOW 3 scfm (1.4 dm
3
/s)
The compressed air is received from the pneumatic controller.
3.3 Equipment Supplied
One pump is supplied with the pump shelf. Supplied for the
pump are the product inlet and outlet elbows and the air
connection fitting. Included with the pump shelf are the mount-
ing fasteners.
3.0 SPECIFICATIONS (con't.)
3.1 Dimensions (Pump Bracket - Figure 4)
• Height: 4-3/8 in. (11.1 cm)
• Length: 23-1/8 in. (58.7 cm)
• Width: 3/4 in. (1.9 cm)
3.2 Description
This bracket is capable of supporting (3) pump shelves.

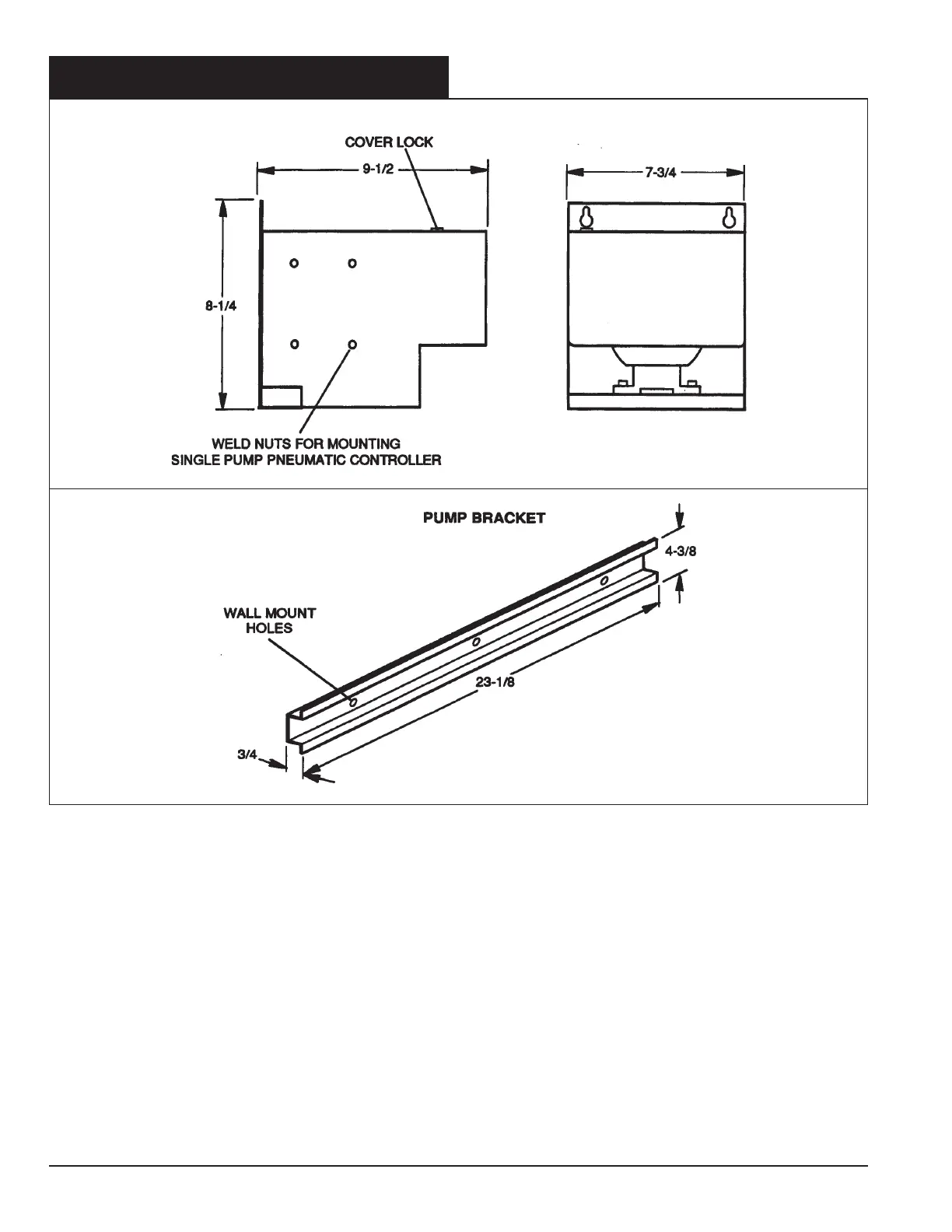

PUMP SHELF WITH PUMP
Figure 3
Figure 4
