17. APPENDIX 2 – ECD2600 EX / ECD2800 EX WITH OPTICAL
CONNECTORS
Detectors ECD2600 and ECD2800 are also produced in version with external connection of cell
using fiber optic cables, as ECD2600 EX (Cat.No.: ADBEX00X) and ECD2800 EX (Cat. No.:
ADAEX00X). These detector versions have differences from basic unit as described in this
chapter.

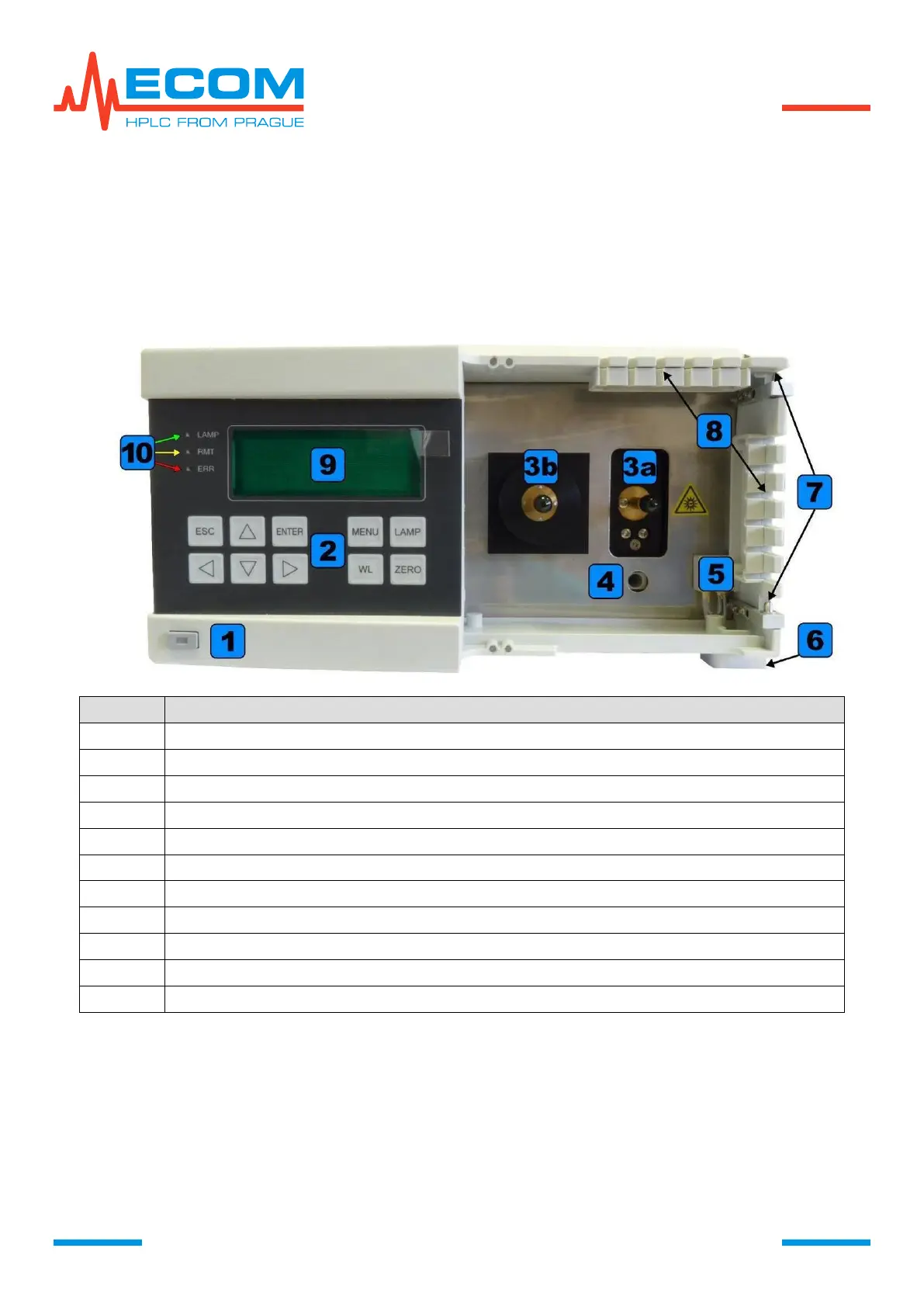

No.
Description
1
Front switch.
2
Keyboard.
3a
Output for optical cables (light source).
3b
Input for optical cables (light sensor).
4
Drain from cell compartment.
5
Leakage sensor.
6
Drain channel with cone for connecting waste system.
7
Door hinges.
8
Slots for tubing and capillaries.
9
Display.
10
Status LED lights.
