Smart Thermostat User Guide 18> Return to Table of Contents
Status

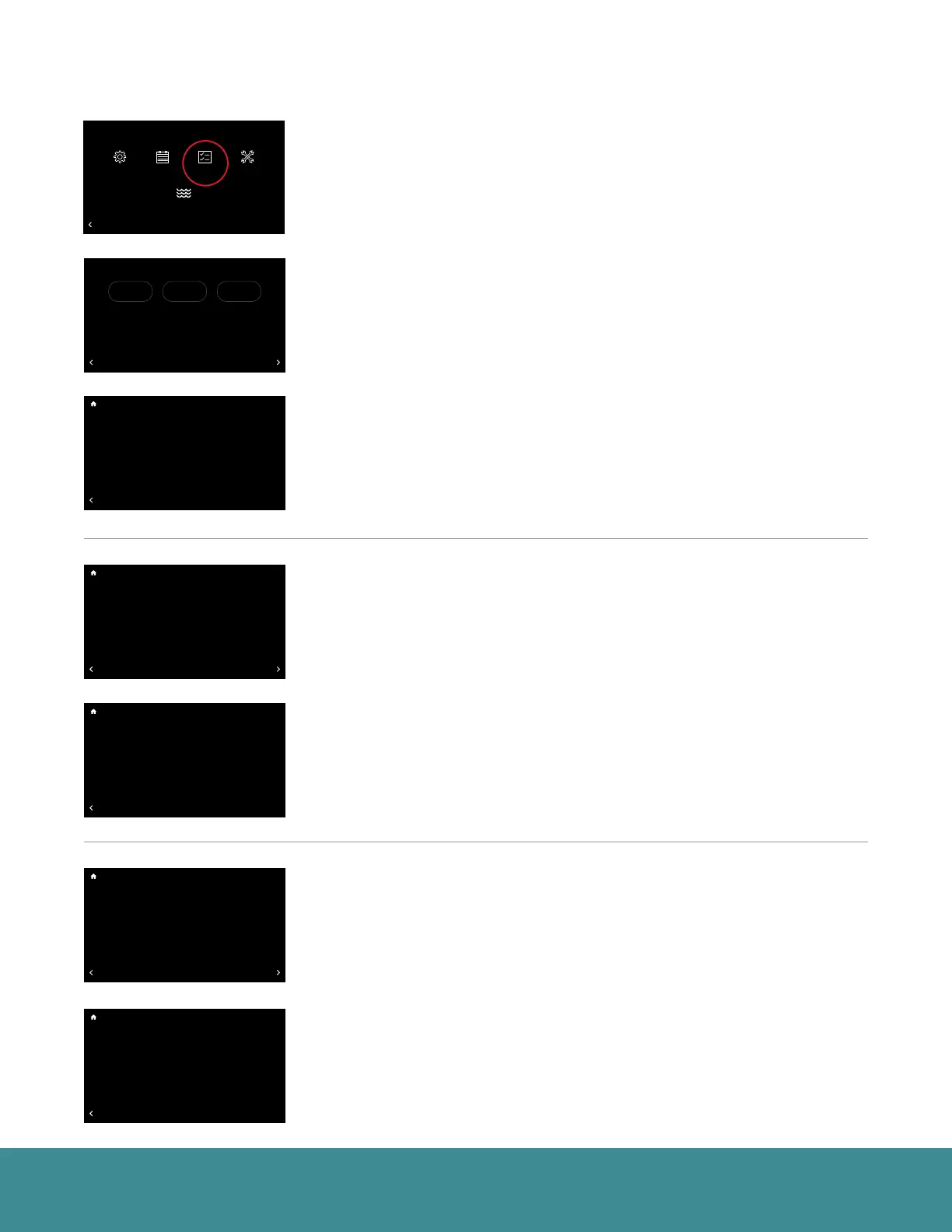

Tapping Menu > Status will display the connected communicating
equipment, thermostat mode and the equipment operating status.
Selecting Furnace, Air Handler or AC/HP on the Status screen will display
each piece of equipment’s current operating status and historical cycles and
run times.
Furnace Status – Displays detailed furnace operation information including
two week and lifetime cycles, as well as run time hours.
AC/HP Status – Displays detailed AC/HP operation information including two
week and lifetime cycles, as well as run time hours.
Air Handler Status – Displays detailed air handler operation information
including two week and lifetime cycles, as well as run time hours.
