2. TECHNICAL DATA

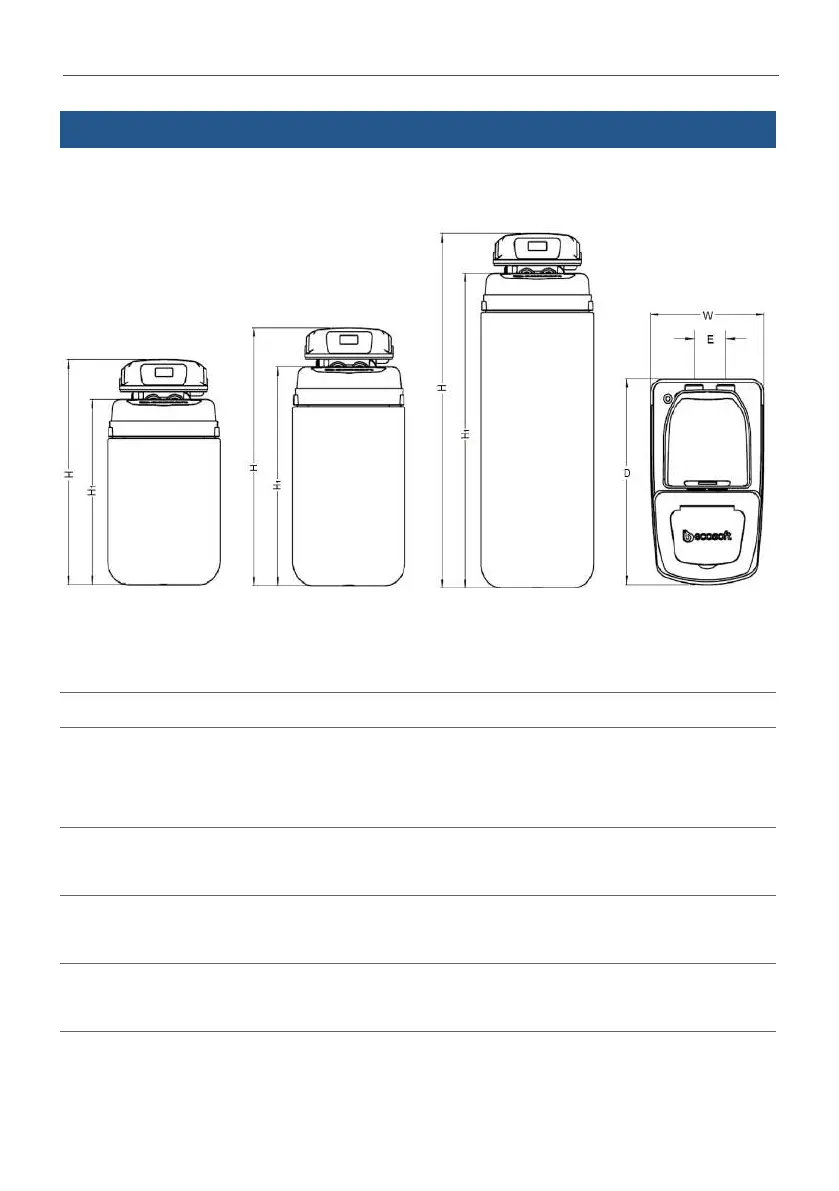

2.1 Cabinet dimensions
Control valve port sizes (port height**, mm) Dimensions*, mm
Model
Water
Inlet
Water
Outlet
Drain
Outlet
Brine
Inlet
E
(distance
between
Inlet /
Outlet)
W D H H
1
FU1013CABDVUP
1″ M
(540)
1″ M
(540)
¾″ M
(640)
⅜″ CF
(640)
78 270 430 469 387
FU1016CABDVUP
1″ M
(970)
1″ M
(970)
¾″ M
(1070)
⅜″ CF
(1070)
78 270 430 539 457
FU1024CABDVUP
1″ M
(970)
1″ M
(970)
¾″ M
(1070)
⅜″ CF
(1070)
78 270 430 741 659
