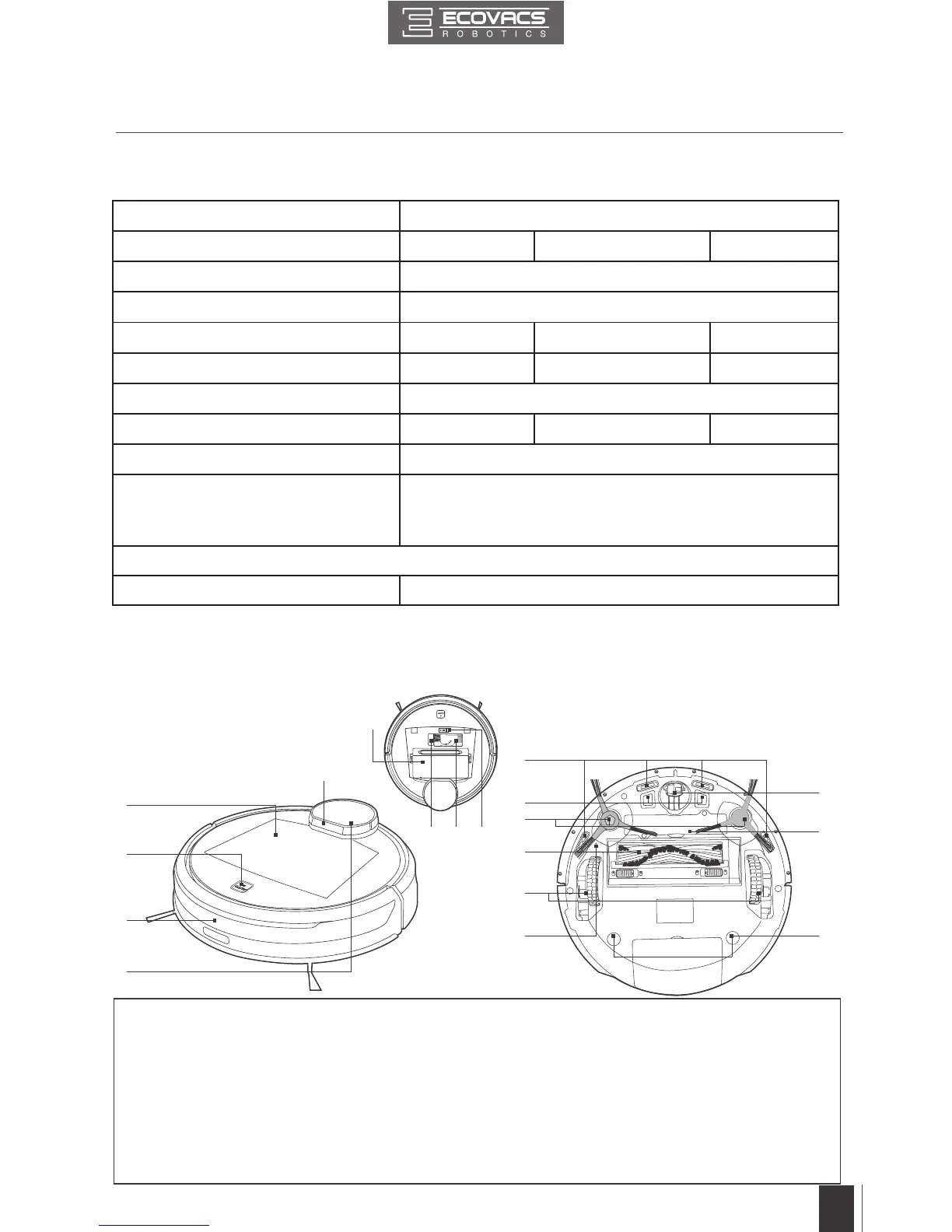

2. Package Contents and Technical Specifications
*
Technical and design specications may be changed in the course of continuous product improvement.
2.2 Specifications
2.3 Product Diagram
Robot
1
4
6
7
8
9
10
15
11
12
17
2
3
1. Top Cover
2. AUTO Mode Button
3. Anti-Collision Sensors
and Bumper
4. LDS (Laser Distance Sensor)
5. LDS Bumper
6. Anti-Drop Sensors
7. Charging Contacts
8. Side Brushes
9. Main Brush
10. Driving Wheels
11. Universal Wheel
12. Battery Pack with Screws
13. Upgrade Port
14. Multi-Function Cleaning
Tool
15. RESET Button
16. Power Switch
17. Cleaning Cloth Plate Slots
18. Dust Bin
13
5
14 16
18
Model DR98
Working Voltage
14.8V DC
Rated Power 50W
Battery Lithium Battery SC 2850mAh
Charging Dock Model CH1459A
Rated Input Voltage 24V DC Rated Output Voltage
24V DC
Rated Output Current 3.5A Rated Power 90W
Handheld Vacuum Cleaner ZJ1458
Rated Input Voltage
18.5V DC
Rated Power 130W
Handheld Vacuum Cleaner Battery Lithium 2 000mAh
Laser
Max.Power 2.5mW
Frequency 1.8KHz
Rotate Speed 300±5 circle/min
Power Adapter: EA10952-240
Input: 100-240V AC 50/60Hz 2.5A Output: 24V DC 3.75A
