Installing the Motherboard
Checking Jumper Settings

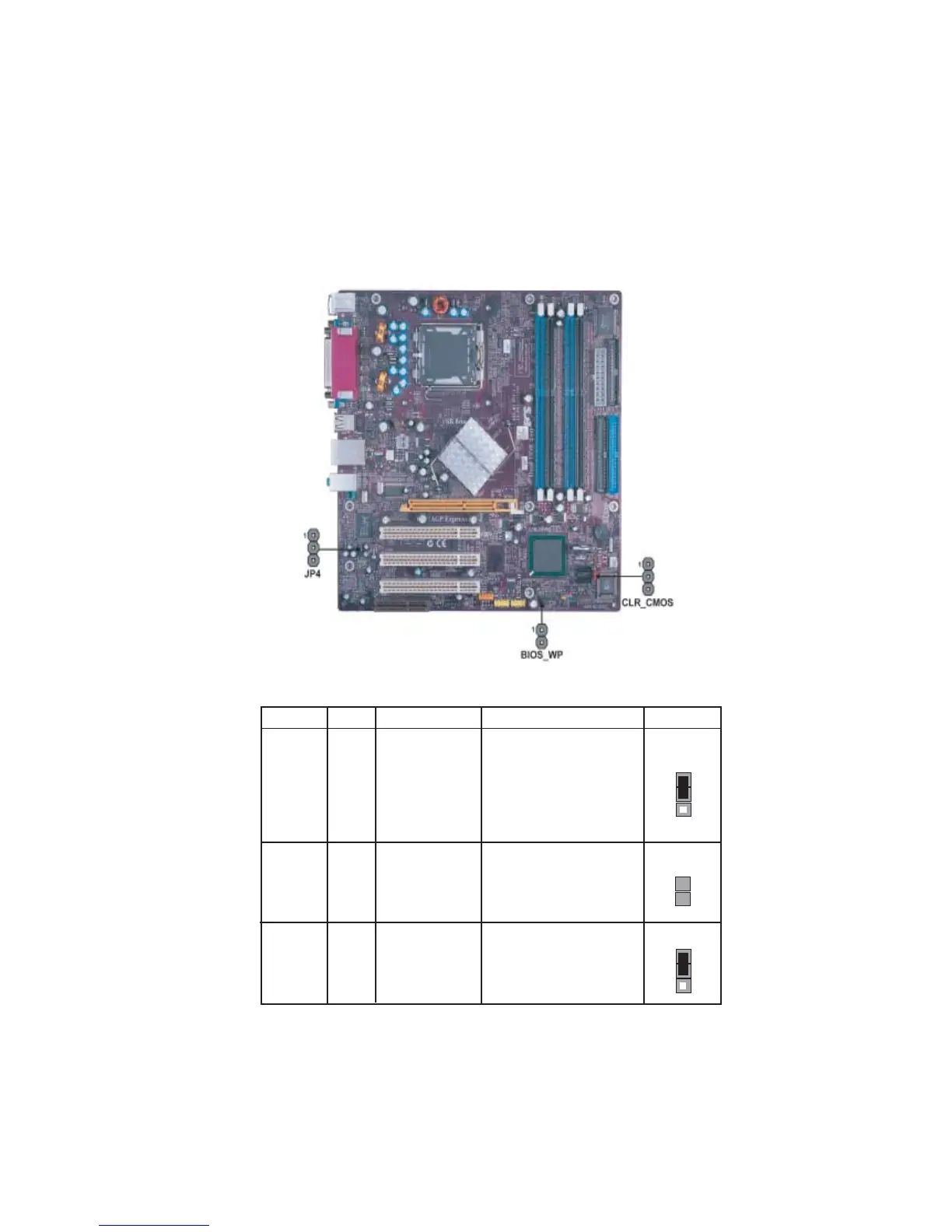

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
T
ype
Description
Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
OPEN: DISABLE
SHOR
T
: ENABLE
BIOS PROTECT
2-pin
BIOS_WP
Before clearing the CMOS,
make sure to turn off the sys-
tem.
Clear CMOS
1
BIOS_WP
1
JP4
3-pin
LAN FUNCTION
1-2: ENABLE
2-3: DISABLE
1
JP4
14
16
