9
Installing the Motherboard
Checking Jumper Settings

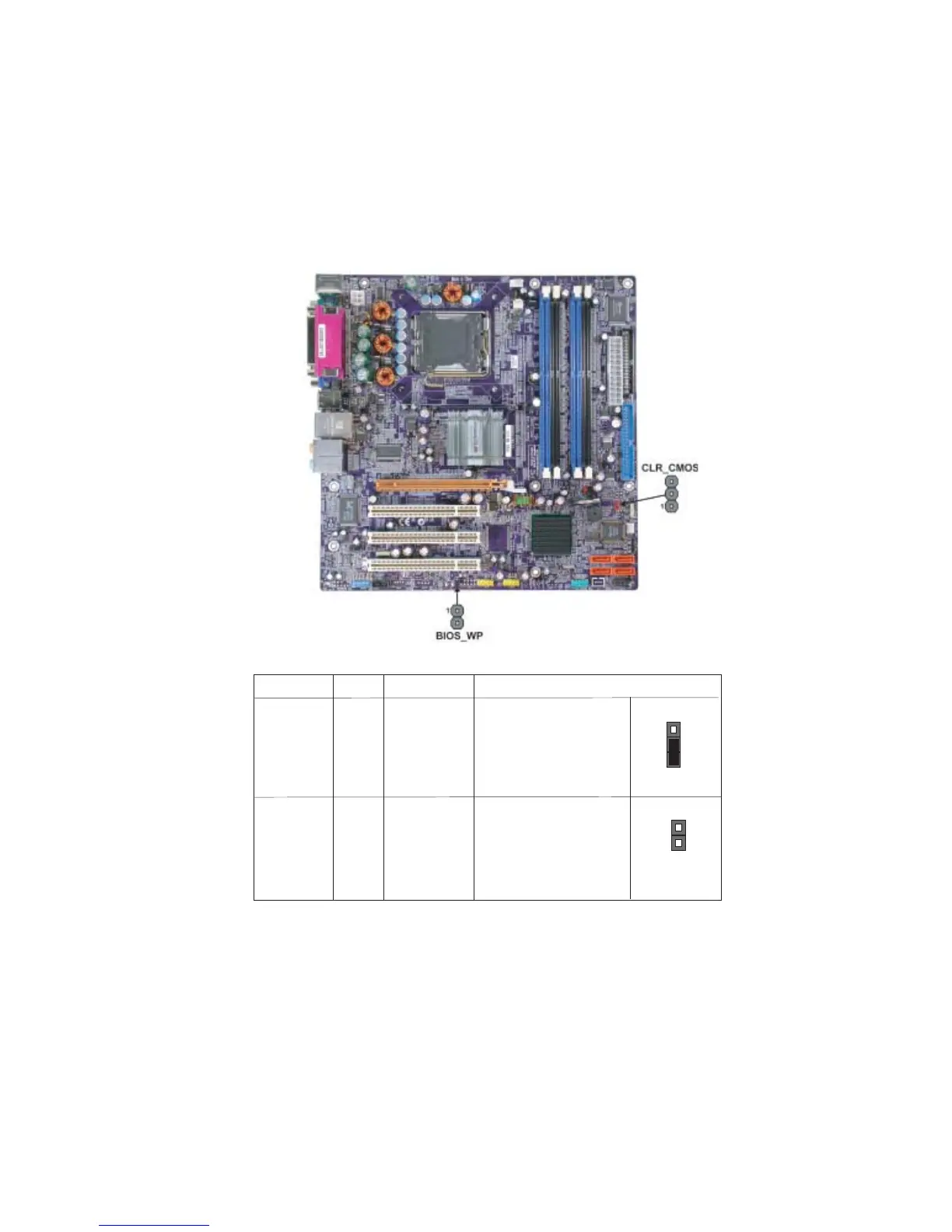

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
T
ype
Description
Setting (default)
CLR_CMOS
3-pin
Clear CMOS
1-2: CLEAR CMOS
2-3: NORMAL
Before clearing the
CMOS, make sure to
turn off the system.
BIOS_WP
2-pin
BIOS_WP
OPEN: FLASH WRITE
UNPROTECTED
SHOR
T
: FLASH WRITE
PROTECTED
CLR_CMOS
BIOS_WP
1
14
16
