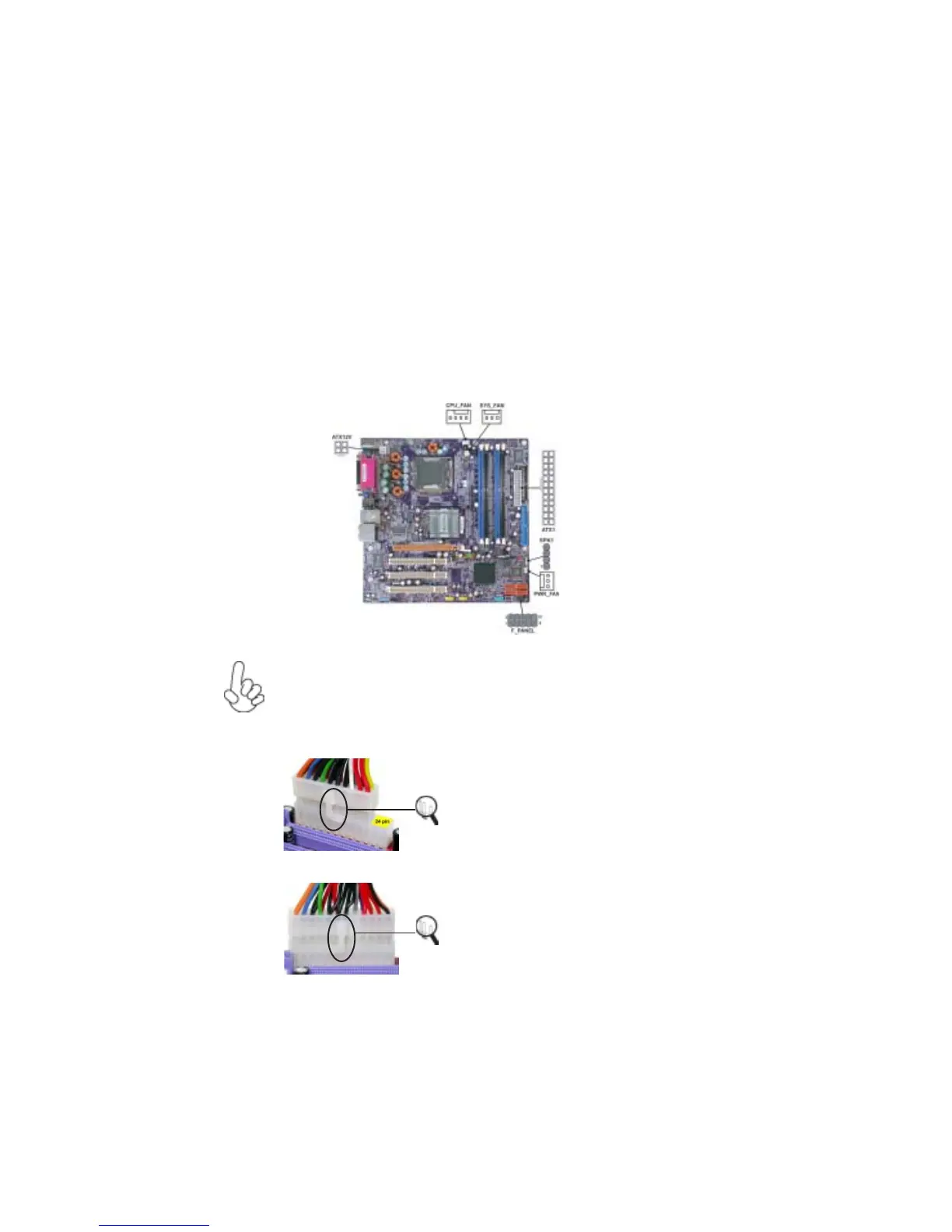

Installing the Motherboard
Connecting Case Components
After you have installed the motherboard into a case, you can begin con-
necting the motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the case cooling fan connector to SYS_FAN.
3 Connect the auxiliary power supply cooling fan connector to PWR_FAN.
3 Connect the case speaker cable to SPK1.
4 Connect the case switches and indicator LEDs to the F_PANEL.
6 Connect the standard power supply connector to ATX1.
7 Connect the auxiliary case power supply connector to ATX12V.
Connecting 20/24-pin power cable
Users please note that the 20-pin and 24-pin power cables can both be connected
to the ATX1 connector. With the 20-pin power cable, just align the 20-pin power
cable with the pin 1 of the ATX1 connector. However, using 20-pin power cable
may cause the system to become unbootable or unstable because of insufficient
electricity. A minimum power of 300W is recommended for a fully-configured
system
20-pin power cable
24-pin power cable
Users please note that when installing 20-
pin power cable, the latche of power cable
clings to the left side of the ATX1 connec-
tor latch, just as the picture shows.
Users please note that when installing 24-
pin power cable, the latches of power cable
clings to right side of the ATX1 connector.
