Installing the Motherboard
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect them to the
system bus. Expansion slots are a means of adding or enhancing the motherboard’s features
and capabilities. With these efficient facilities, you can increase the motherboard’s capabili-
ties by adding hardware that performs tasks that are not part of the basic system.

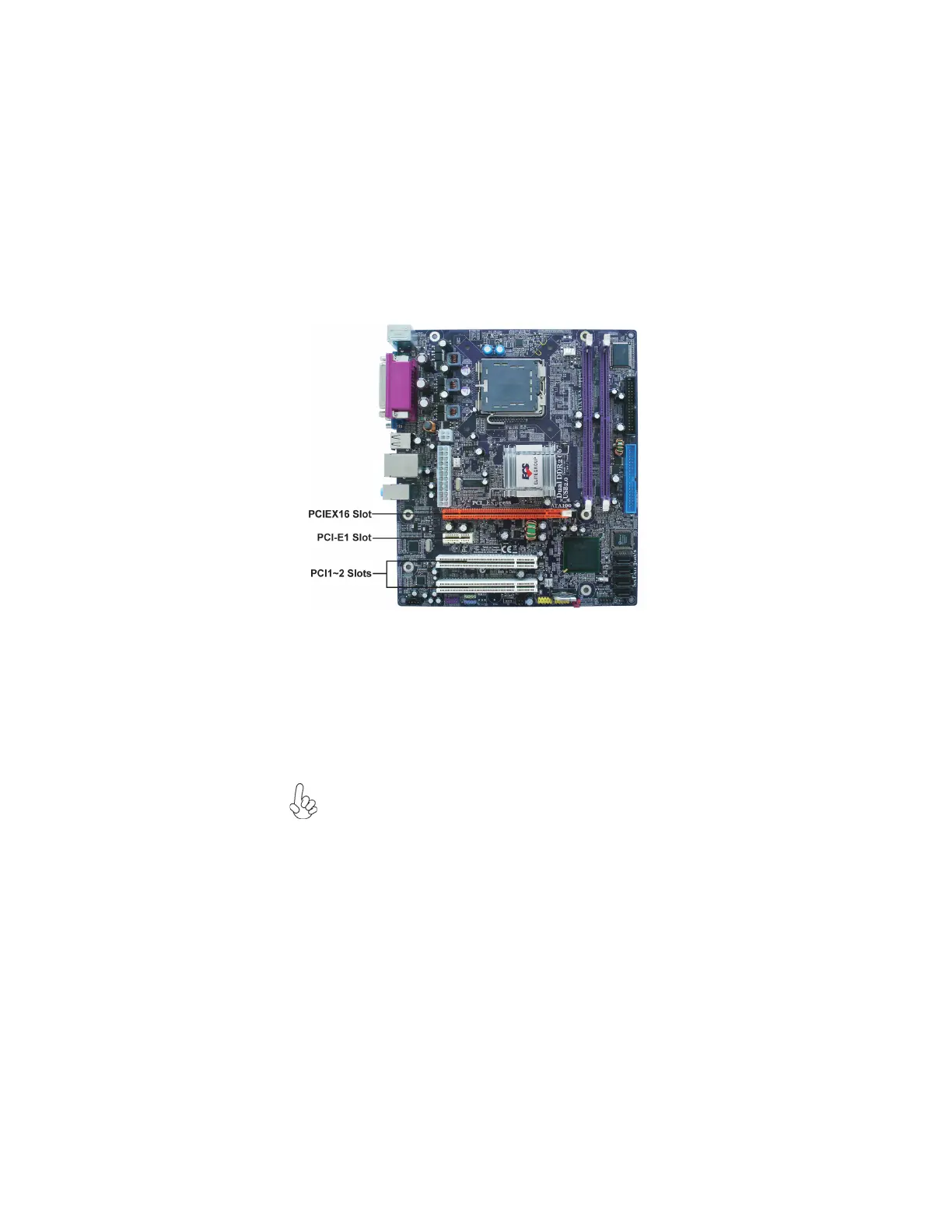

PCI-E1
slot
The PCI Express x1 slot is fully compliant to the PCI Express Base Specifi-
cation revision 1.0a.
Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually
configure the card before installation.
This motherboard is equipped with two standard PCI slots. PCI stands for
Peripheral Component Interconnect and is a bus standard for expansion
cards, which for the most part, is a supplement of the older ISA bus standard.
The PCI slots on this board are PCI v2.3 compliant.
PCI 1~2
Slots
PCIEX16
slot
The PCI Express x16 slot is fully compliant to the PCI Express Base Speci-
fication revision 1.1a.
