Chapter 2
15
B250H4-M20 USER
MANUAL

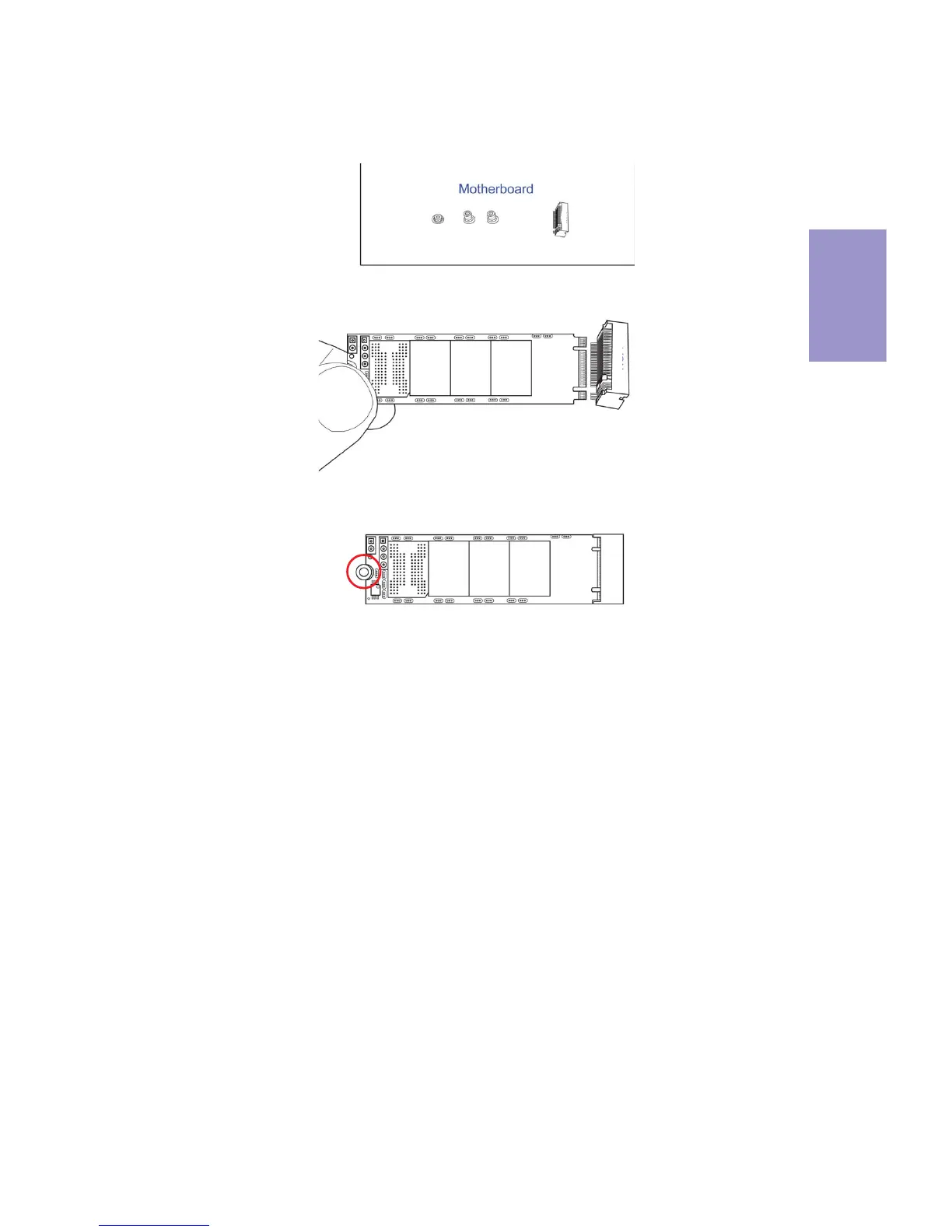

Please refer the following steps to install the M.2 SSD card:
1
Demount the screw not used according to the length of your M.2 SSD card.
2
Insert the M.2 SSD card into M2 slot in the f
ool-proof w
ay
.
3
Lock the screw as the following picture shows to make sure the M.2 SSD
card is installed in place.
M2
M2
M2
19
21
