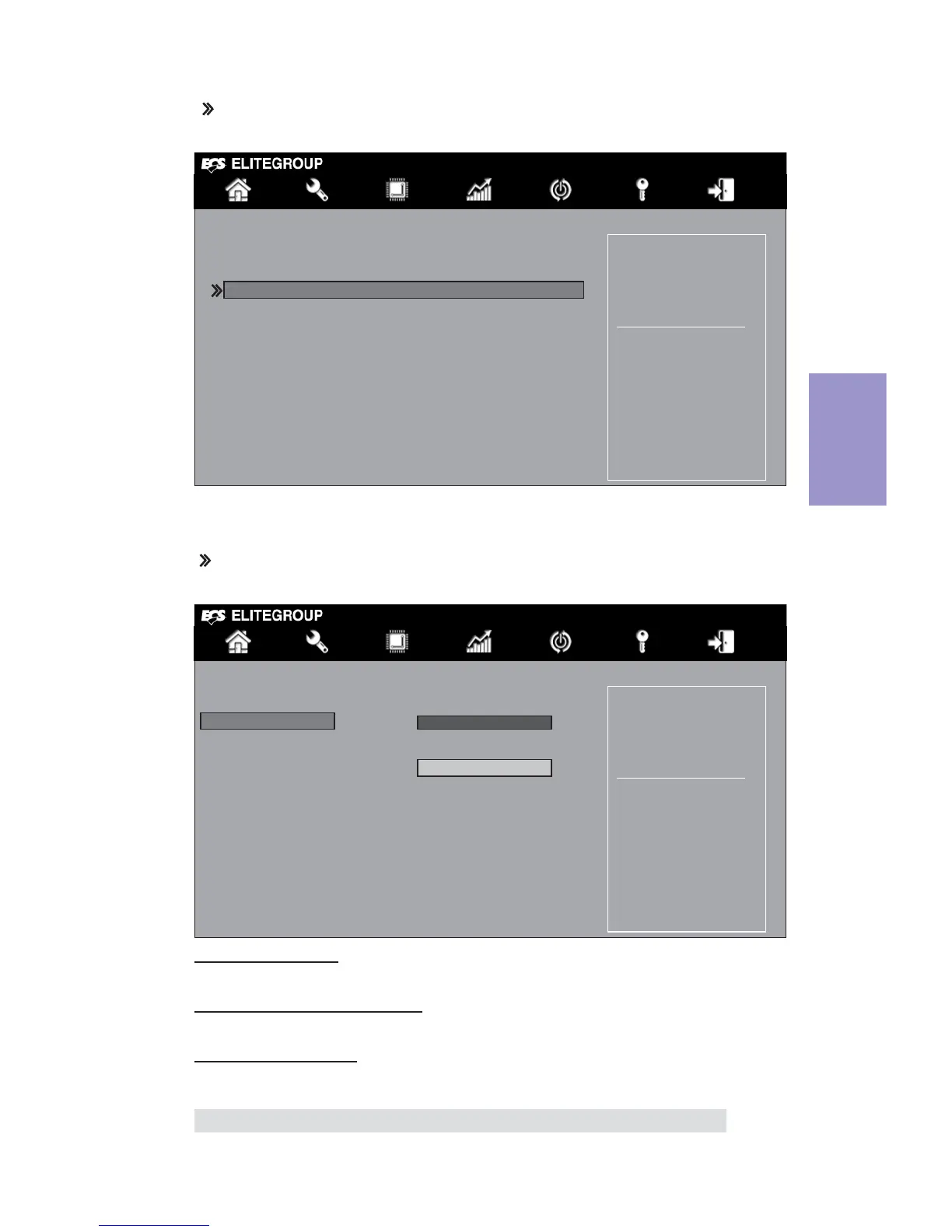

Super IO Configuration
Use this item to show the information of Super IO configuration.
Super IO Chip (IT8613)
This item shows the information of the super IO chip.
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Set Parameters of Serial
Port 1 (COMA)
Super IO Configuration
Super IO Chip IT8613
Serial Port 1 Configuration
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Serial Port 1 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enable or Disable Serial
Port (COM)
Serial Port 1 Configuration
Serial Port Enabled
Device Settings IO=3F8h; IRQ=4;
Change Settings Auto
Press <Esc> to return to the Super IO Configuration page.
